Cooler Master V-Series V750 SFX Gold
750 W · 80 PLUS Gold · SFX 3.42, ATX 3.1
Specifications
| Wattage | 750 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | SFX 3.42, ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | SFX |
| Warranty | 10 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Other Features | ErP Lot 6 Supports Haswell C6/C7 low-power states 12V-2x6 cable with 90° angled connector Includes SFX to ATX PSU adapter |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 125 mm |
|---|---|
| Depth | 100 mm |
| Height | 64 mm |
| Weight | 1.42 kg |
| Color | Black |

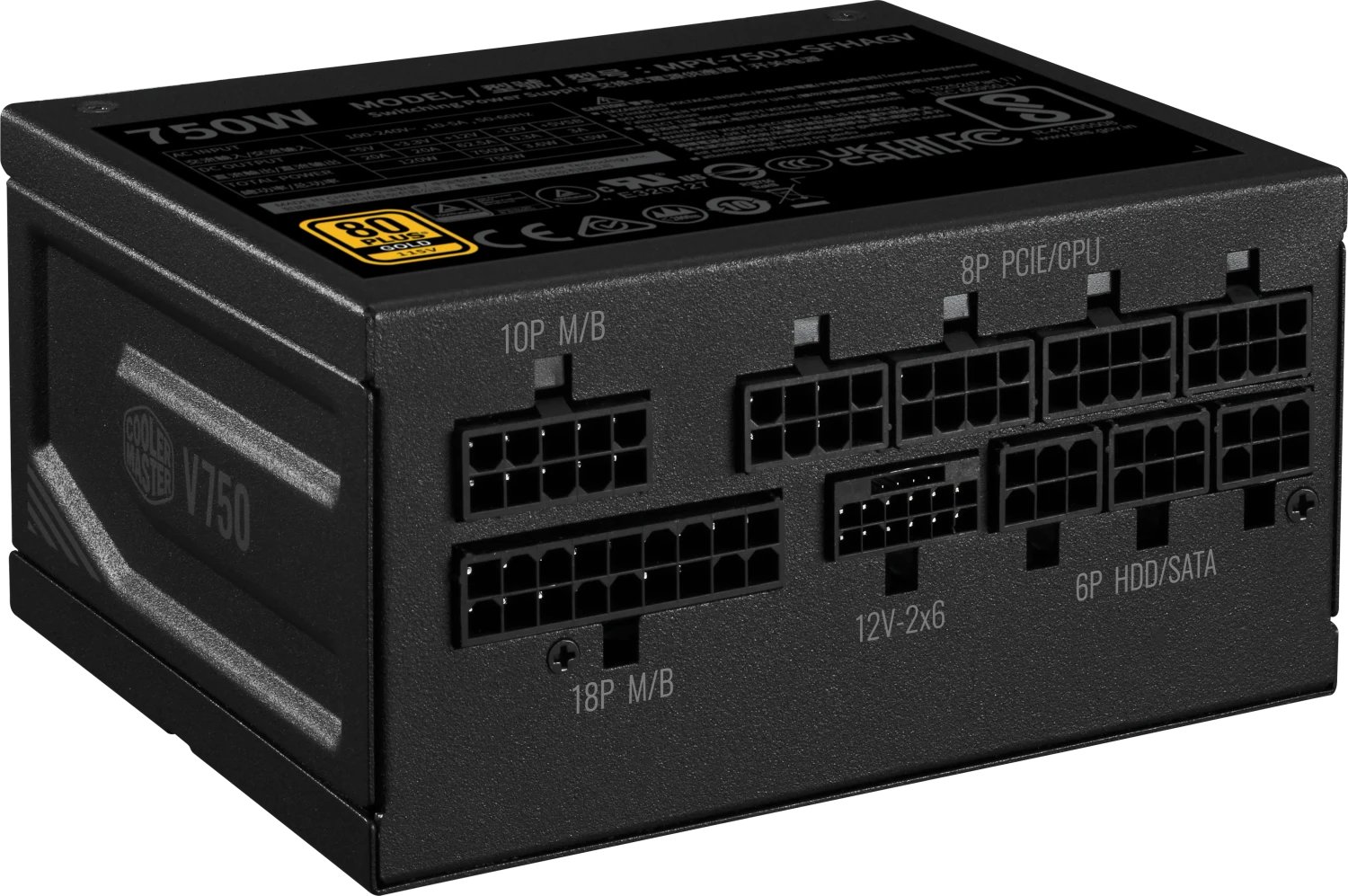

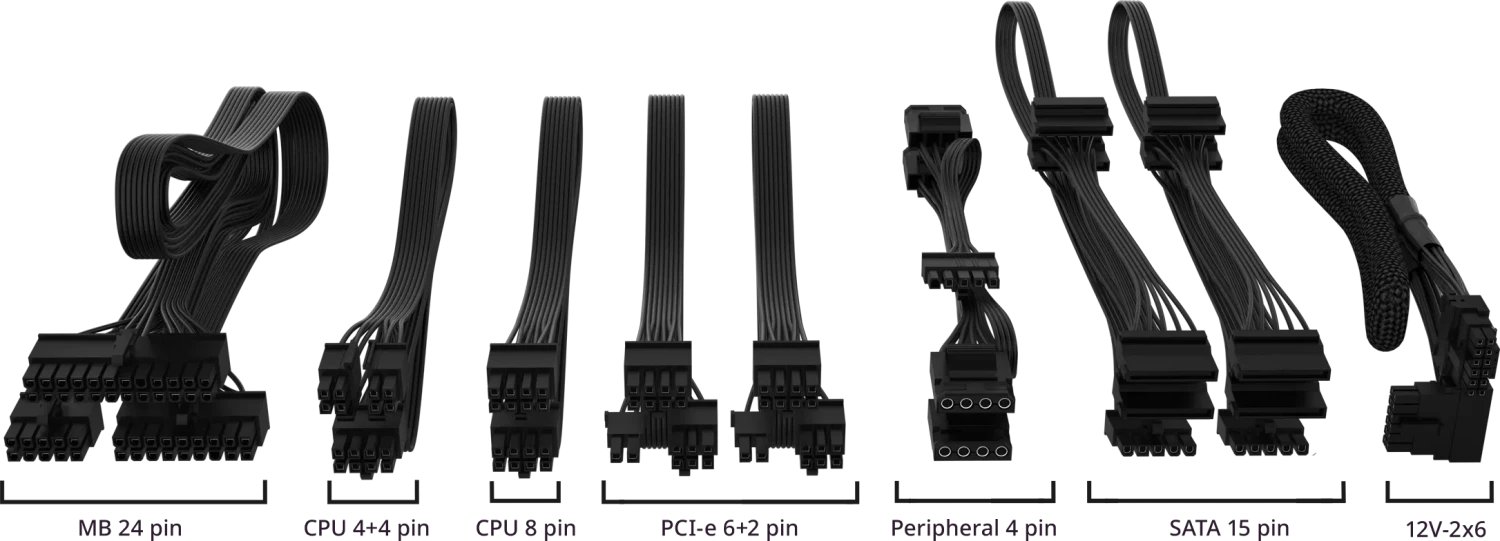

Cables and Connectors
| IDE / Molex | 4× |
|---|---|
| SATA | 8× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| · manufacturer | 90% |
|---|---|
| 115V · 80plus_official | 91% |
| 115V · cybenetics | 88.85% |
| 230V · cybenetics | 91.12% |
Noise
| 115V · cybenetics | 37.51 dB(A) |
|---|---|
| 230V · cybenetics | 36.82 dB(A) |
Fan
| Fan size | 92 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
