Cooler Master V-Series V850 SFX Gold
850 W · 80 PLUS Platinum · SFX 3.42, ATX 3.1
Specifications
| Wattage | 850 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Standard | SFX 3.42, ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | SFX |
| Color | Black |
| Dimensions (W×D×H) | 125 × 100 × 64 mm |
| Weight | 1.42 kg |
| PFC | Active |
| Warranty | 10 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Features | ErP Lot 6, Supports Haswell C6/C7 low-power states, 12V-2x6 cable with 90° angled connector, Includes SFX to ATX PSU adapter |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder

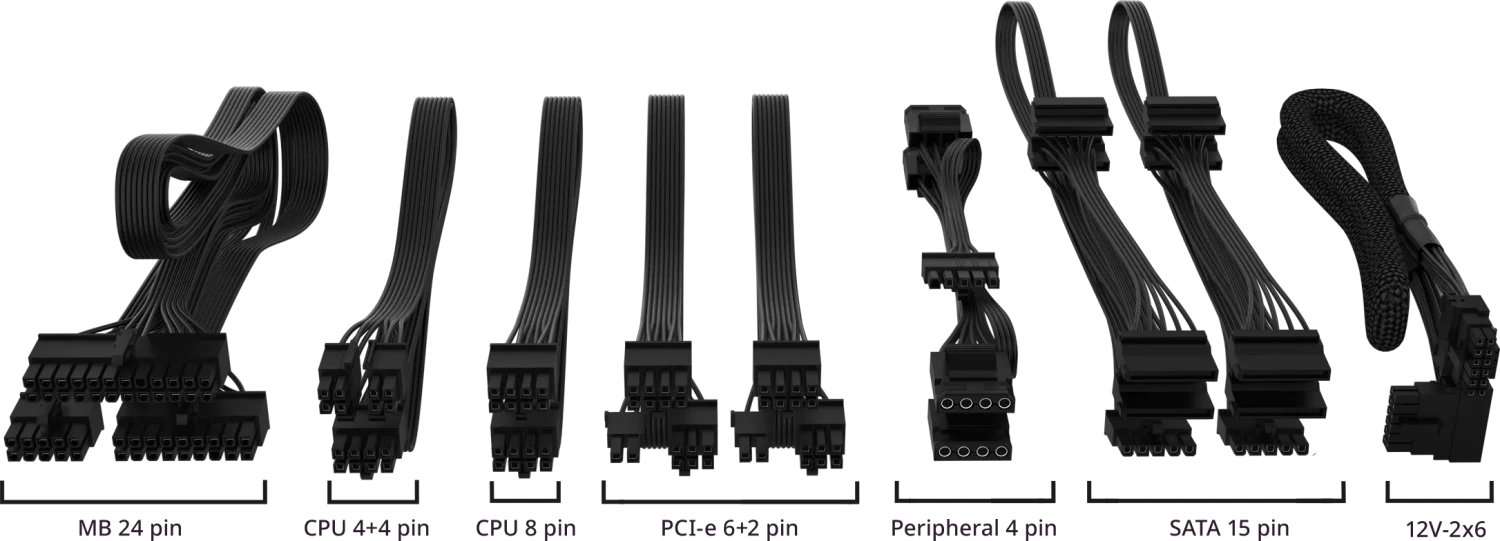

Cables and Connectors
| IDE / Molex | 4× |
|---|---|
| SATA | 8× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 2× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| · manufacturer | 90% |
|---|---|
| 115V · 80plus_official | 91% |
| 115V · cybenetics | 88.52% |
| 230V · cybenetics | 91.02% |
Noise
| 115V · cybenetics | 37.32 dB(A) |
|---|---|
| 230V · cybenetics | 37.09 dB(A) |
Fan
| Fan size | 92 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
