Formula V Line FV WD Series FV-650WD

650 W · 80 PLUS · ATX 2.52

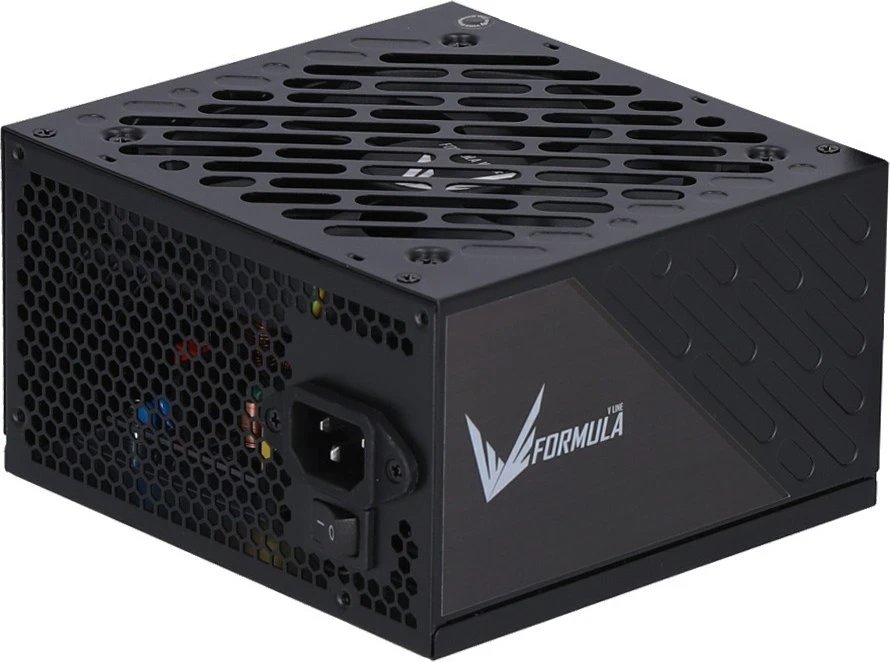

Formula V Line FV WD Series FV-650WD product image

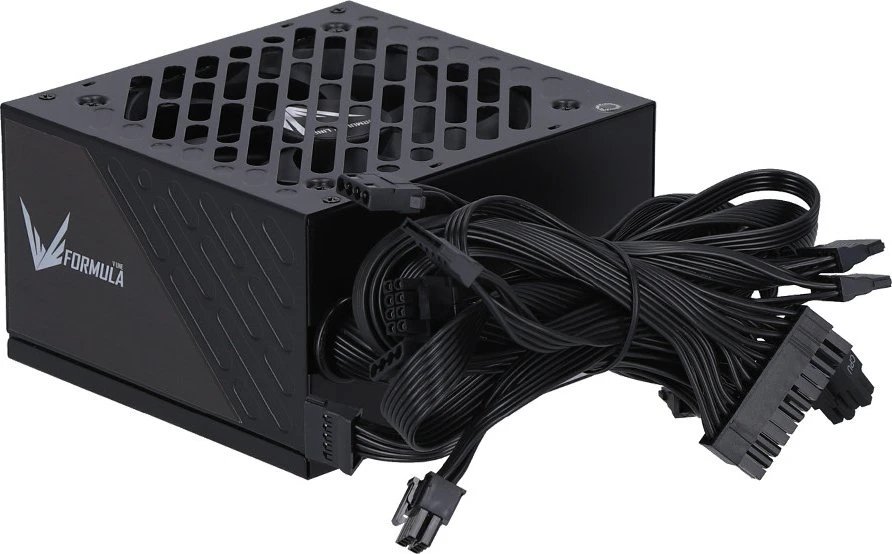

Formula V Line FV WD Series FV-650WD product image 1Formula V Line FV WD Series FV-650WD product image 2

Specifications

Wattage650 W
80 PLUS Certification80 PLUS
ATX StandardATX 2.52
Cable designNon-modular
Form FactorATX PS/2
Warranty3 years
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width150 mm
Depth140 mm
Height86 mm
Weight1.66 kg
ColorBlack

Cables and Connectors

IDE / Molex2×
SATA6×
PCIe 6+2-pin2×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

· 80plus_official77.35%

Fan

Fan size120 mm
Operating modeAlways on
