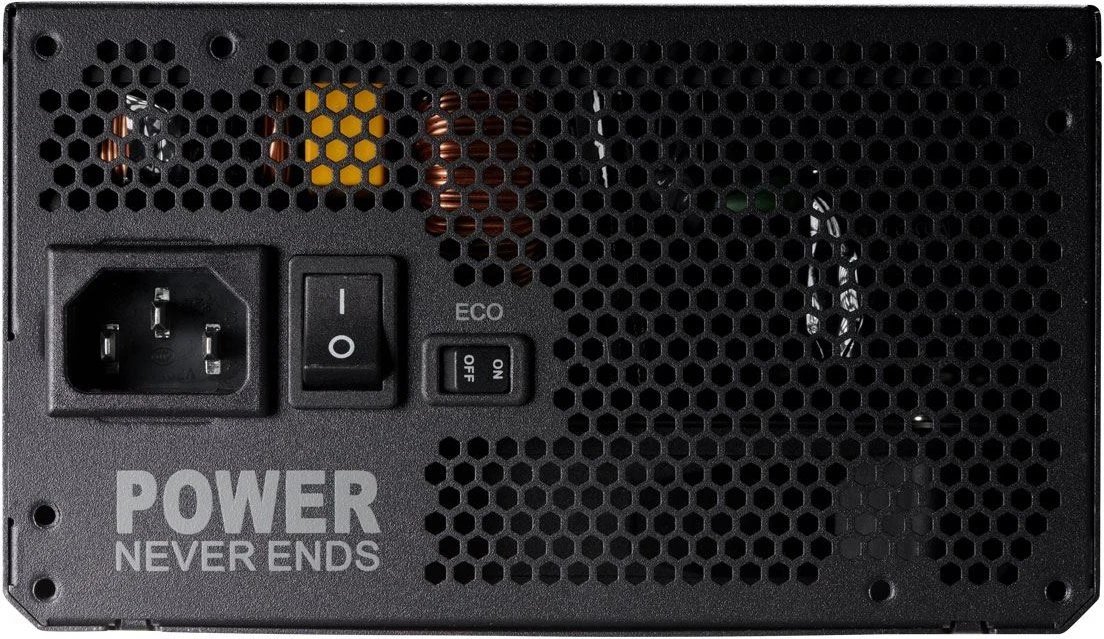

FSP ADVAN GM
1000 W · 80 PLUS Gold · ATX 3.1
Specifications
| Wattage | 1000 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Color | Black |
| Dimensions (W×D×H) | 150 × 140 × 86 mm |
| PFC | Active |
| Warranty | 10 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Features | ErP Lot 6, Semi-passive mode switchable |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder

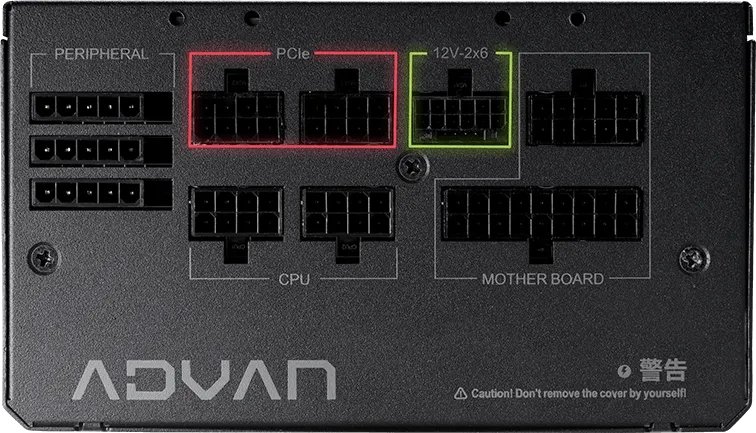

Cables and Connectors
| IDE / Molex | 4× |
|---|---|
| SATA | 8× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 86.22% |
|---|---|
| 115V · cybenetics | 87.74% |
| 230V · cybenetics | 89.89% |
Noise
| 115V · cybenetics | 31.98 dB(A) |
|---|---|
| 230V · cybenetics | 32.16 dB(A) |
Fan
| Fan size | 120 mm |
|---|---|
| Operating mode | Always on |
