Gigabyte P550SS ICE

550 W · 80 PLUS Silver · ATX 3.0

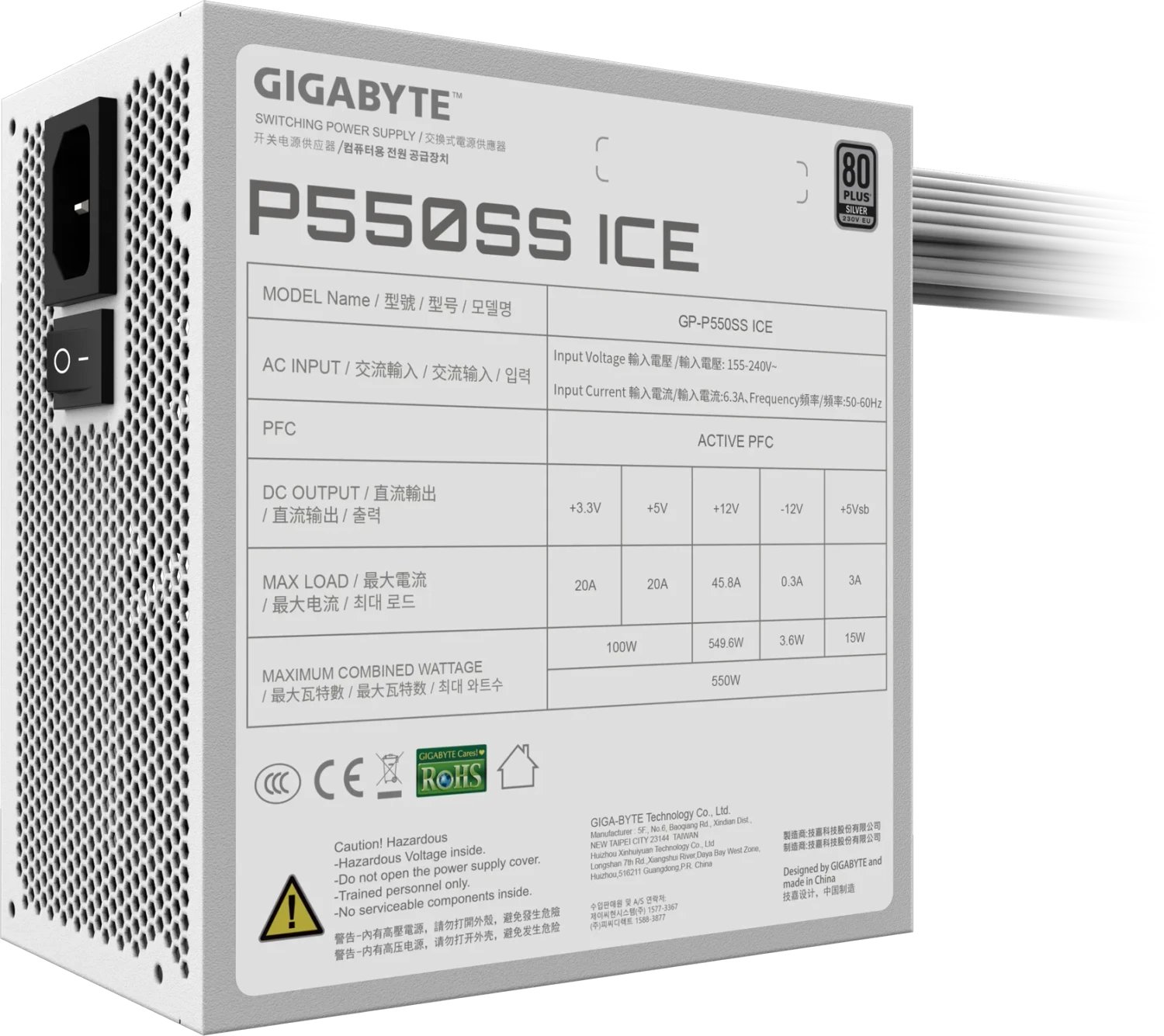

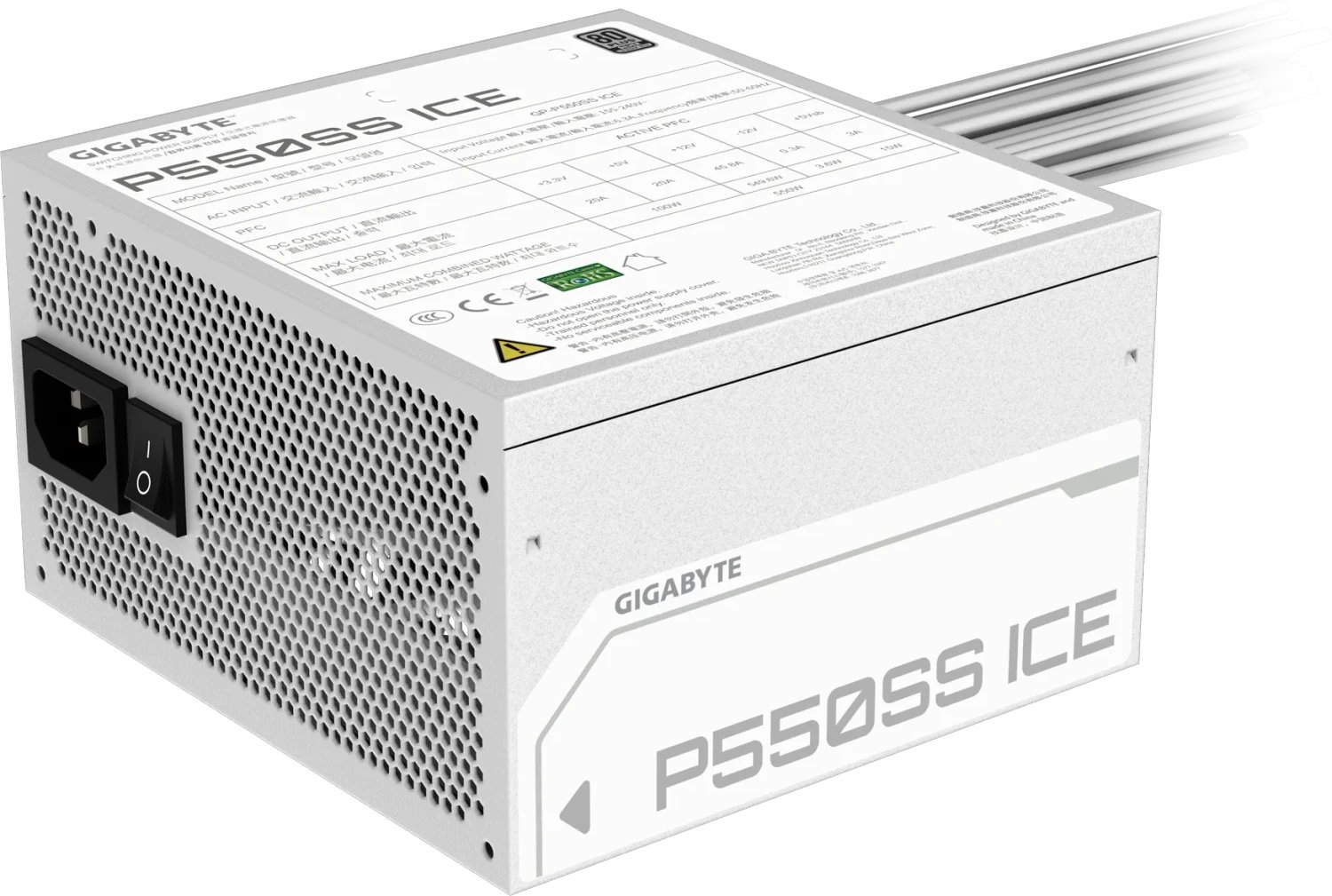

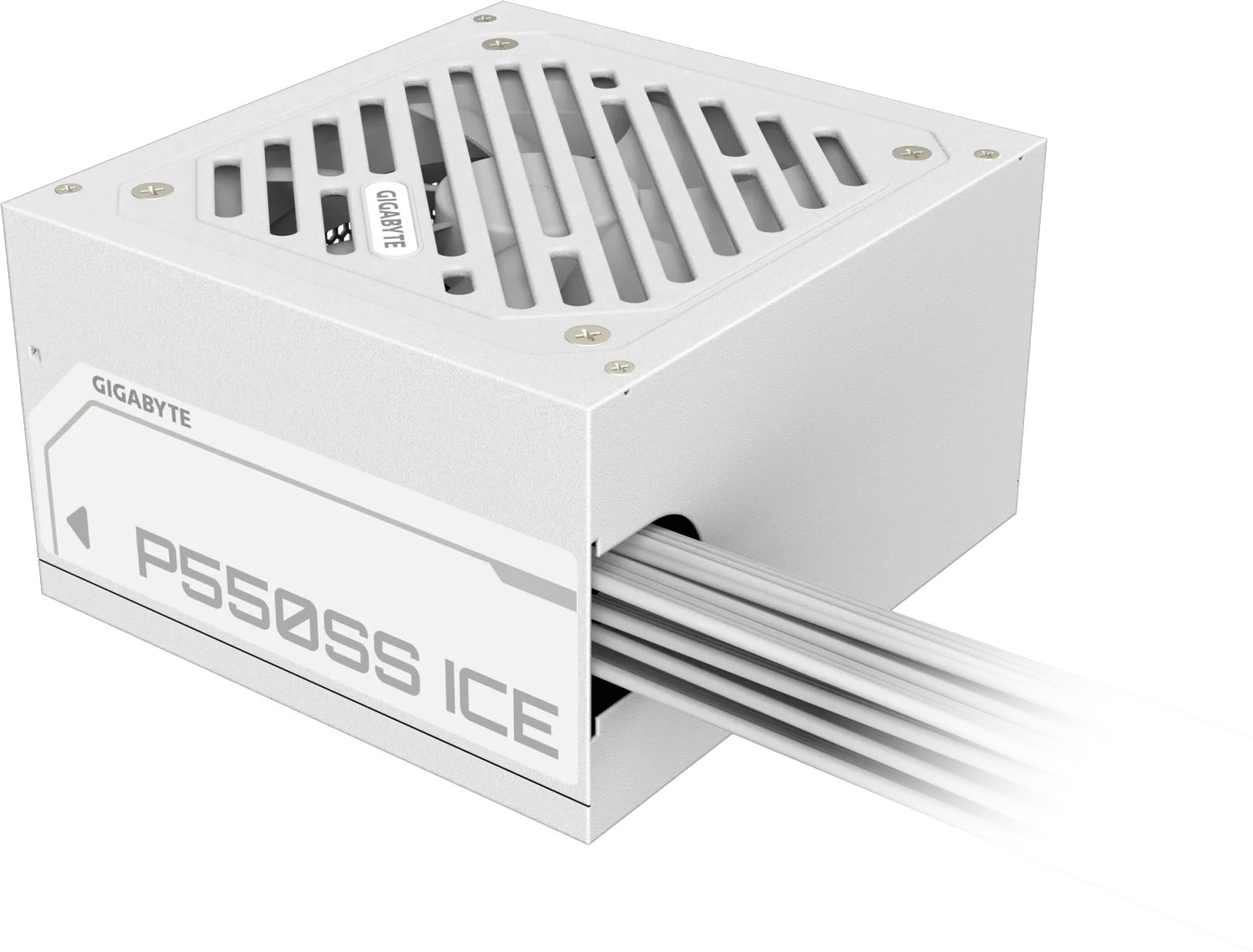

Gigabyte P550SS ICE product image
Gigabyte P550SS ICE product image 1Gigabyte P550SS ICE product image 2Gigabyte P550SS ICE product image 3

Specifications

Wattage550 W
80 PLUS Certification80 PLUS Silver
ATX StandardATX 3.0
Cable designNon-modular
Form FactorATX PS/2
ColorWhite
Dimensions (W×D×H)150 × 140 × 86 mm
PFCActive
Warranty3 years
FeaturesErP Lot 6, White Build compatible
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Cables and Connectors

IDE / Molex3×
SATA5×
PCIe 6+2-pin2×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

· 80plus_official85.76%

Fan

Fan size120 mm
Operating modeSemi-passive (stops at low load)
