Gigabyte UD1300GM PG5

1300 W · 80 PLUS Platinum · ATX 3.0

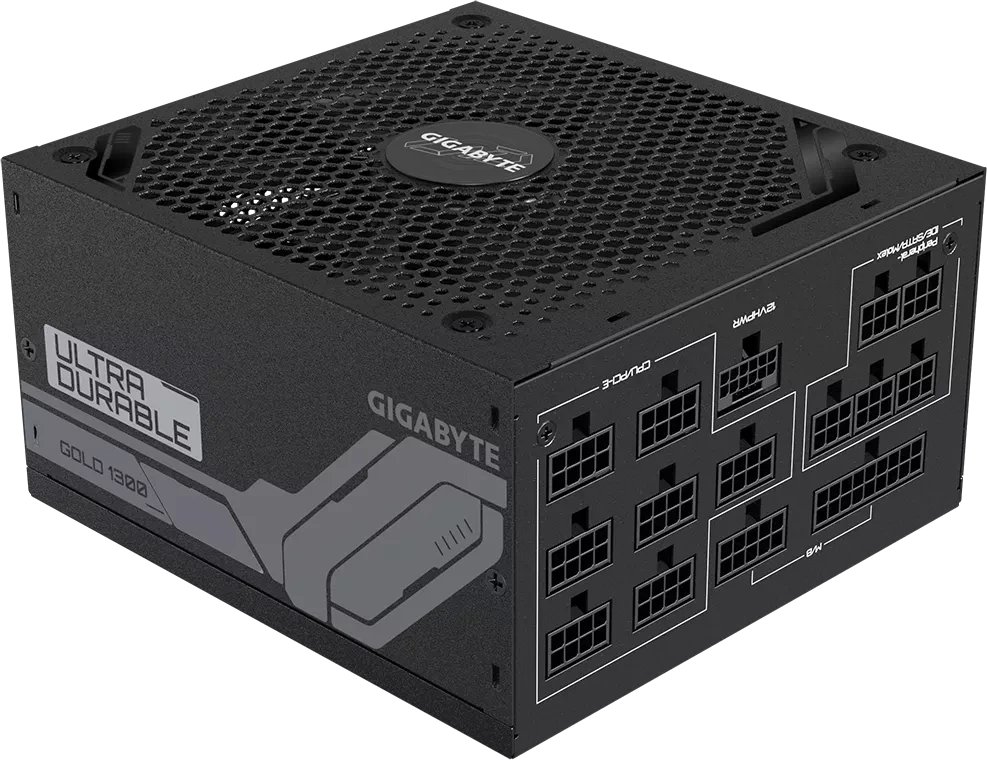

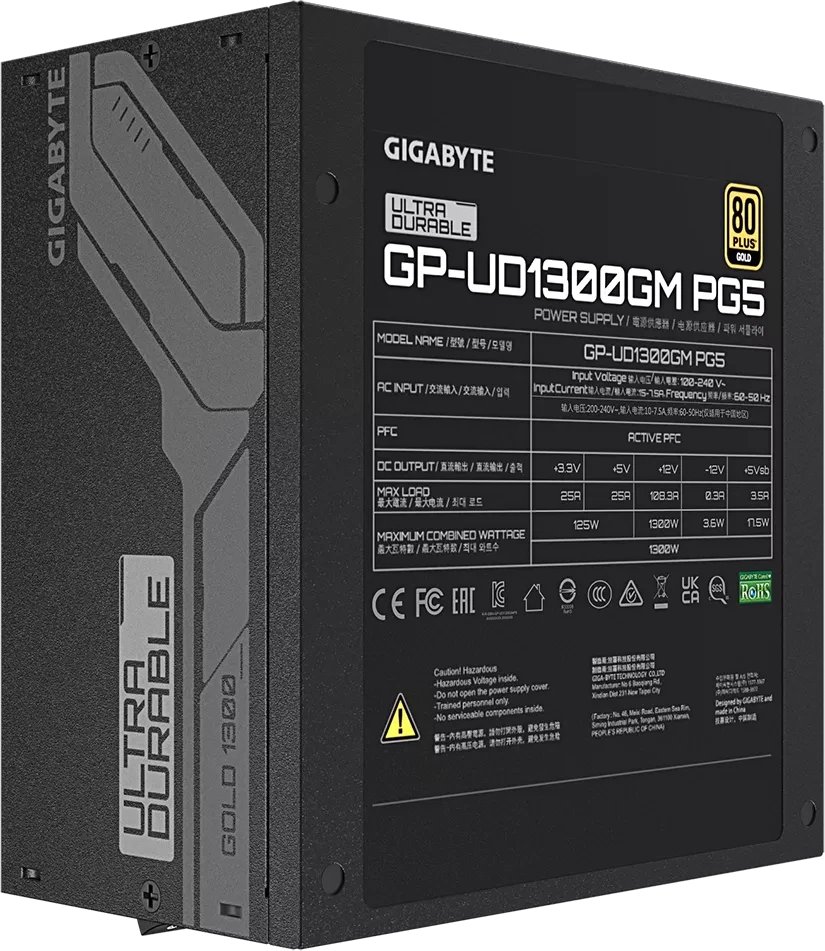

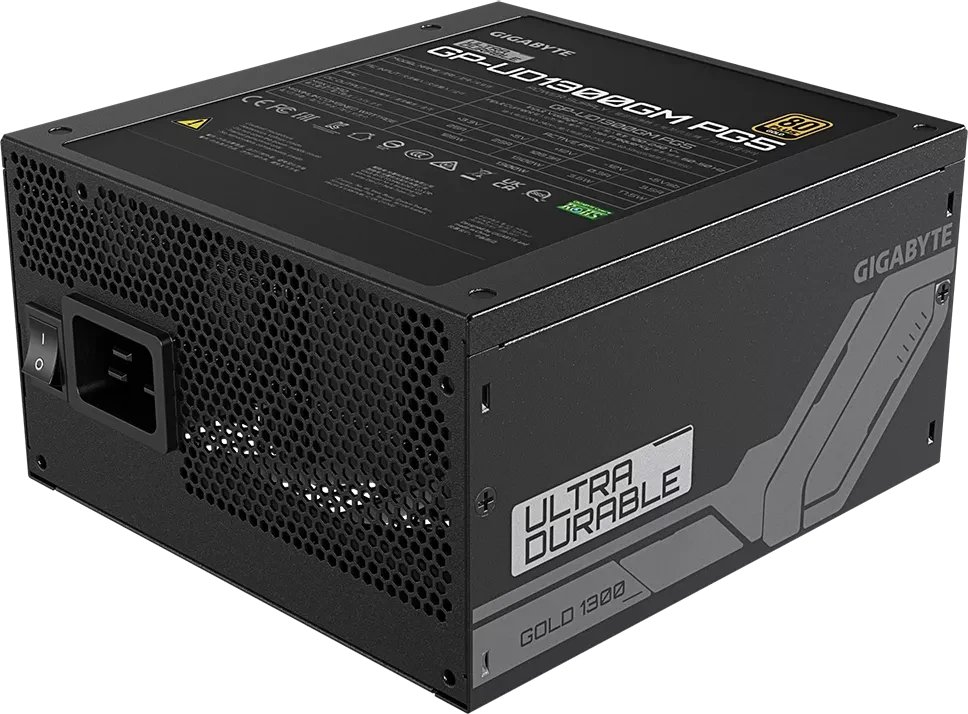

Gigabyte UD1300GM PG5 product image
Gigabyte UD1300GM PG5 product image 1Gigabyte UD1300GM PG5 product image 2Gigabyte UD1300GM PG5 product image 3Gigabyte UD1300GM PG5 product image 4

Specifications

Wattage1300 W
80 PLUS Certification80 PLUS Platinum
ATX StandardATX 3.0
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 160 × 86 mm
PFCActive
Warranty10 years
Graphics card connector1× 12VHPWR (via adapter)
FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

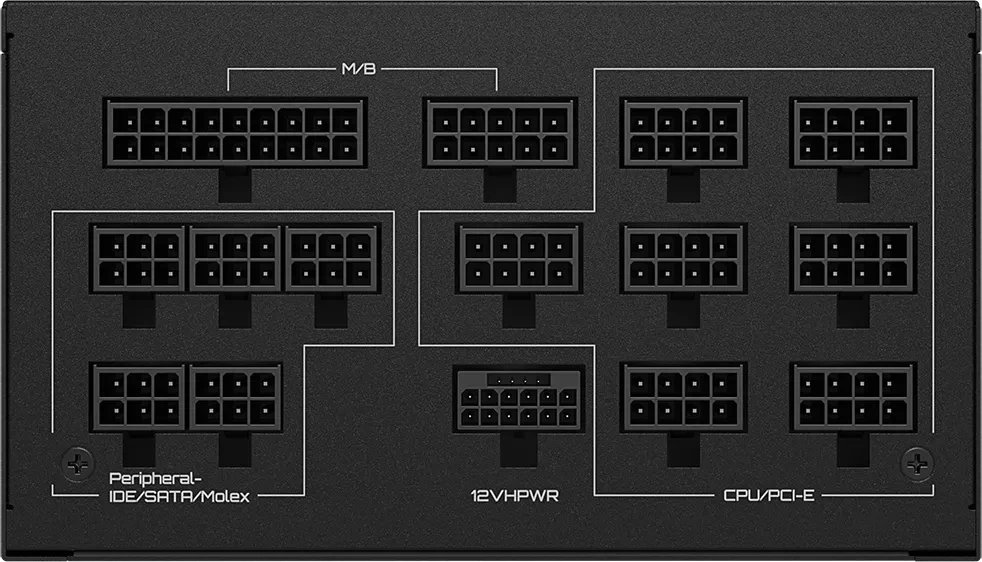

Cables and Connectors

IDE / Molex6×
SATA12×
Floppy2×
PCIe 6+2-pin8×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Efficiency

· manufacturer90%
115V · 80plus_official90.65%

Fan

Fan size140 mm
Operating modeSemi-passive (stops at low load)
