Gigabyte UD1600PM PG5 AI TOP

1600 W · 80 PLUS Platinum · ATX 3.1

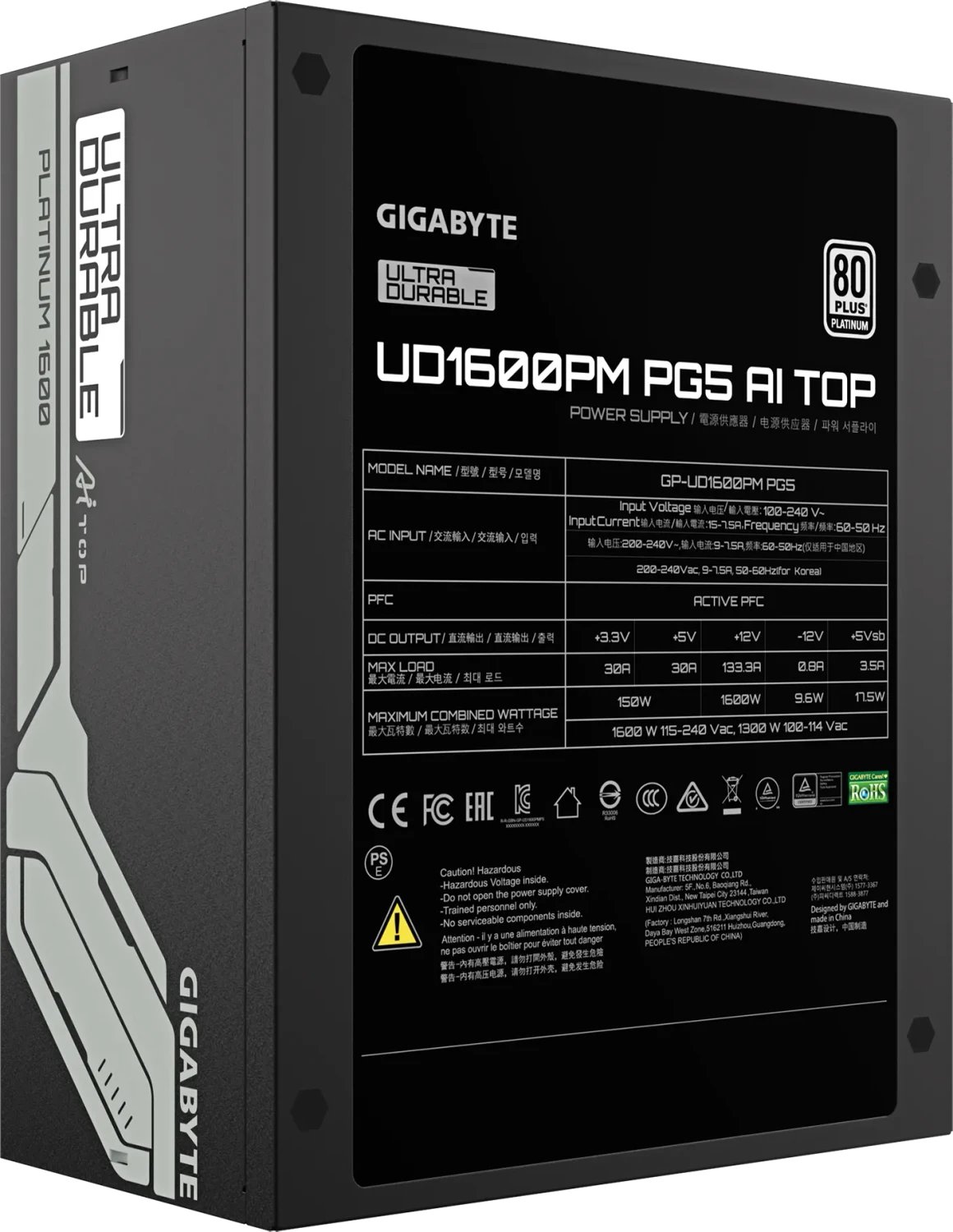

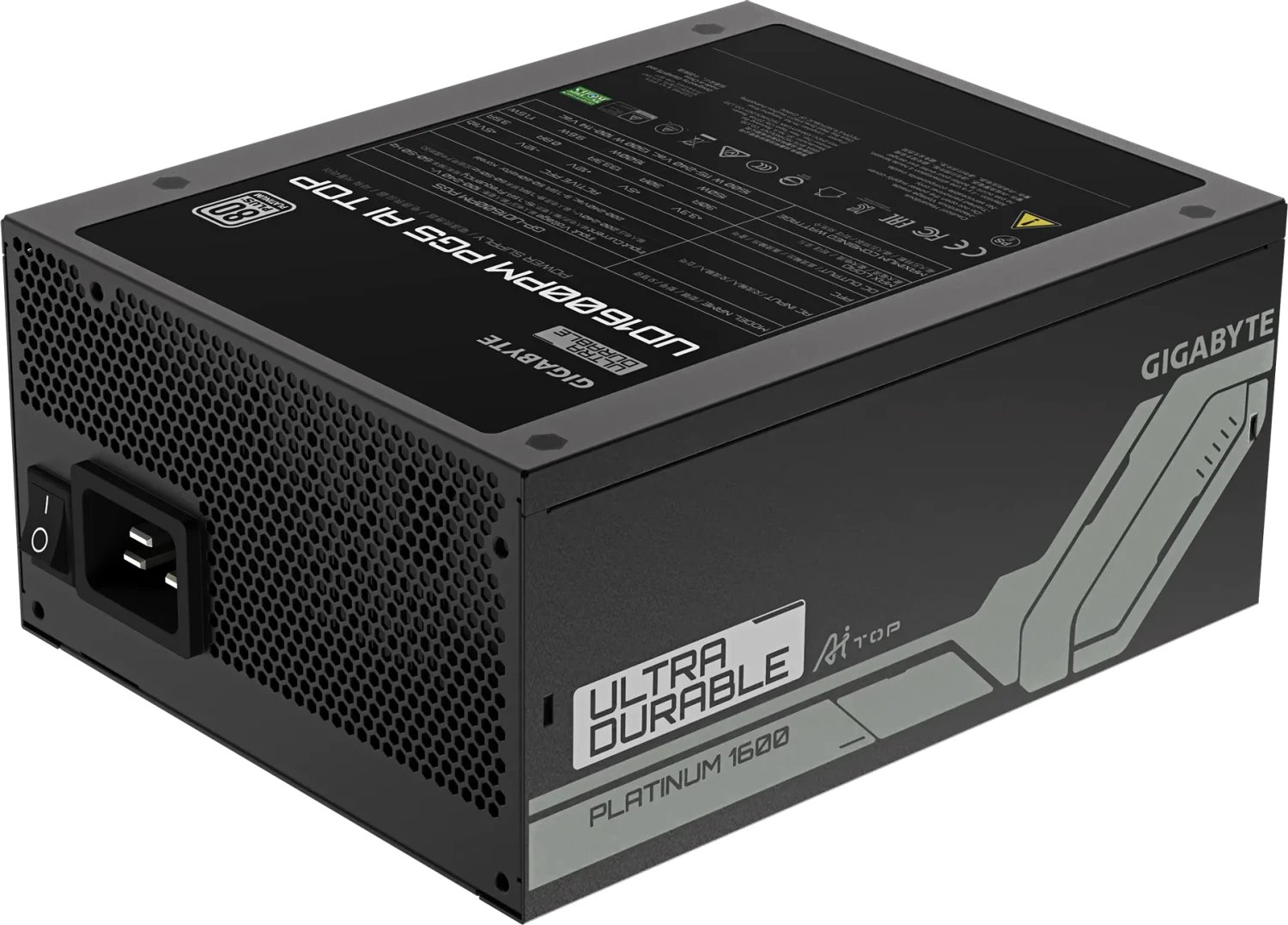

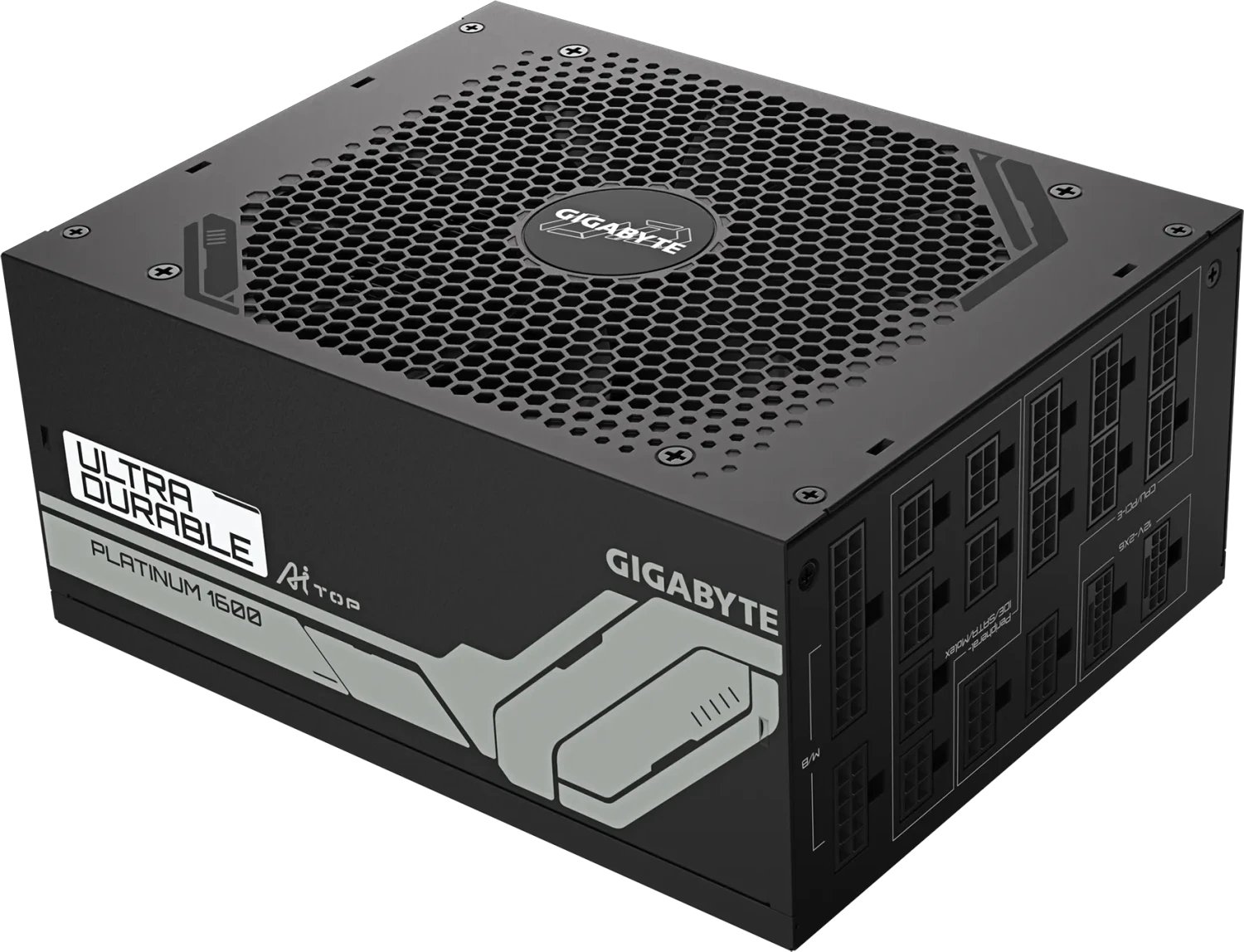

Gigabyte UD1600PM PG5 AI TOP product image
Gigabyte UD1600PM PG5 AI TOP product image 1Gigabyte UD1600PM PG5 AI TOP product image 2Gigabyte UD1600PM PG5 AI TOP product image 3Gigabyte UD1600PM PG5 AI TOP product image 4

Specifications

Wattage1600 W
80 PLUS Certification80 PLUS Platinum
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 190 × 86 mm
PFCActive
Warranty10 years
Graphics card connector2× 12V-2x6 (native) · 600 W
FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

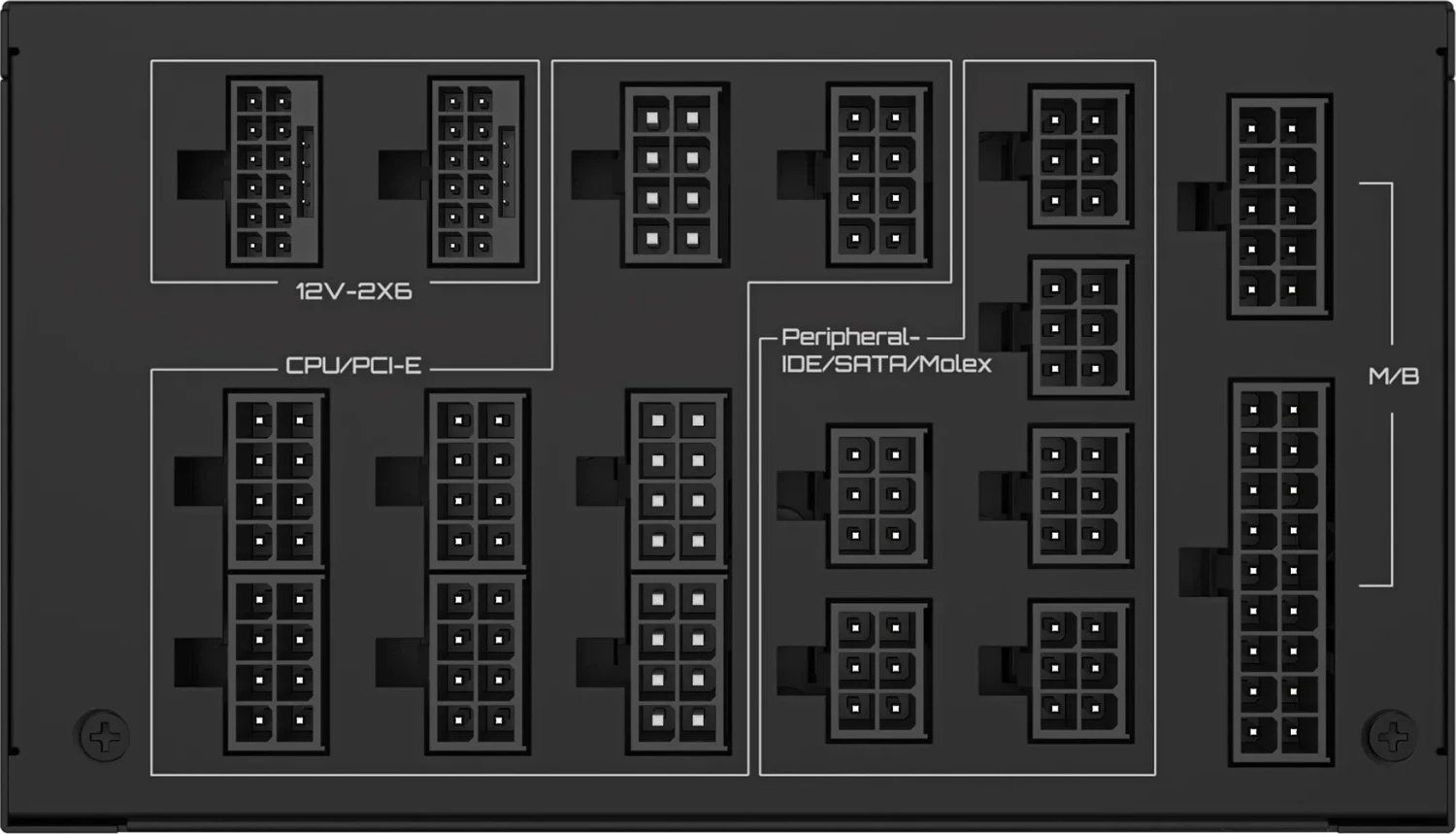

Cables and Connectors

IDE / Molex6×
SATA16×
Floppy2×
PCIe 6+2-pin10×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Efficiency

· manufacturer92%
115V · 80plus_official89.41%

Fan

Fan size140 mm
Operating modeSemi-passive (stops at low load)
