Gigabyte UD750GM PG5 V2 ICE

750 W · 80 PLUS Gold · ATX 3.1

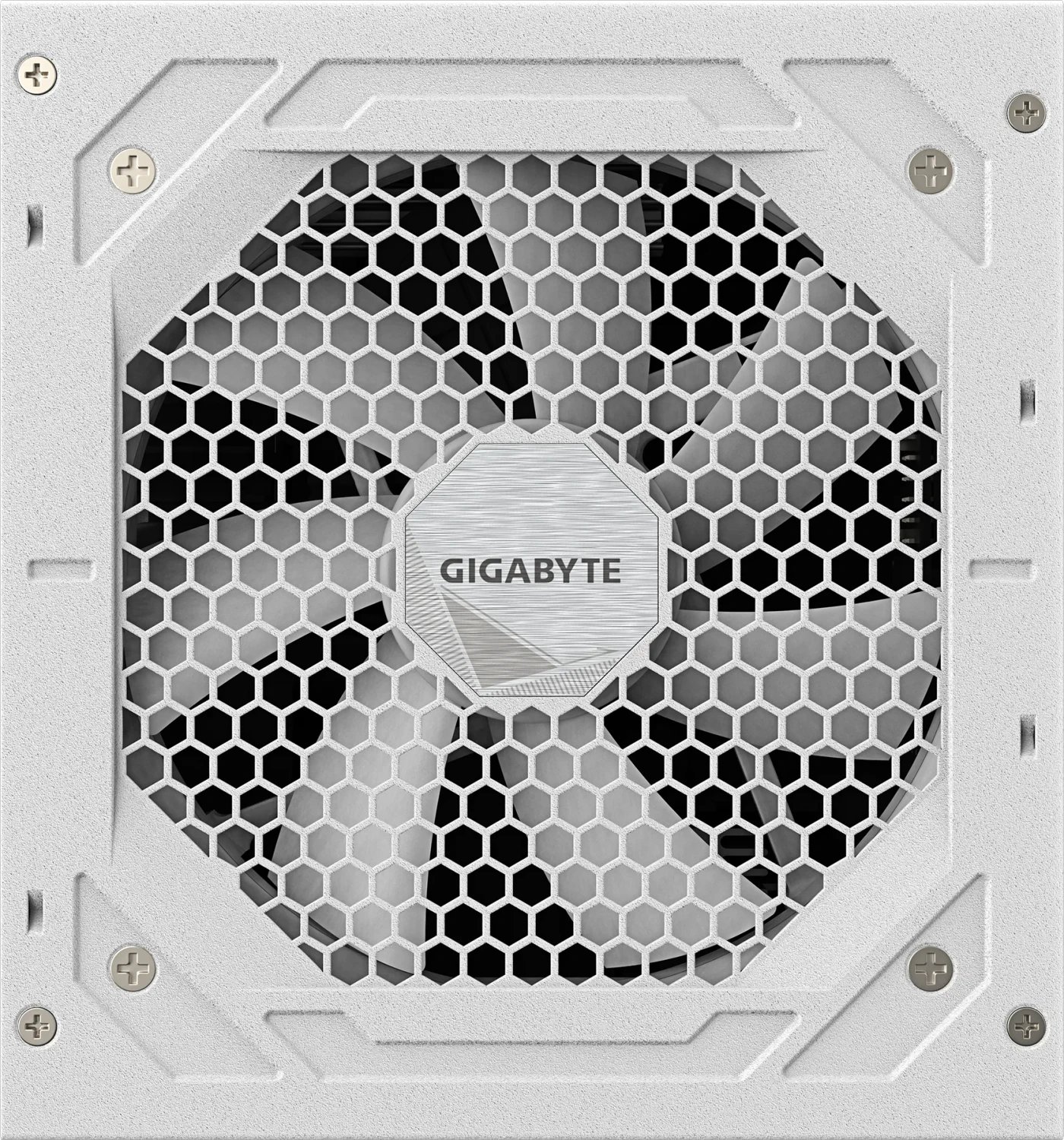

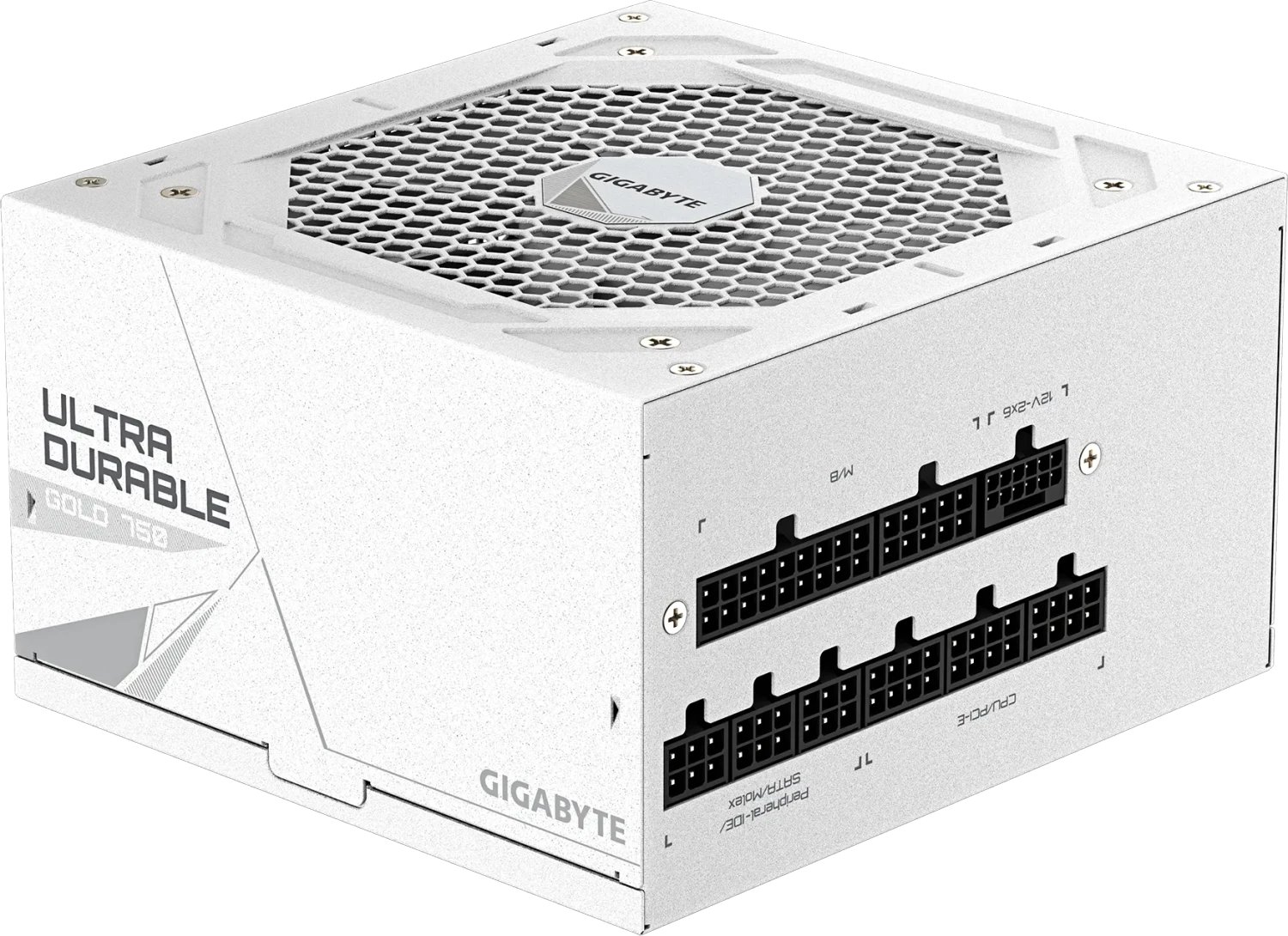

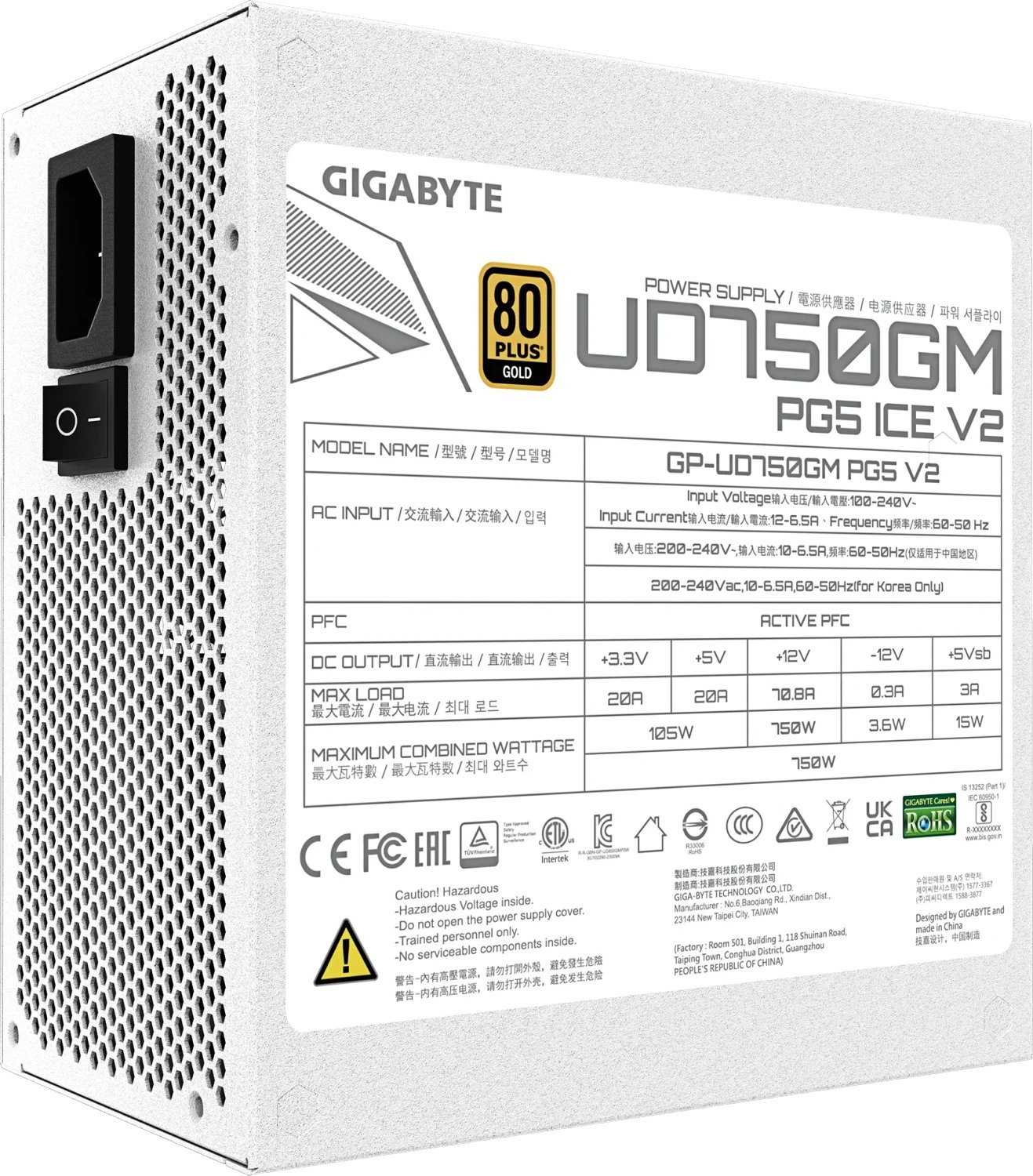

Gigabyte UD750GM PG5 V2 ICE product image
Gigabyte UD750GM PG5 V2 ICE product image 1Gigabyte UD750GM PG5 V2 ICE product image 2Gigabyte UD750GM PG5 V2 ICE product image 3

Specifications

Wattage750 W
80 PLUS Certification80 PLUS Gold
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorWhite
Dimensions (W×D×H)150 × 140 × 86 mm
PFCActive
Warranty5 years
FeaturesErP Lot 6, White Build compatible
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Cables and Connectors

IDE / Molex3×
SATA8×
Floppy1×
PCIe 6+2-pin4×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Efficiency

115V · 80plus_official87.47%

Fan

Fan size120 mm
Operating modeSemi-passive (stops at low load)
