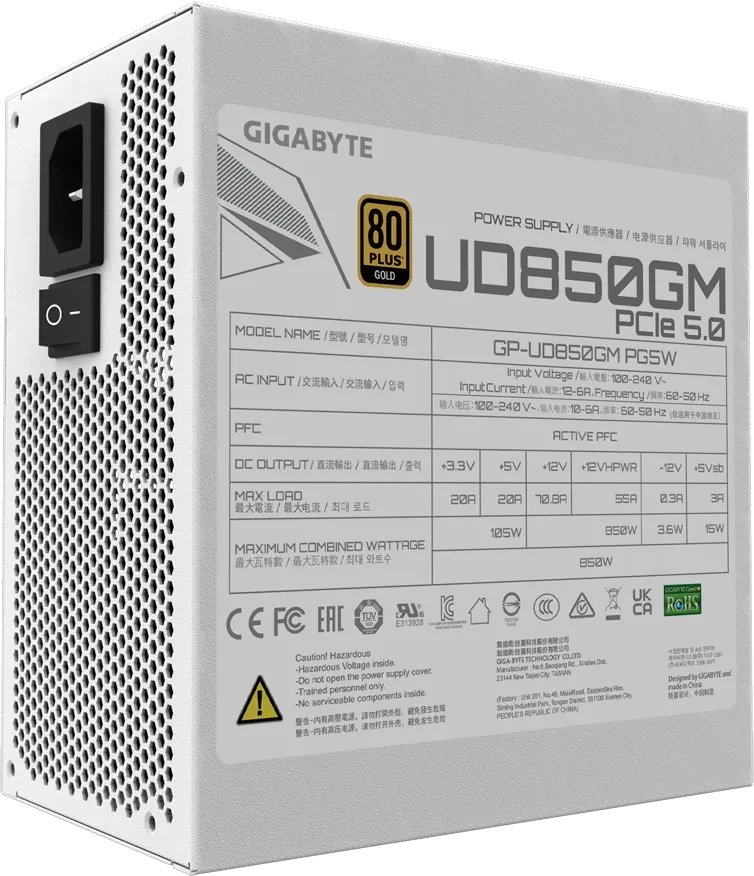

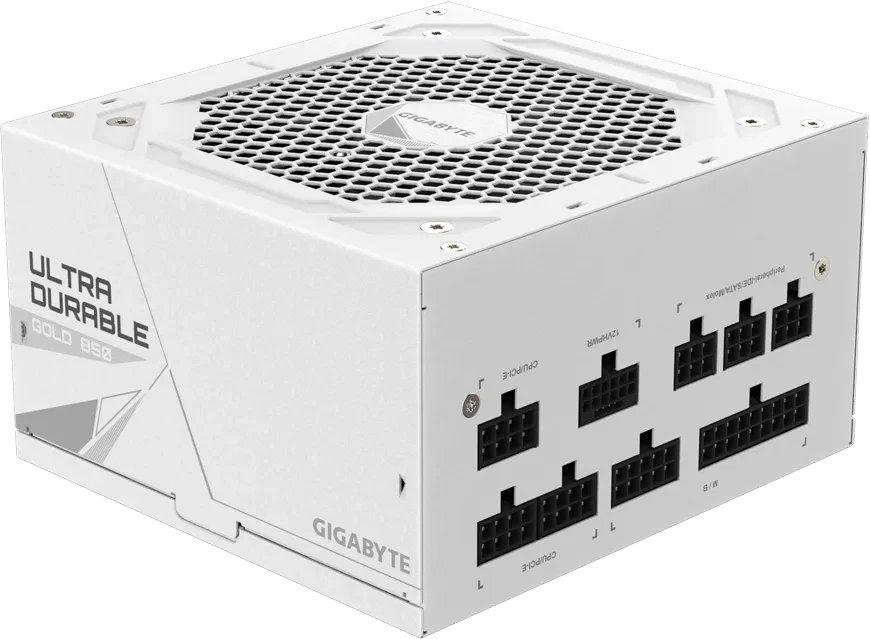

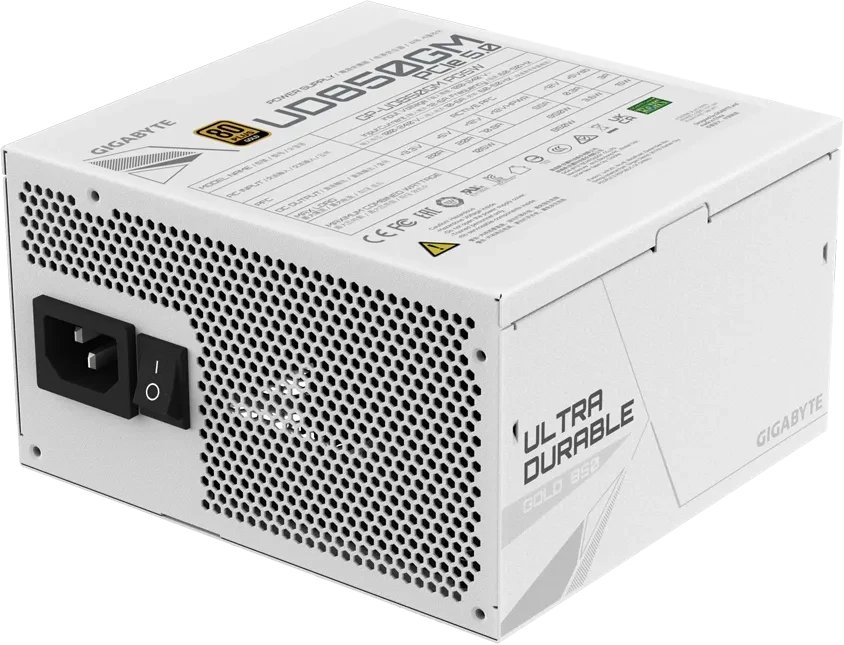

Gigabyte UD850GM PG5W
850 W · 80 PLUS Gold · ATX 3.0
Specifications
| Wattage | 850 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | ATX 3.0 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 5 years |
| Graphics card connector | 1× 12VHPWR (via adapter) |
| Other Features | ErP Lot 6 White Build compatible |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 140 mm |
| Height | 86 mm |
| Color | White |

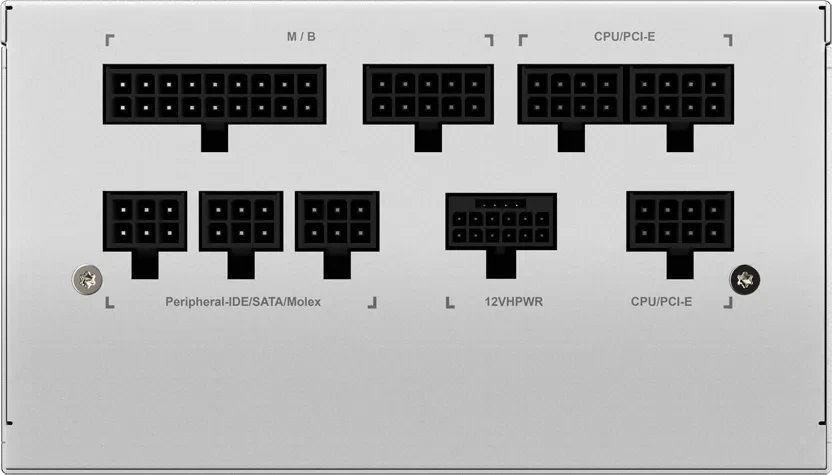

Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 8× |
| Floppy | 1× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| · manufacturer | 90% |
|---|
Fan
| Fan size | 120 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
