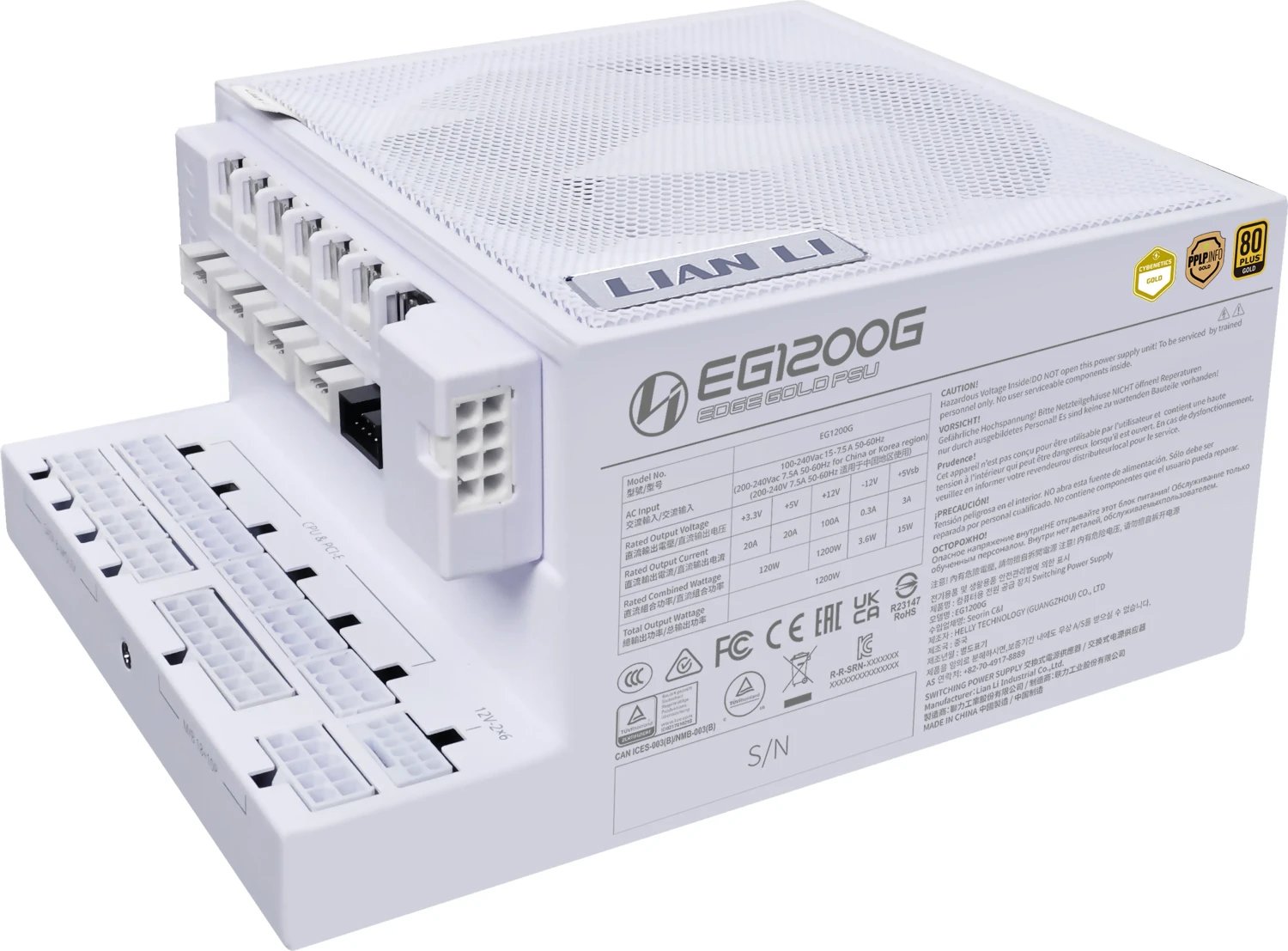

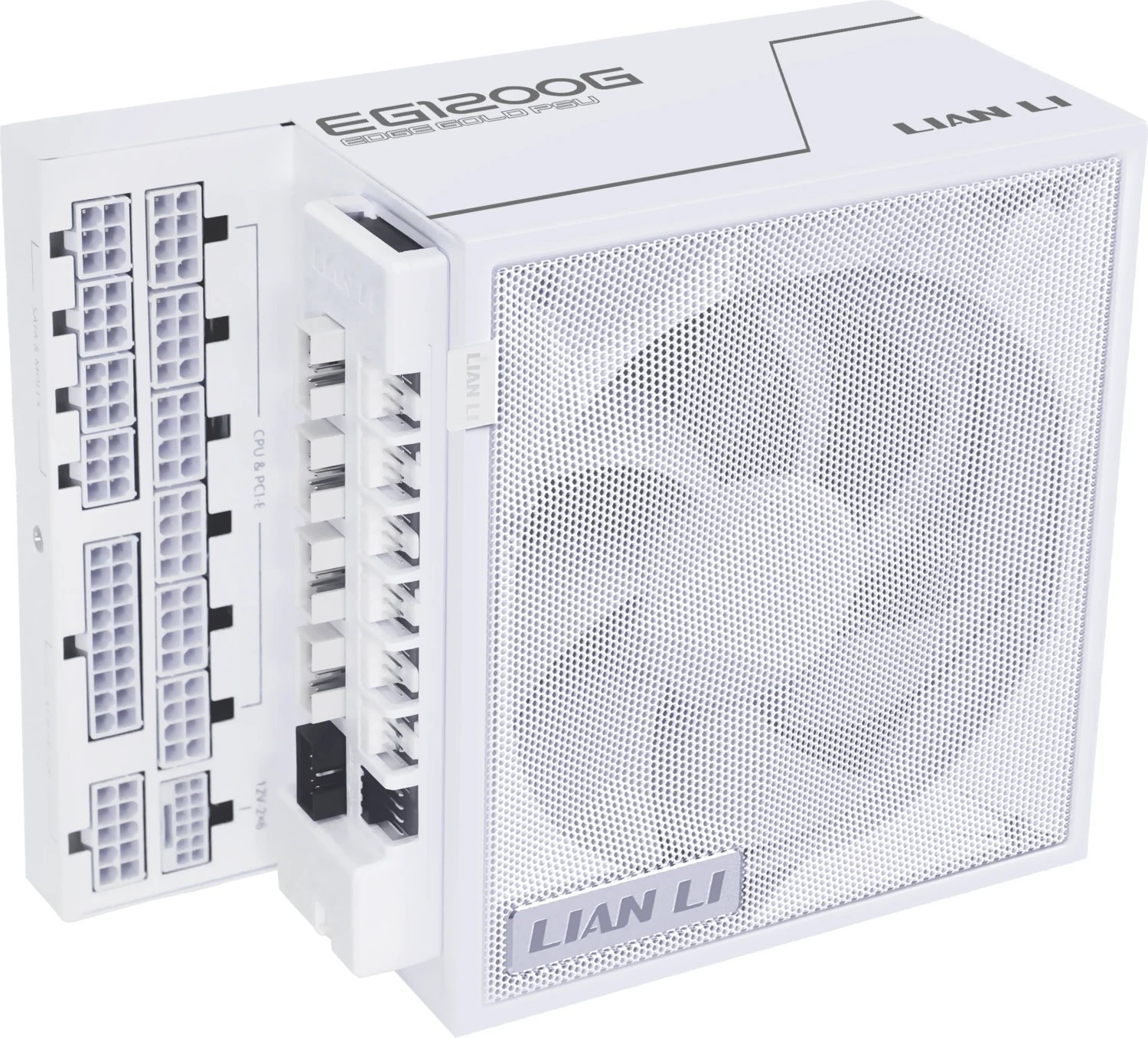

Lian Li EDGE Gold 1200
1200 W · 80 PLUS Gold · ATX 3.1
Specifications
| Wattage | 1200 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Color | White |
| Dimensions (W×D×H) | 150 × 182 × 86 mm |
| Weight | 1.72 kg |
| PFC | Active |
| Warranty | 10 years |
| Graphics card connector | 2× 12V-2x6 (native) · 600 W |
| Features | ErP Lot 6, Supports Haswell C6/C7 low-power states, Internal connectors mounted on the side, magnetic dust filter, White Build compatible |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder

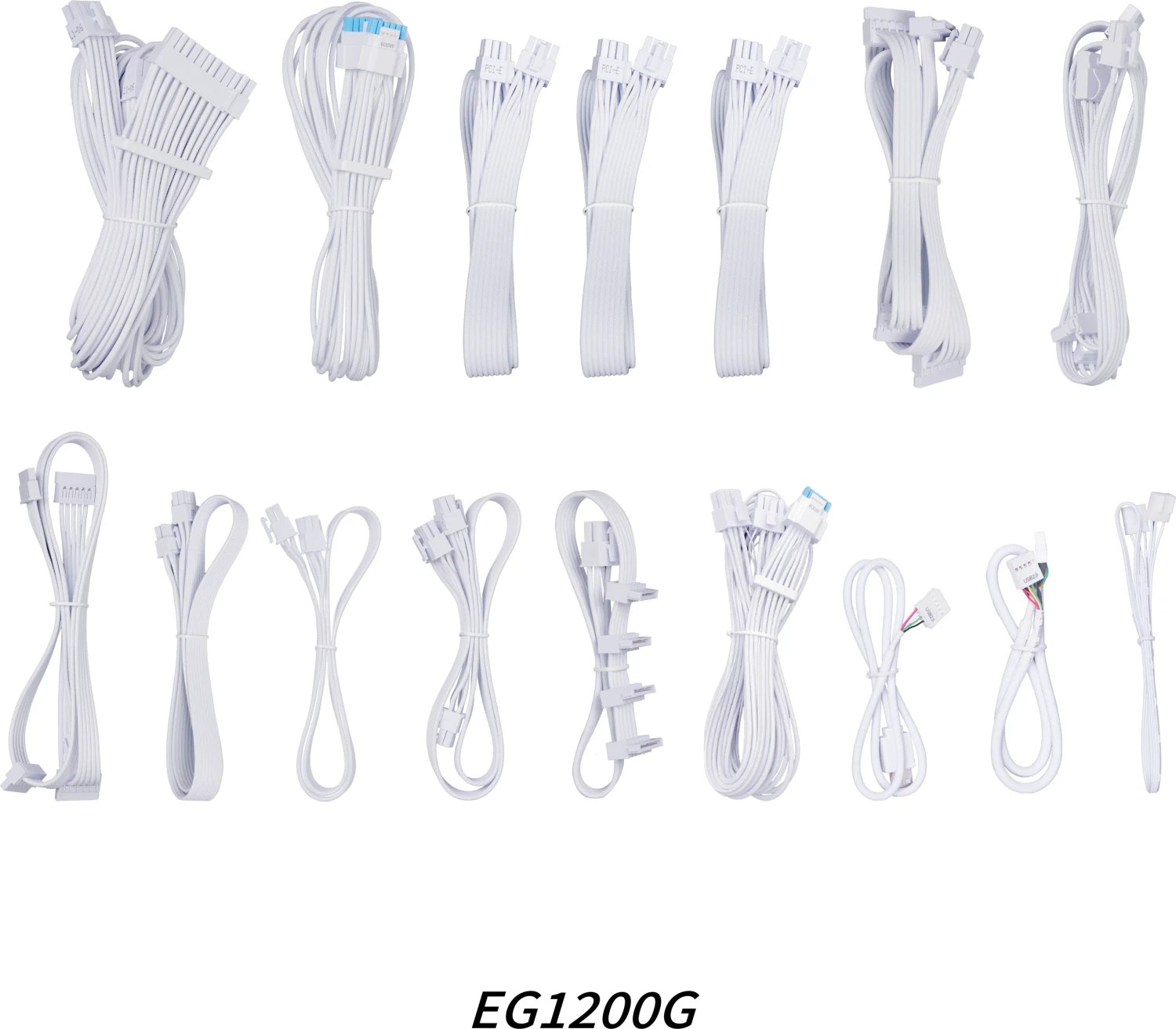

Cables and Connectors
| IDE / Molex | 4× |
|---|---|
| SATA | 12× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 5× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 88.96% |
|---|---|
| 115V · cybenetics | 89% |
| 230V · cybenetics | 91.52% |
Noise
| 115V · cybenetics | 24.33 dB(A) |
|---|---|
| 230V · cybenetics | 23.64 dB(A) |
Fan
| Fan size | 120 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
