SAMA H Series H500

500 W · 80 PLUS · ATX 2.52
SAMA H Series H500 product image

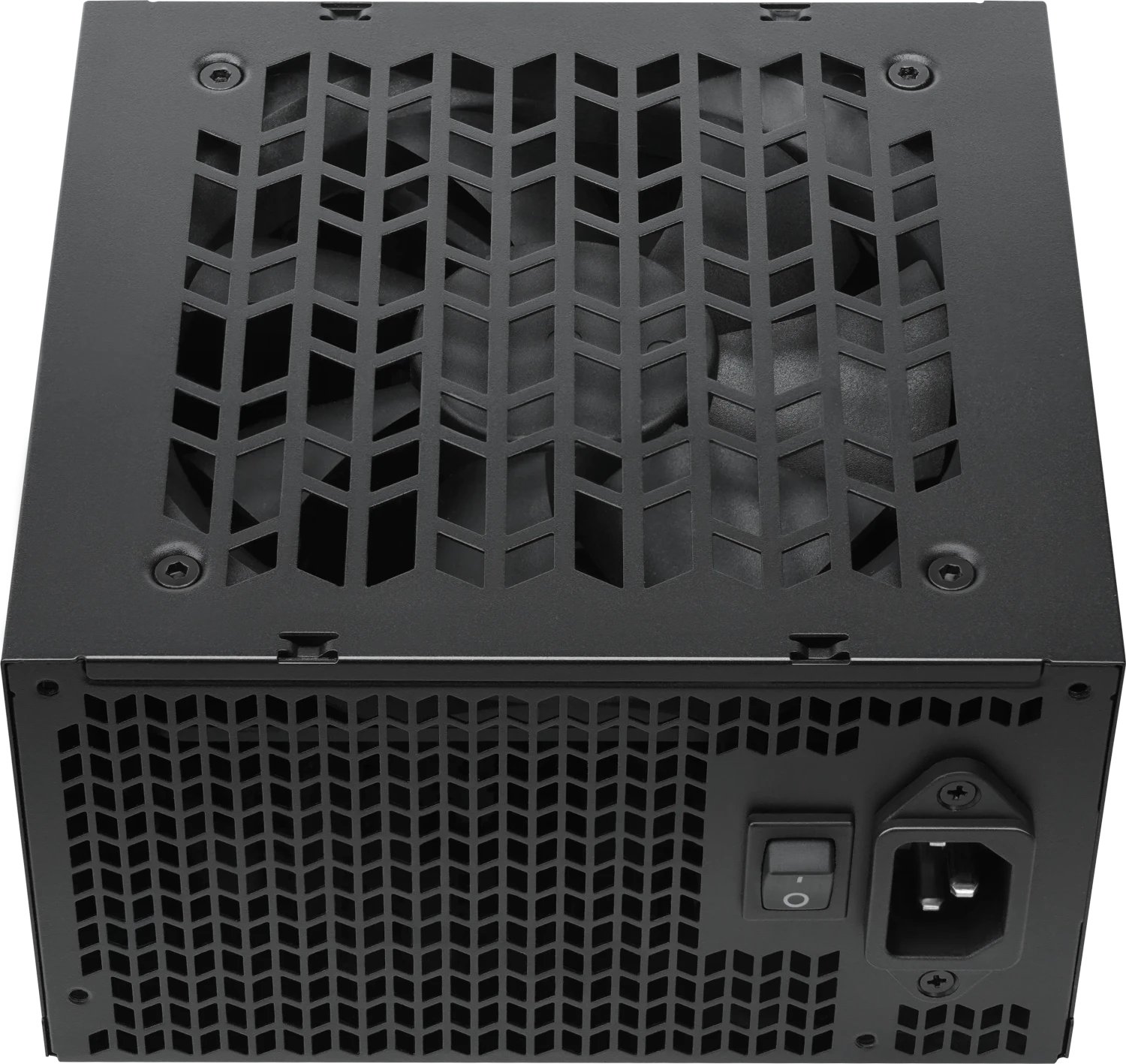

SAMA H Series H500 product image 1SAMA H Series H500 product image 2

Specifications

Wattage500 W
80 PLUS Certification80 PLUS
ATX StandardATX 2.52
Cable designNon-modular
Form FactorATX PS/2
Other FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width150 mm
Depth140 mm
Height86 mm
Weight1.2 kg
ColorBlack

Cables and Connectors

IDE / Molex4×
SATA4×
PCIe 6+2-pin2×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Fan

Fan size120 mm
Operating modeAlways on
