SAMA P Series P1000

1000 W · 80 PLUS Platinum · ATX 3.1

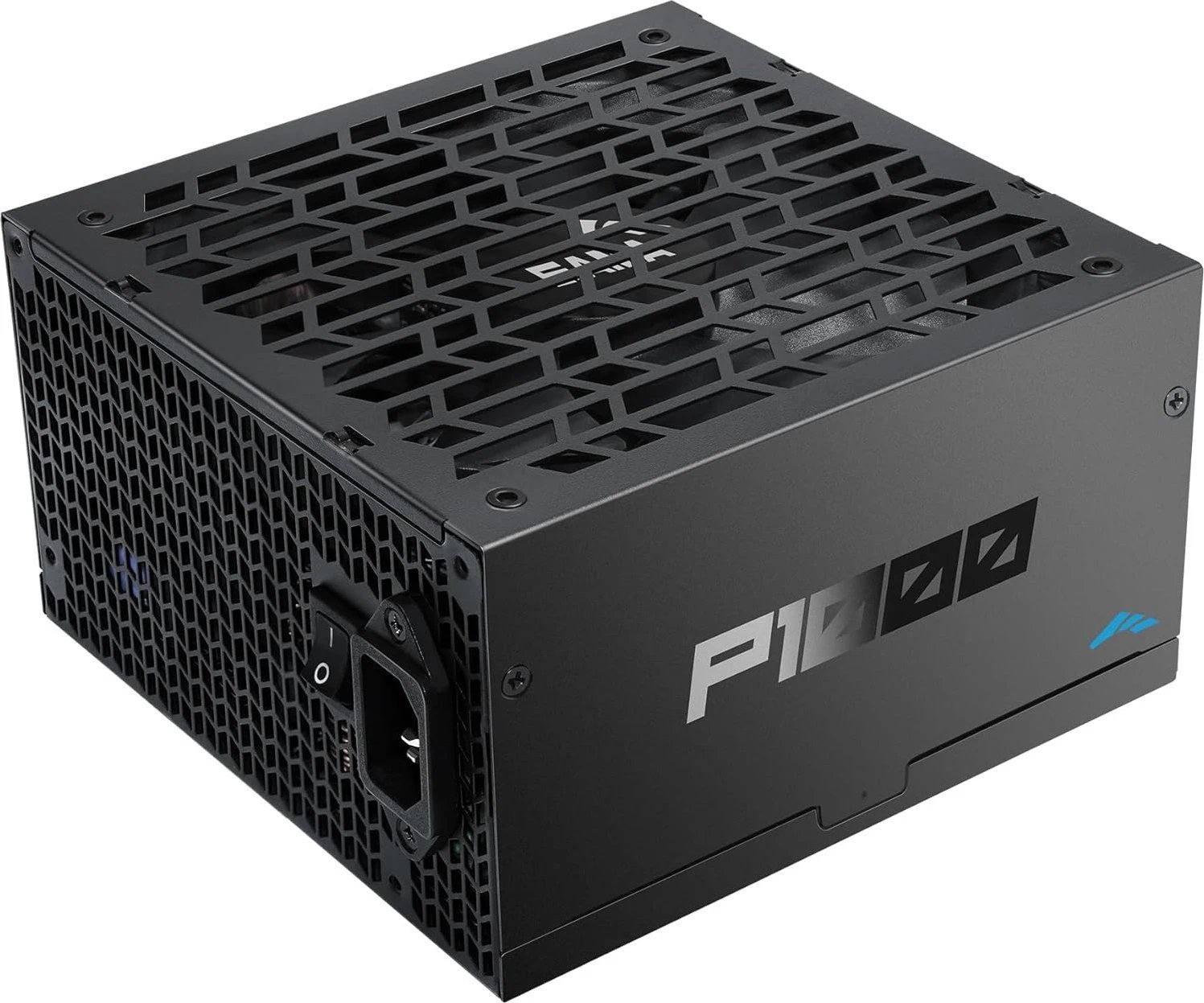

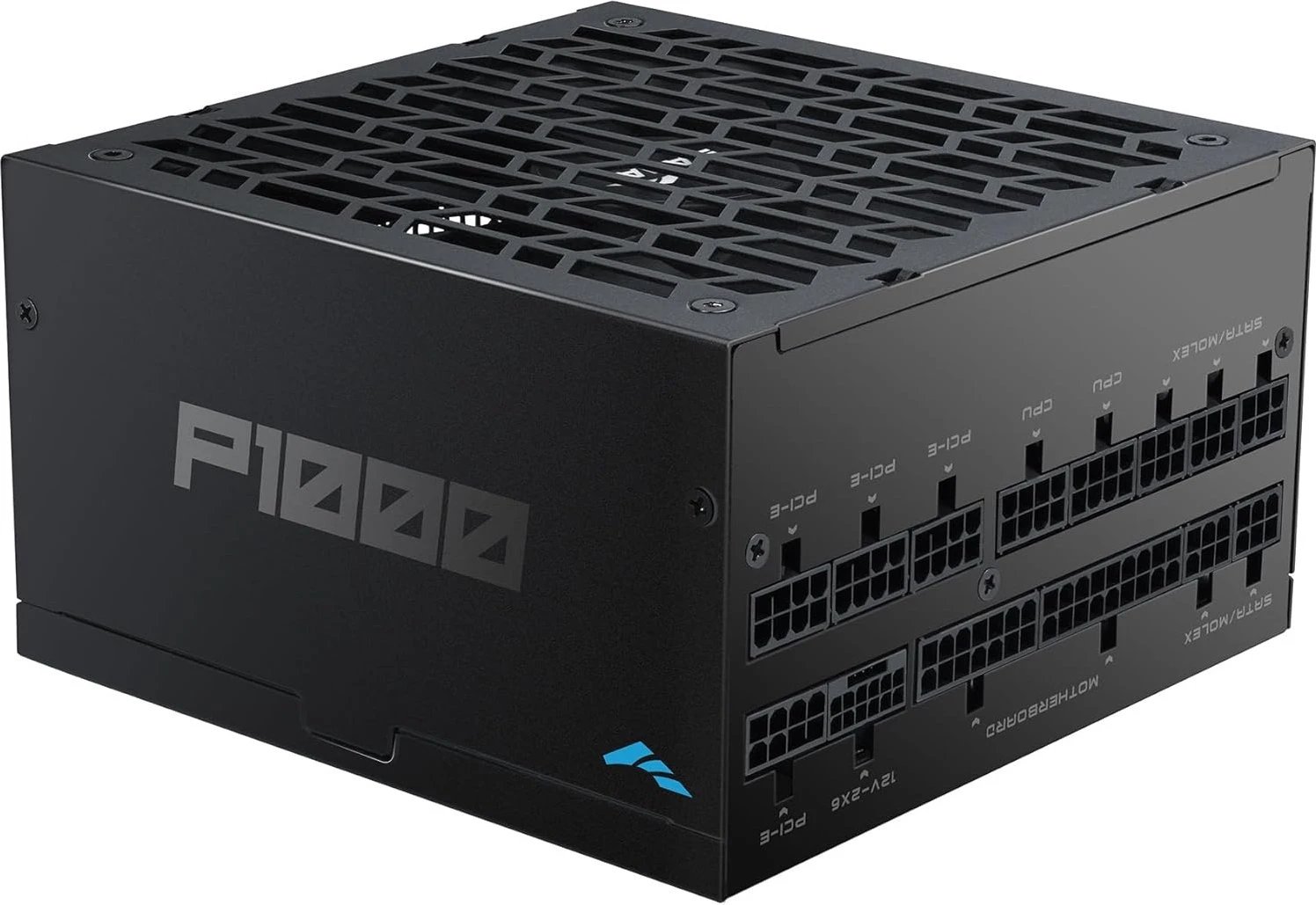

SAMA P Series P1000 product image
SAMA P Series P1000 product image 1SAMA P Series P1000 product image 2SAMA P Series P1000 product image 3

Specifications

Wattage1000 W
80 PLUS Certification80 PLUS Platinum
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 152 × 85 mm
PFCActive
Warranty10 years
Graphics card connector1× 12V-2x6 (native) · 600 W
FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

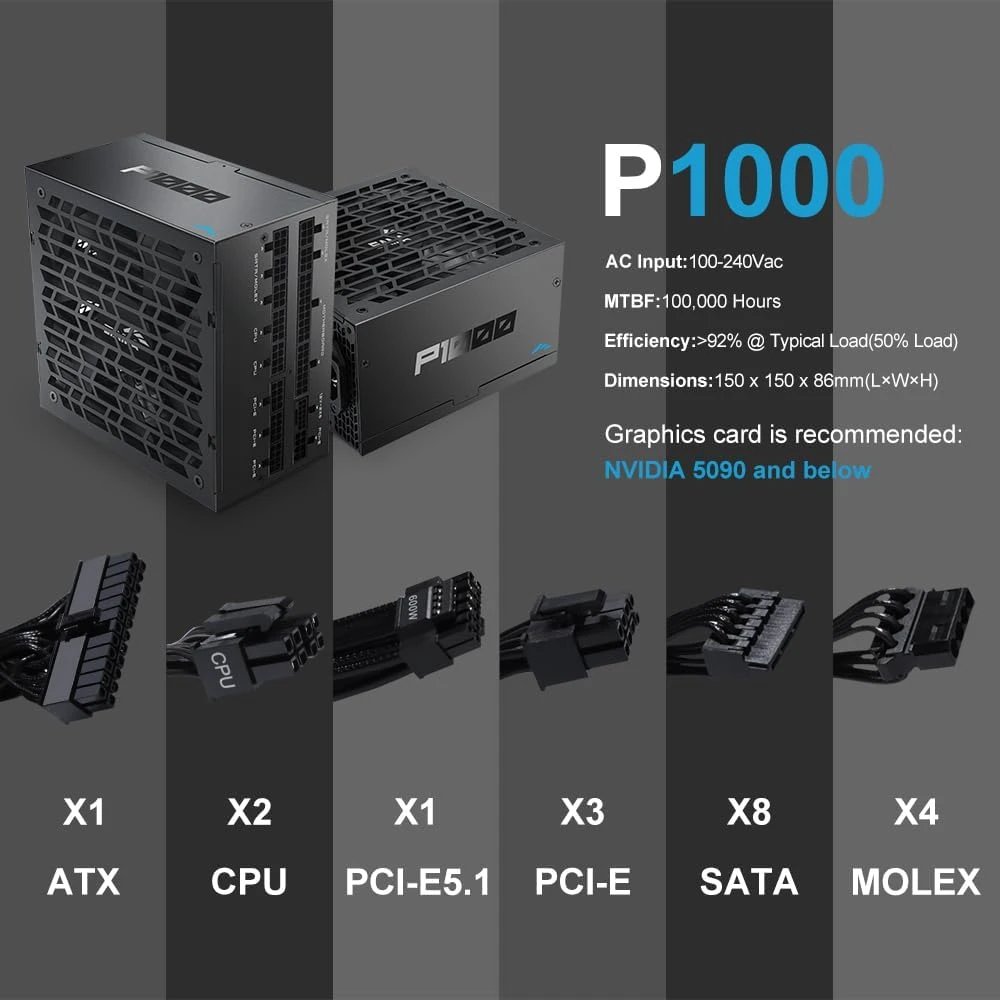

Cables and Connectors

IDE / Molex4×
SATA8×
PCIe 6+2-pin3×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Efficiency

115V · 80plus_official87.22%
115V · cybenetics90.68%
230V · cybenetics92.5%

Noise

115V · cybenetics19.95 dB(A)
230V · cybenetics19.56 dB(A)

Fan

Fan size140 mm
Operating modeSemi-passive (stops at low load)
