Seasonic Prime TX-1600

1600 W · 80 PLUS Titanium · ATX 3.1

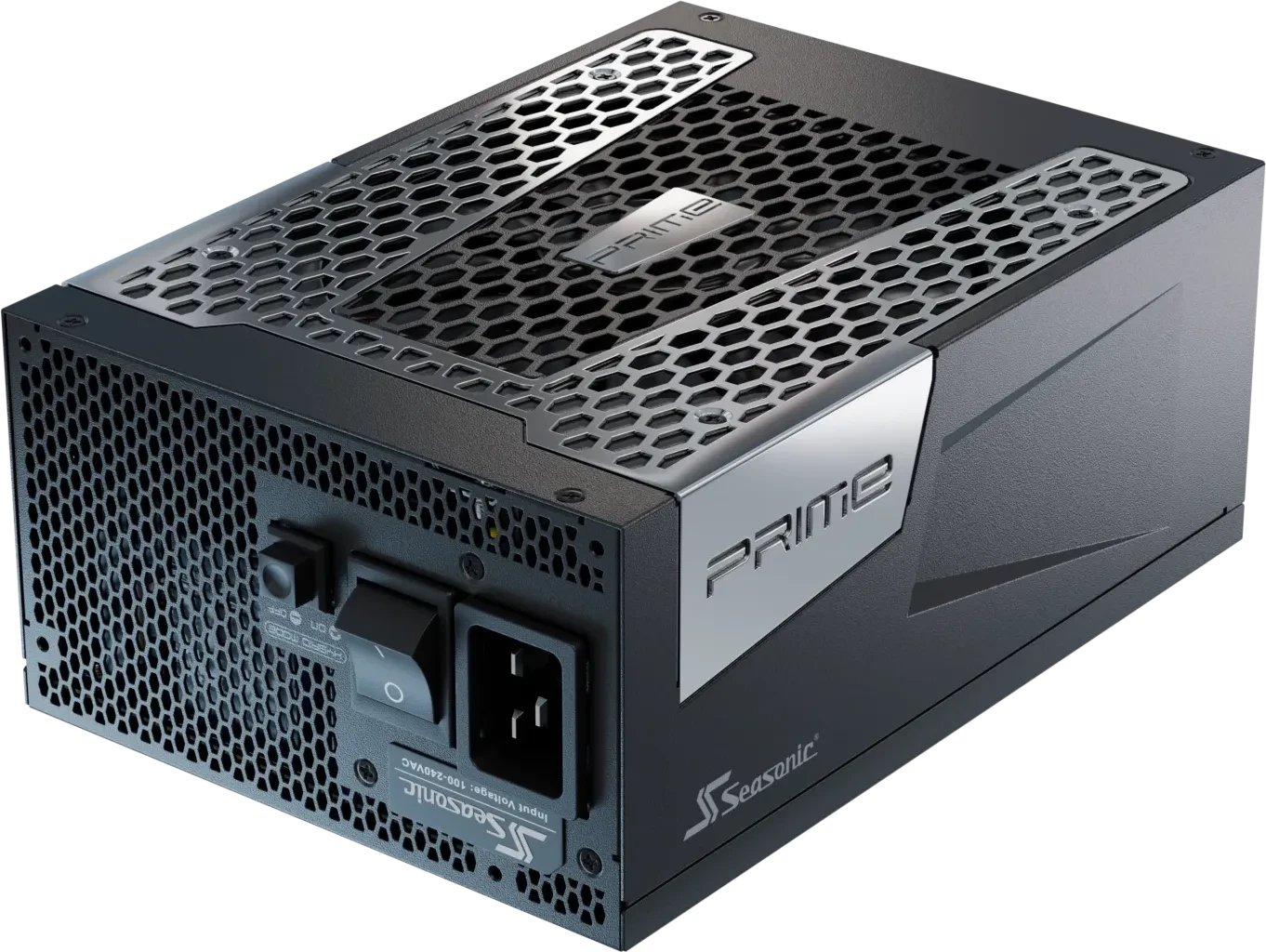

Seasonic Prime TX-1600 product image

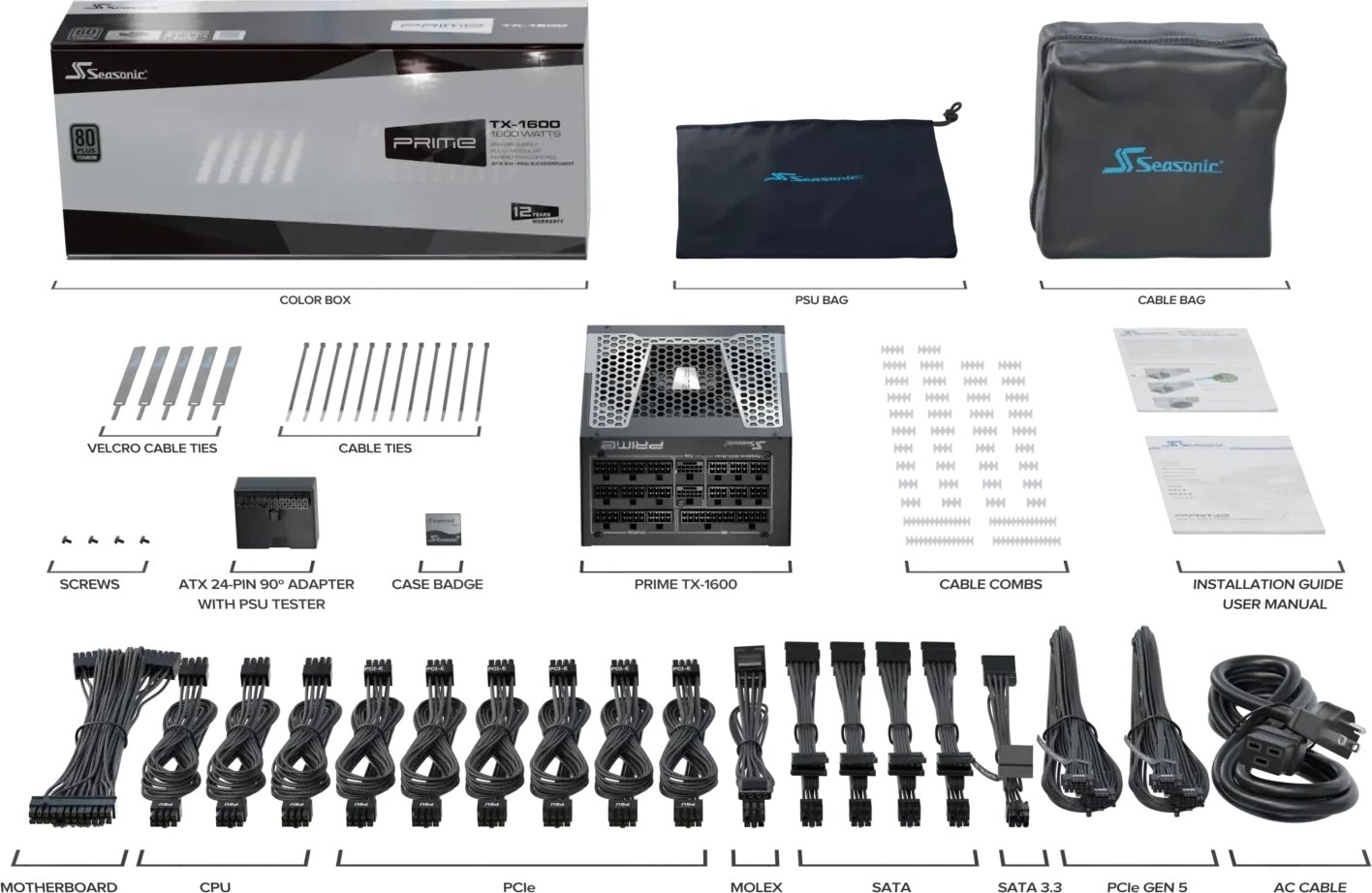

Seasonic Prime TX-1600 product image 1Seasonic Prime TX-1600 product image 2Seasonic Prime TX-1600 product image 3

Specifications

Wattage1600 W
80 PLUS Certification80 PLUS Titanium
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 210 × 86 mm
PFCActive
Warranty12 years
FeaturesErP Lot 6, Supports Haswell C6/C7 low-power states, Semi-passive mode switchable
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

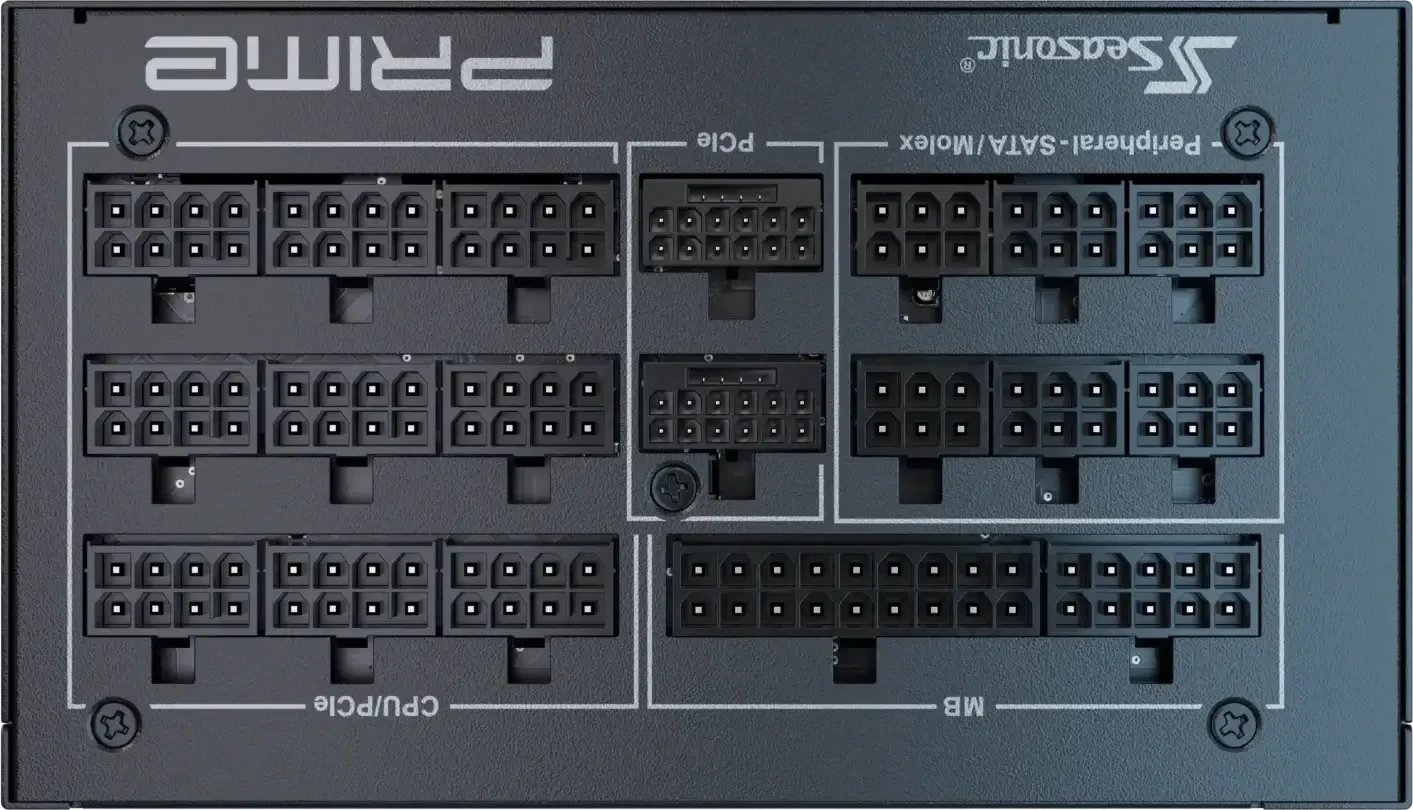

Cables and Connectors

IDE / Molex3×
SATA18×
PCIe 6+2-pin6×
CPU 4+4-pin (ATX12V)3×
Motherboard 24-pin1×

Efficiency

· manufacturer94%
115V · 80plus_official93.5%
115V · cybenetics92.27%
230V · cybenetics94.01%

Noise

115V · cybenetics21.71 dB(A)
230V · cybenetics22.12 dB(A)

Fan

Fan size135 mm
Operating modeSemi-passive (stops at low load)
