Seasonic Vertex PX-750

750 W · 80 PLUS Platinum · ATX 3.1

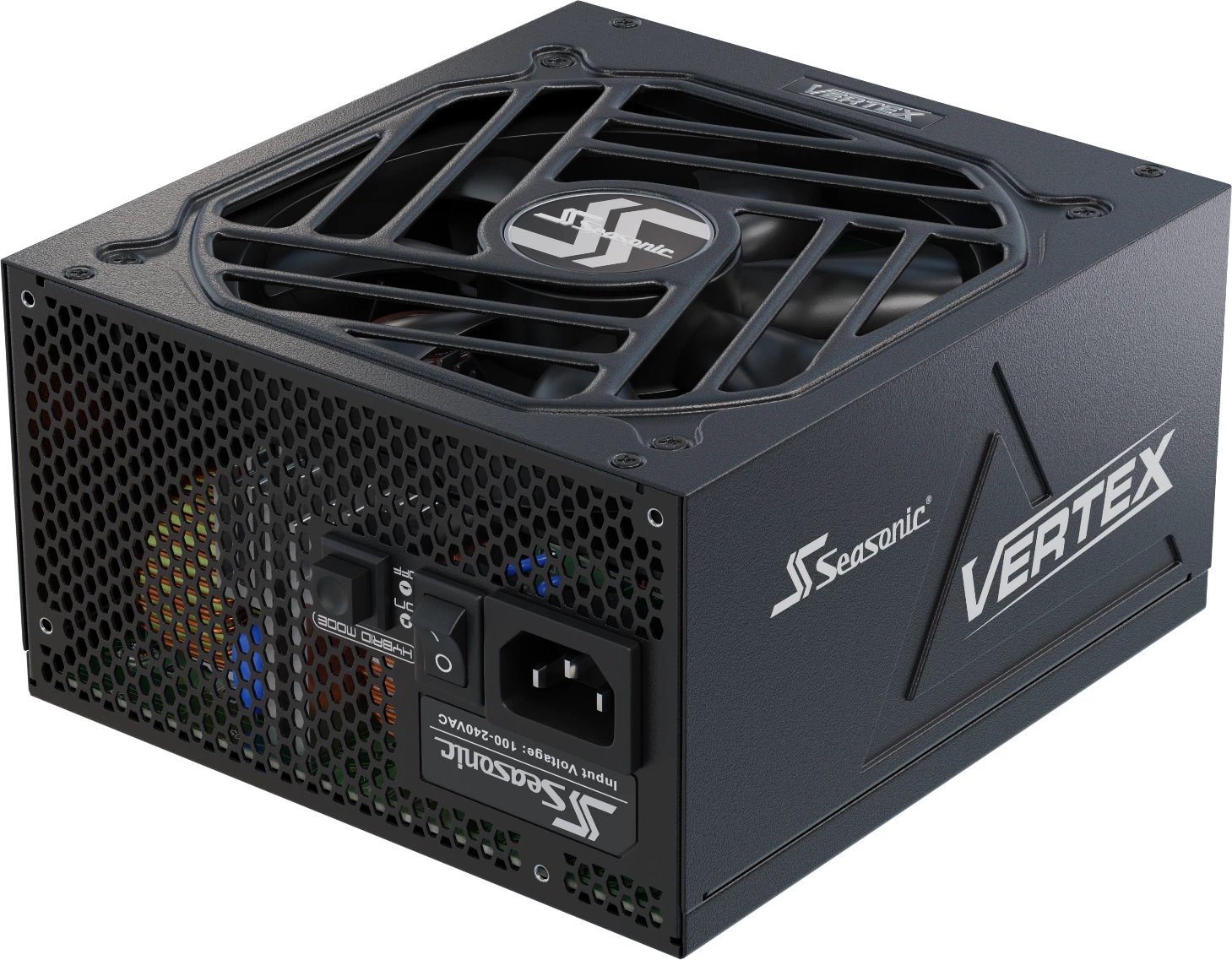

Seasonic Vertex PX-750 product image
Seasonic Vertex PX-750 product image 1Seasonic Vertex PX-750 product image 2Seasonic Vertex PX-750 product image 3

Specifications

Wattage750 W
80 PLUS Certification80 PLUS Platinum
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 160 × 86 mm
PFCActive
Warranty12 years
Graphics card connector1× 12V-2x6 (native)
FeaturesErP Lot 6, Semi-passive mode switchable
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

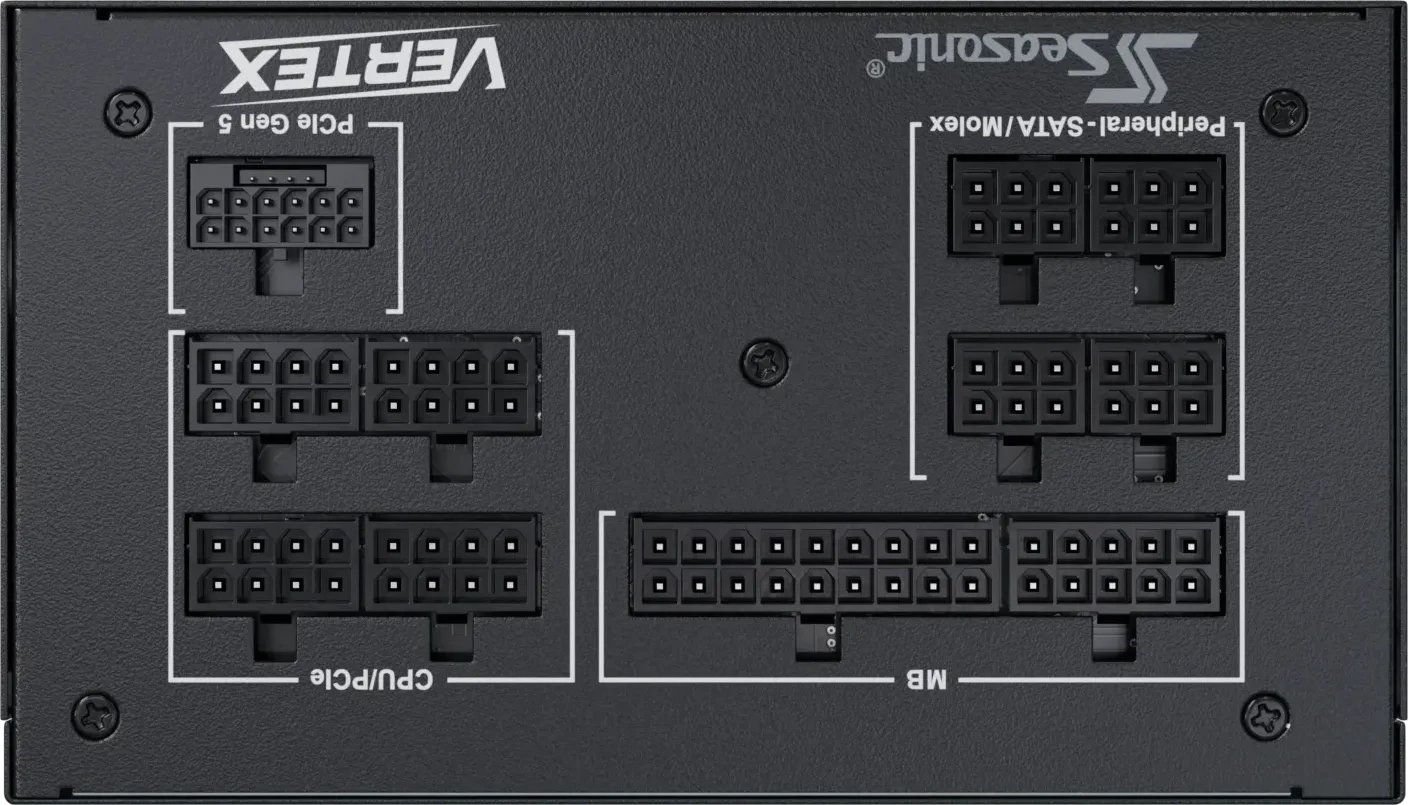

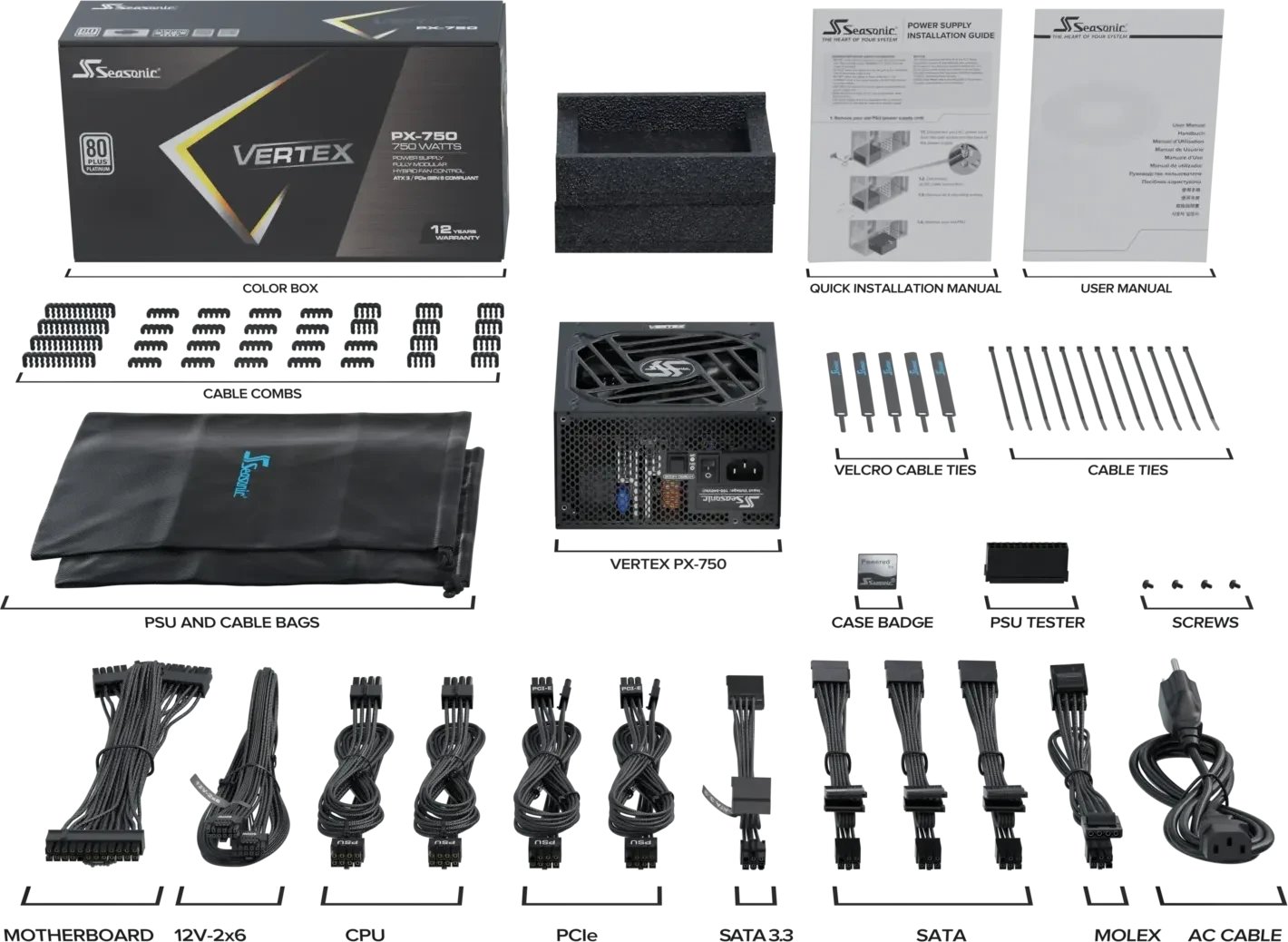

Cables and Connectors

IDE / Molex3×
SATA14×
PCIe 6+2-pin2×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Fan

Fan size135 mm
Operating modeSemi-passive (stops at low load)
