SilverStone Extreme Series EX550Rz Gold

550 W · 80 PLUS Gold · SFX 4.1

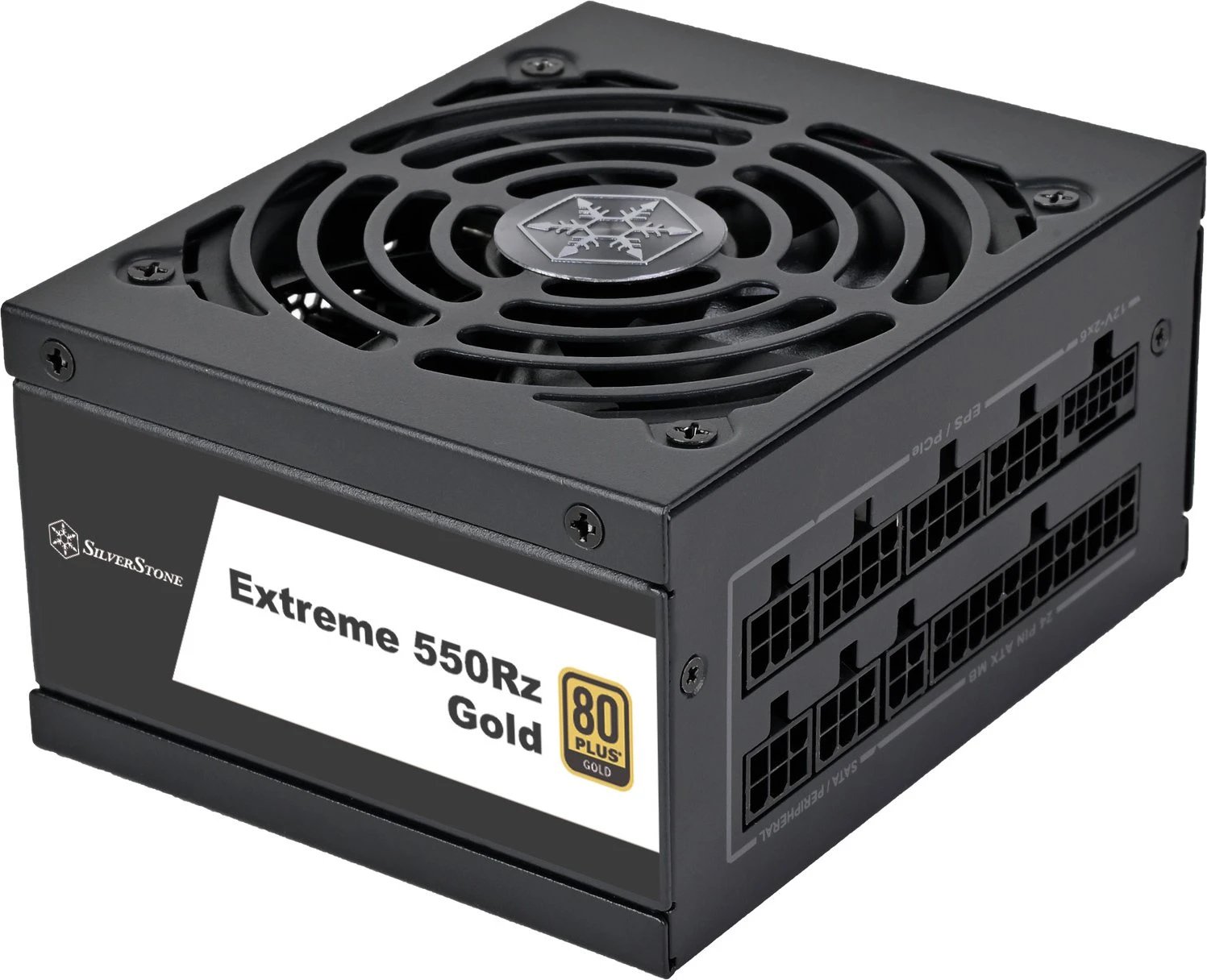

SilverStone Extreme Series EX550Rz Gold product image

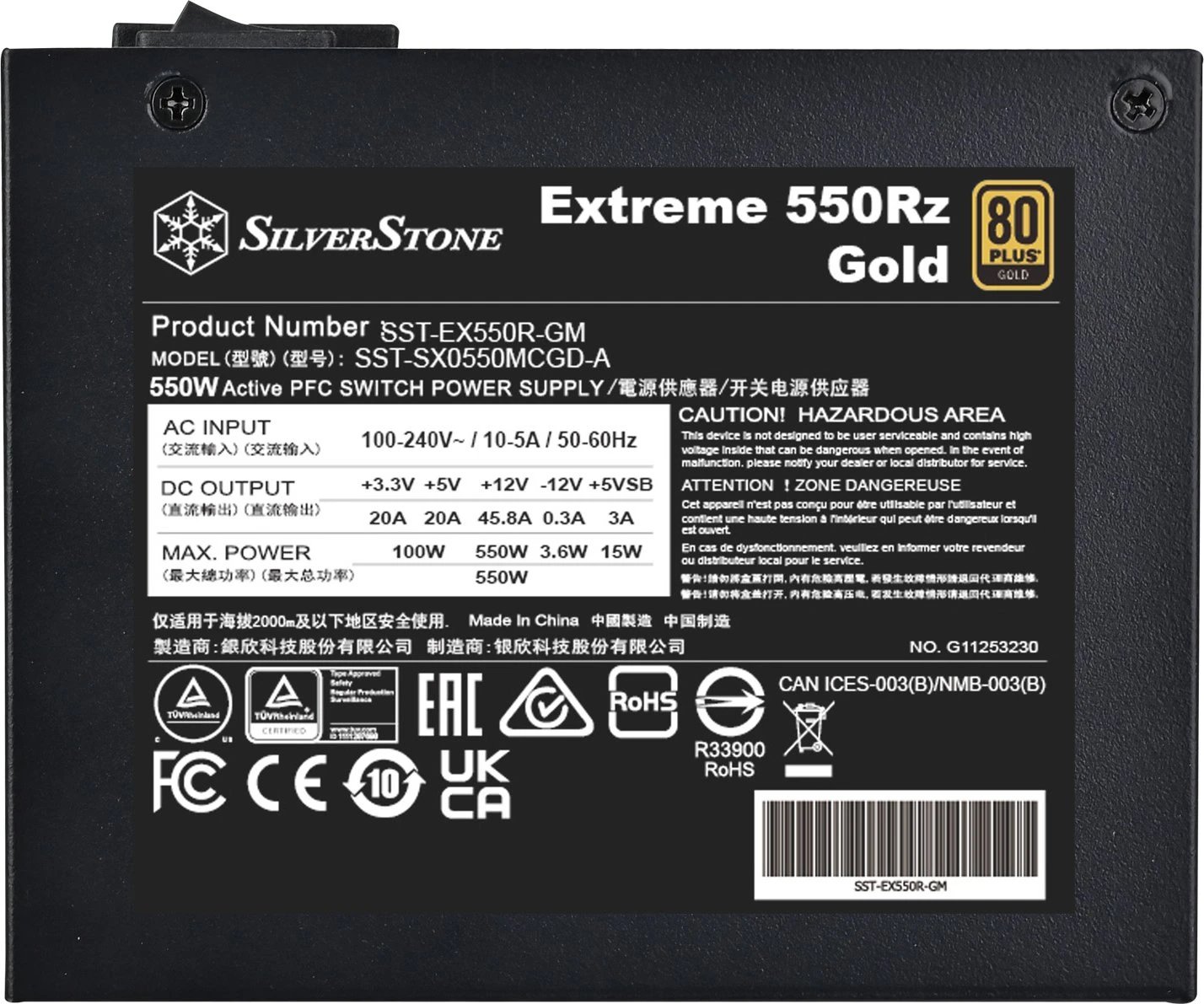

SilverStone Extreme Series EX550Rz Gold product image 1SilverStone Extreme Series EX550Rz Gold product image 2

Specifications

Wattage550 W
80 PLUS Certification80 PLUS Gold
ATX StandardSFX 4.1
Cable designFully modular
Form FactorSFX
Warranty5 years
Graphics card connector1× 12V-2x6 (native)
Other FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width125 mm
Depth100 mm
Height64 mm
Weight1.31 kg
ColorBlack

Cables and Connectors

IDE / Molex3×
SATA6×
PCIe 6+2-pin2×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Fan

Fan size92 mm
Operating modeSemi-passive (stops at low load)
