SilverStone Extreme Series EX650Rz Gold

650 W · 80 PLUS Gold · SFX 4.1

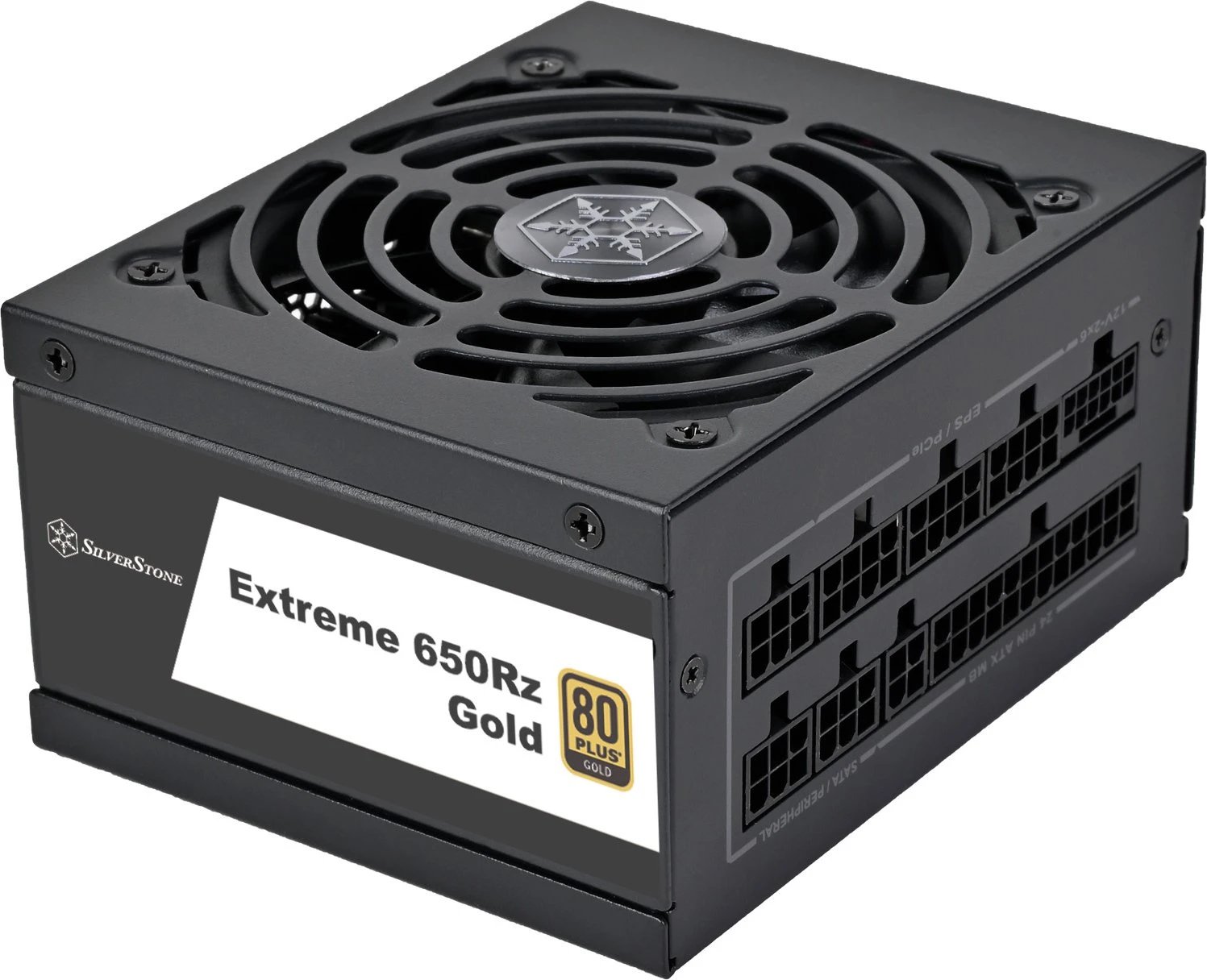

SilverStone Extreme Series EX650Rz Gold product image

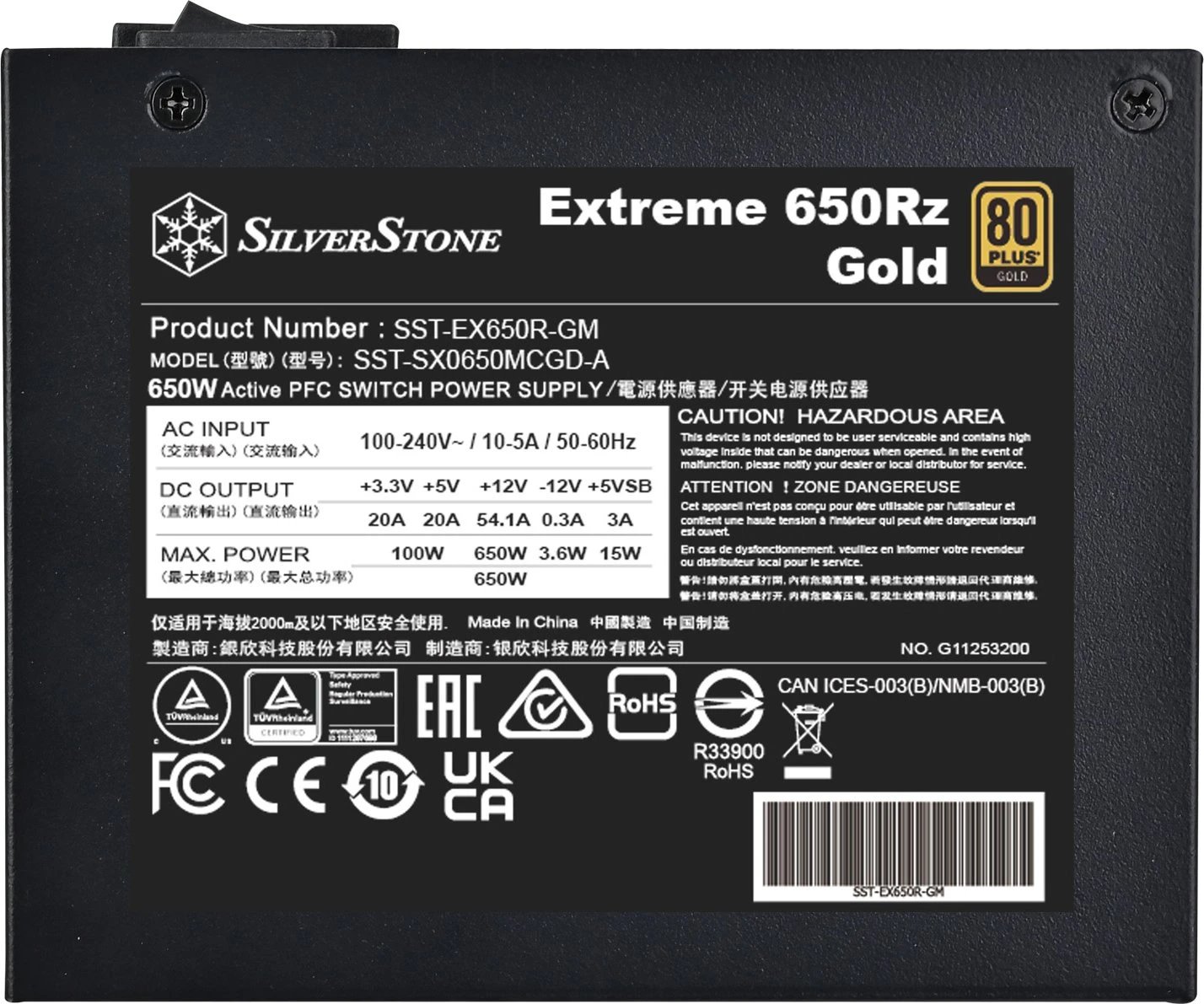

SilverStone Extreme Series EX650Rz Gold product image 1SilverStone Extreme Series EX650Rz Gold product image 2

Specifications

Wattage650 W
80 PLUS Certification80 PLUS Gold
ATX StandardSFX 4.1
Cable designFully modular
Form FactorSFX
ColorBlack
Dimensions (W×D×H)125 × 100 × 64 mm
Weight1.36 kg
PFCActive
Warranty5 years
Graphics card connector1× 12V-2x6 (native)
FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Cables and Connectors

IDE / Molex3×
SATA6×
PCIe 6+2-pin4×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Fan

Fan size92 mm
Operating modeSemi-passive (stops at low load)
