SilverStone SFX Series SX750-G Gold

750 W · 80 PLUS Gold · SFX

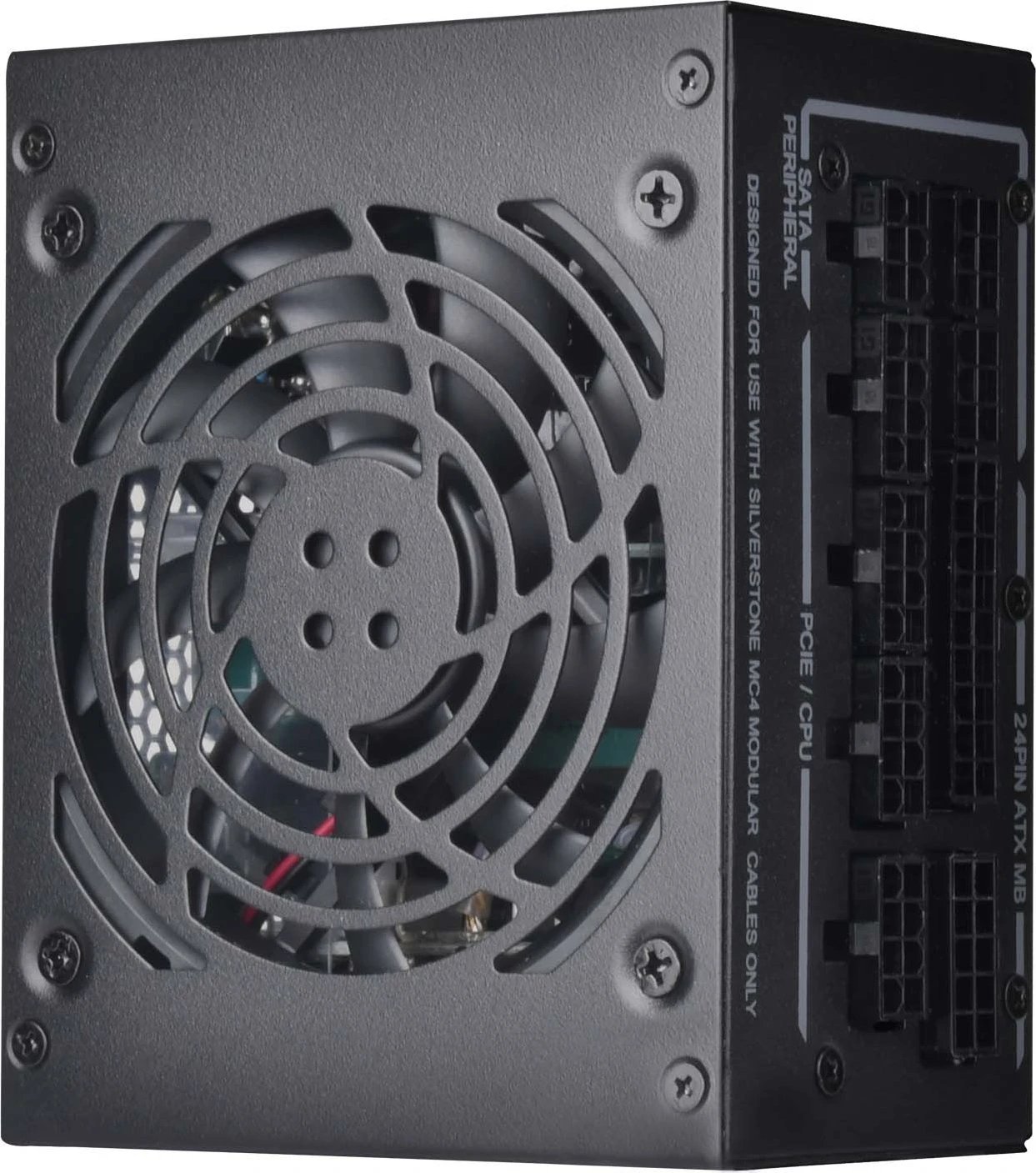

SilverStone SFX Series SX750-G Gold product image

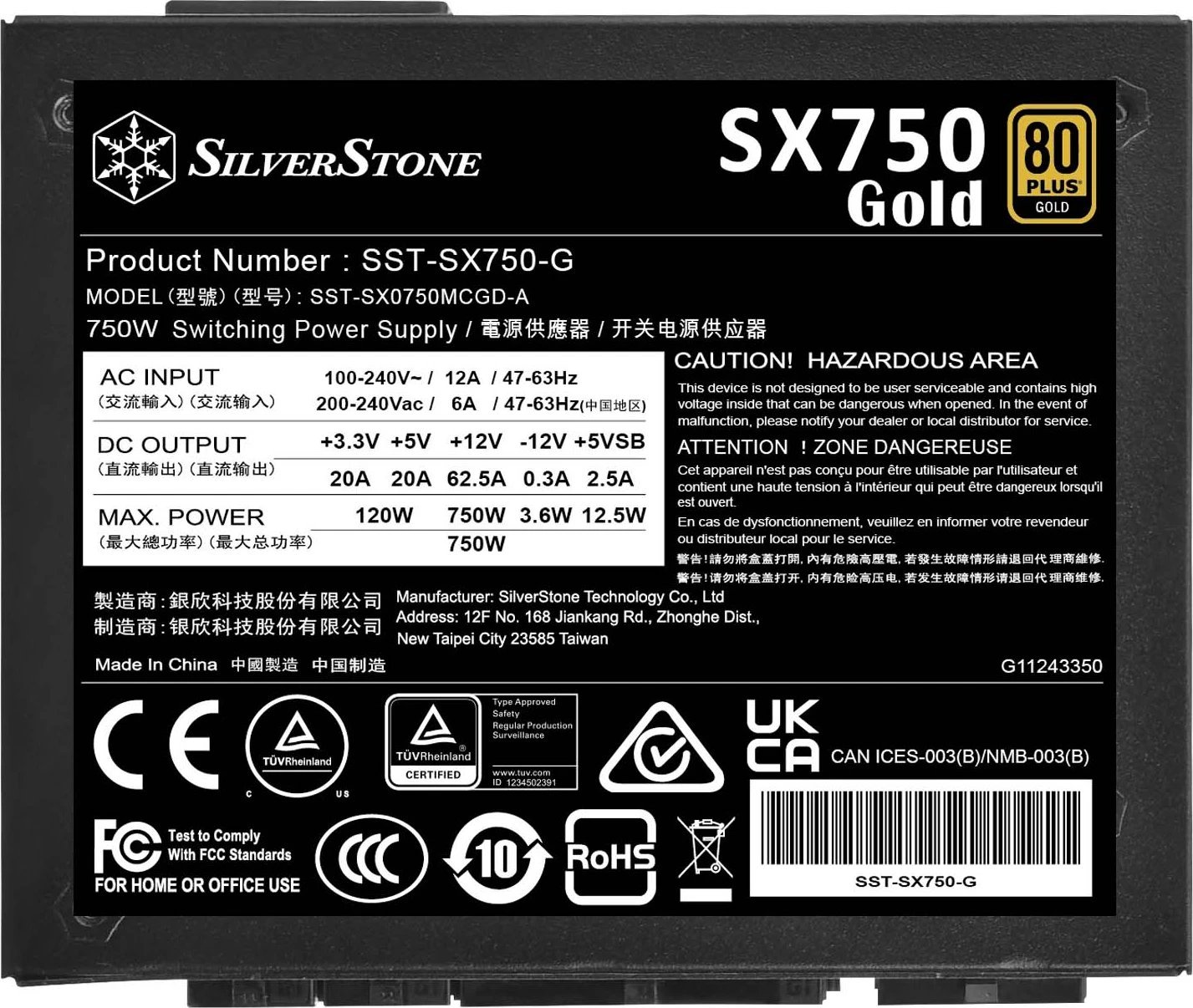

SilverStone SFX Series SX750-G Gold product image 1SilverStone SFX Series SX750-G Gold product image 2

Specifications

Wattage750 W
80 PLUS Certification80 PLUS Gold
ATX StandardSFX
Cable designFully modular
Form FactorSFX
Warranty5 years
Other FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width125 mm
Depth100 mm
Height64 mm
Weight1.49 kg
ColorBlack

Cables and Connectors

IDE / Molex3×
SATA8×
Floppy1×
EPS12V 8-pin1×
PCIe 6+2-pin4×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Fan

Fan size92 mm
Operating modeSemi-passive (stops at low load)
