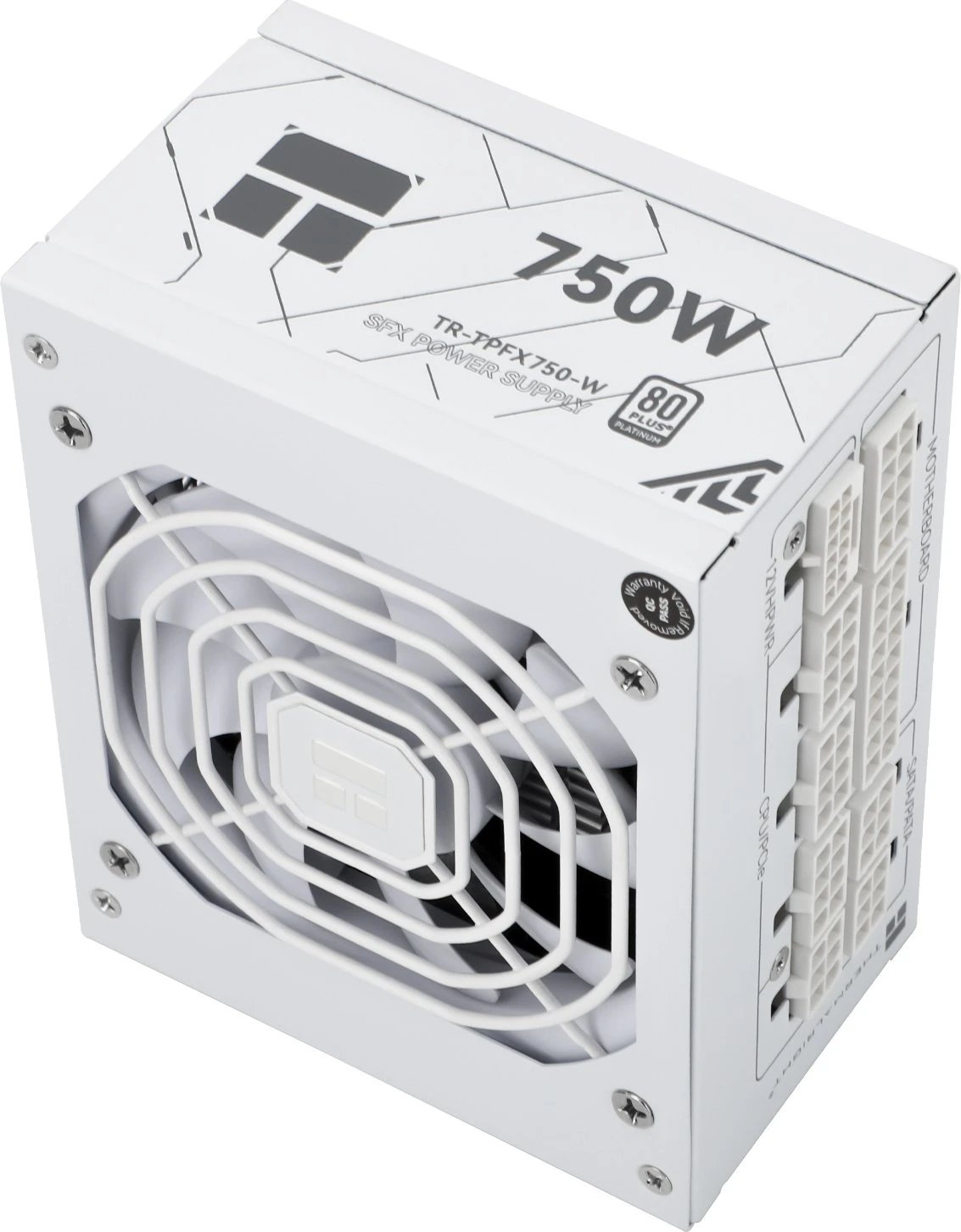

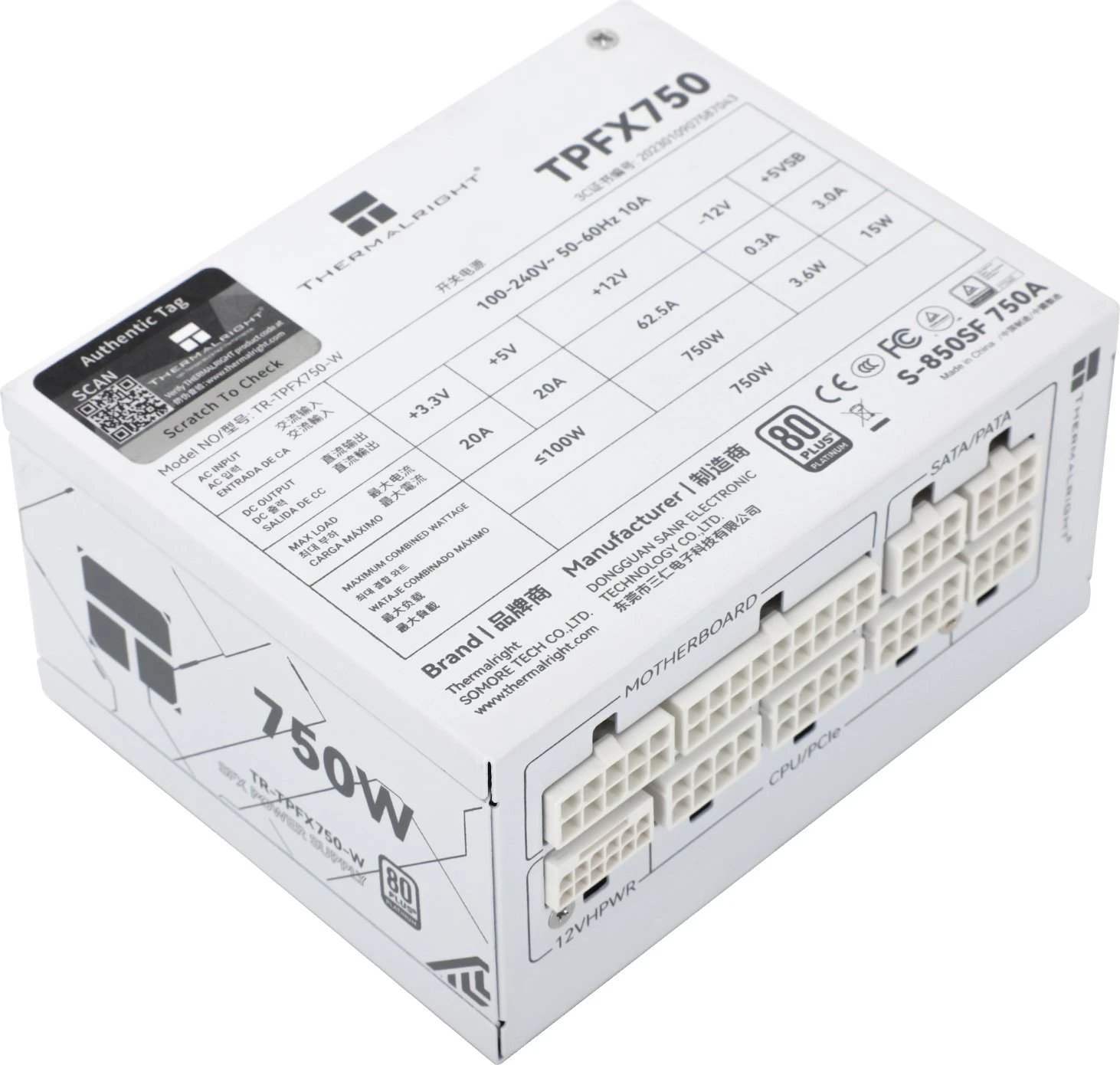

Thermalright TPFX-750
750 W · 80 PLUS Platinum · SFX, ATX 3.0
Specifications
| Wattage | 750 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Standard | SFX, ATX 3.0 |
| Cable design | Fully modular |
| Form Factor | SFX |
| Warranty | 7 years |
| Graphics card connector | 1× 12VHPWR (via adapter) |
| Other Features | White Build compatible |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 125 mm |
|---|---|
| Depth | 100 mm |
| Height | 64 mm |
| Color | White |
Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 6× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Fan
| Fan size | 92 mm |
|---|---|
| Operating mode | Always on |
