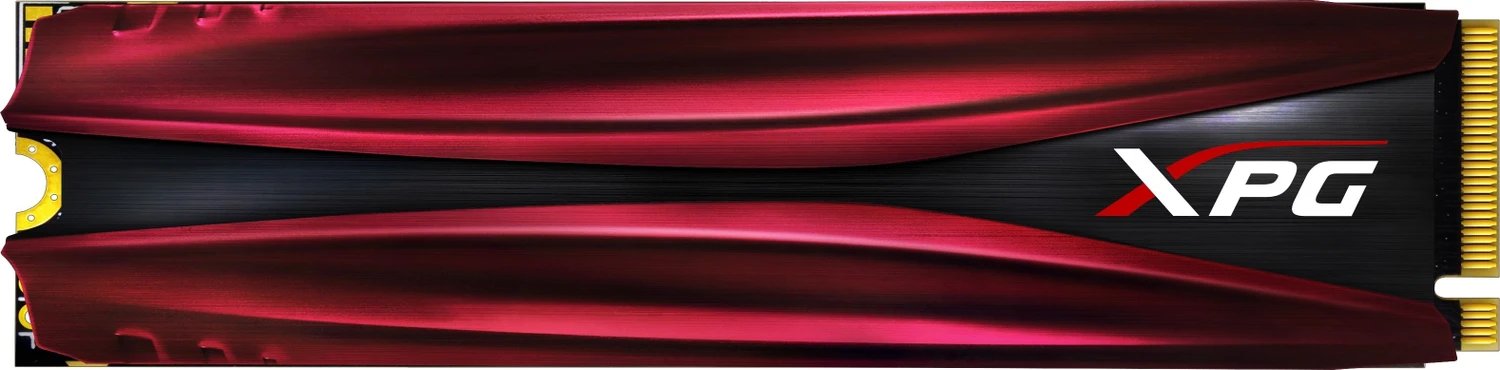

ADATA XPG Gammix S11 Pro 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.3 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x6.1mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3350 MB/s |
|---|---|
| Sequential Write | 2800 MB/s |
| 4K Read (IOPS) | 390K |
| 4K Write (IOPS) | 380K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR3L |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 64 |
| Controller | Silicon Motion SM2262EN |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 640 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 6.1 mm |
| Heatsink Note | Dimensions include heatsink |
