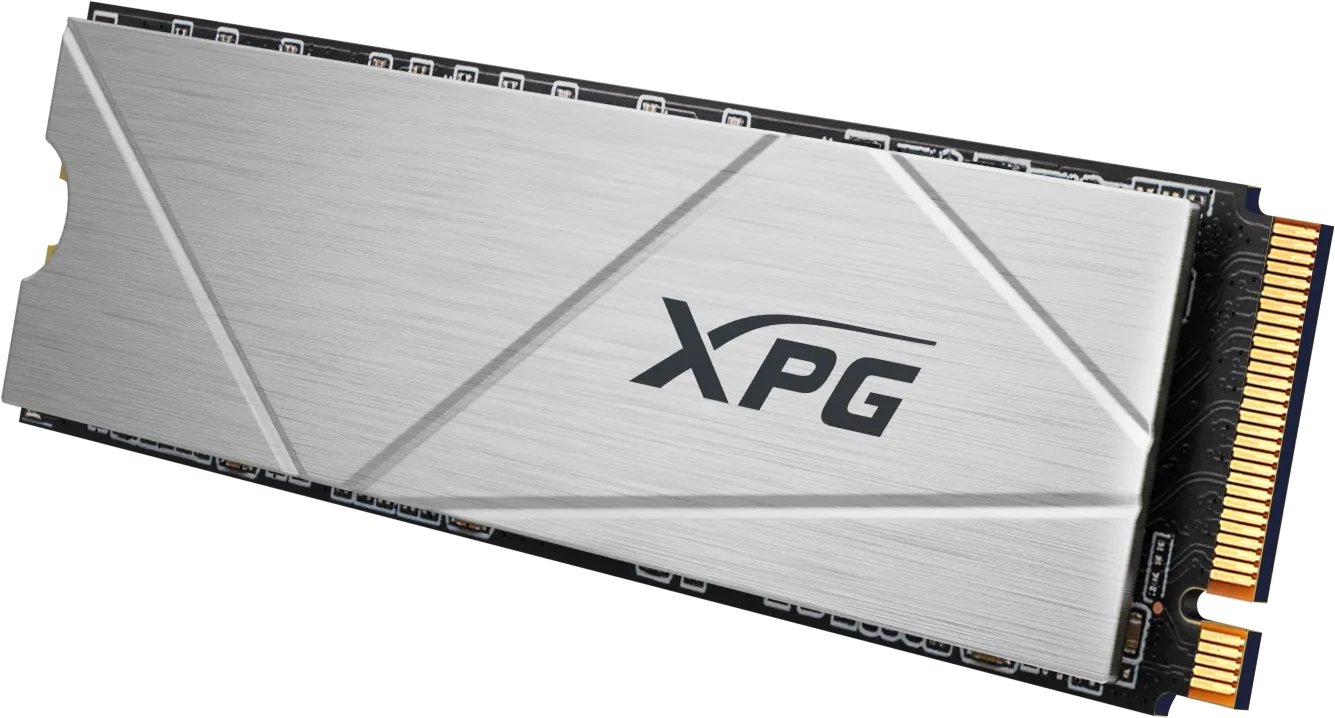

ADATA XPG Gammix S60 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x3.13mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 5000 MB/s |
|---|---|
| Sequential Write | 3200 MB/s |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | SK hynix |
| NAND Layers | 176 |
| Controller | Phison PS5021-E21T |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 250 TB |
|---|---|
| MTBF | 1.5 million hours |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 3.1 mm |
| Heatsink Note | Heatsink included but NOT pre-installed (optional); Dimensions include heatsink |
