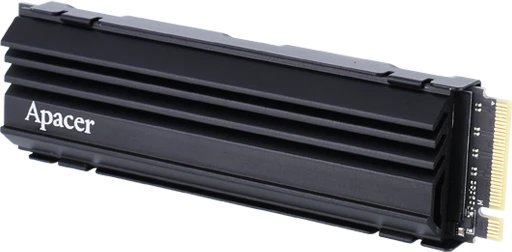

Apacer AS2280Q4U 512GB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 512 GB |
| Dimensions | 80x22.9x10.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7000 MB/s |
|---|---|
| Sequential Write | 3000 MB/s |
| 4K Read (IOPS) | 450K |
| 4K Write (IOPS) | 300K |
| DRAM Cache | No |
| Cache Type | HMB |
Endurance
| Endurance (TBW) | 350 TB |
|---|---|
| MTBF | 1.6 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 10.8 mm |
| Heatsink Note | Heatsink included but NOT pre-installed (optional); Dimensions include heatsink |
