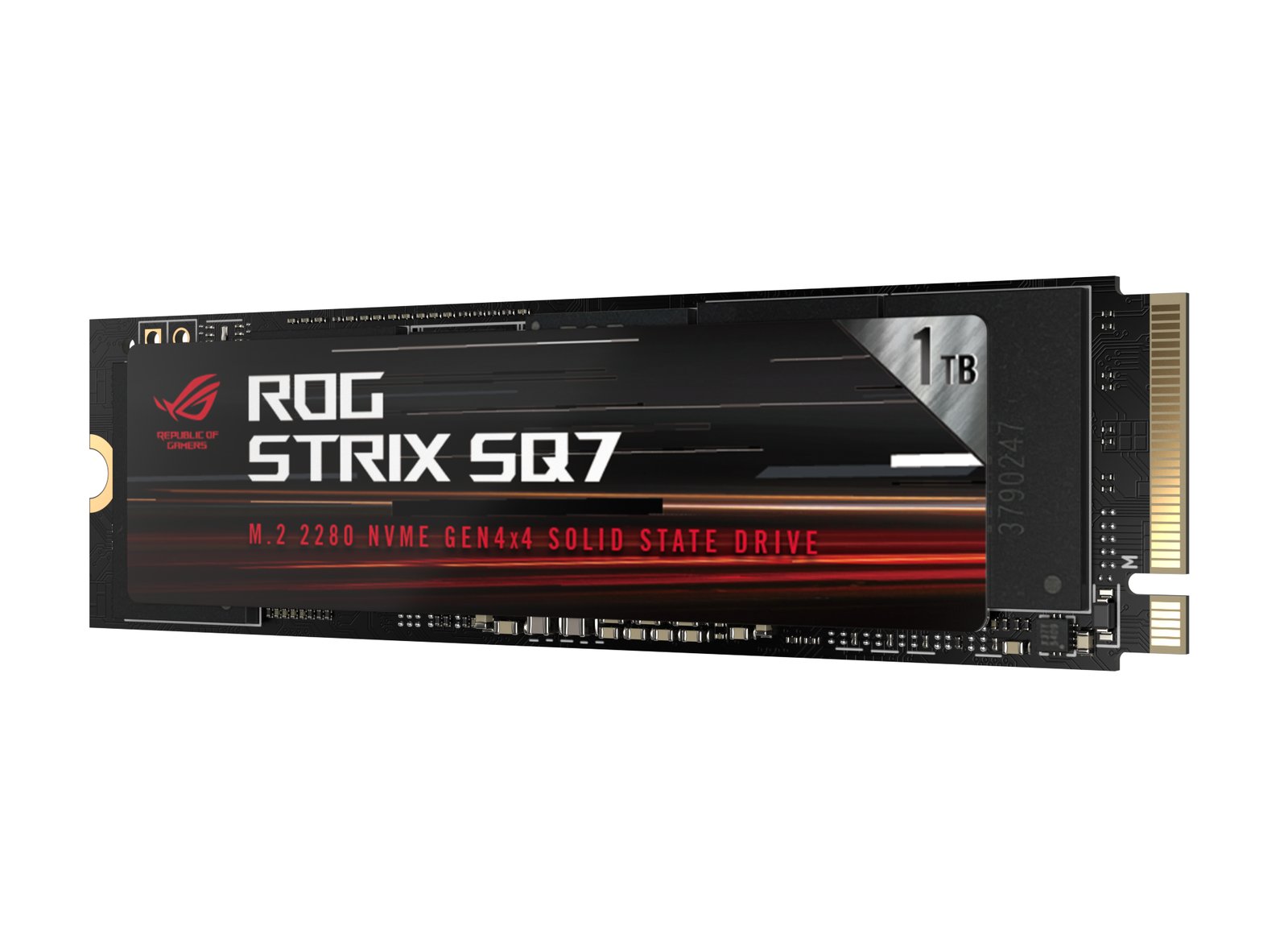

ASUS ROG Strix SQ7 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7000 MB/s |
|---|---|
| Sequential Write | 6000 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DRAM cache ("DRAM buffering") confirmed present per manufacturer specs; exact chip capacity in MB not published. Uses Phison E18 (12nm) controller with 3D TLC NAND. |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | No dedicated heatsink included per manufacturer product page (designed for use with the motherboard's own M.2 heatsink); has TCG Opal and AES 256-bit hardware encryption support. |
