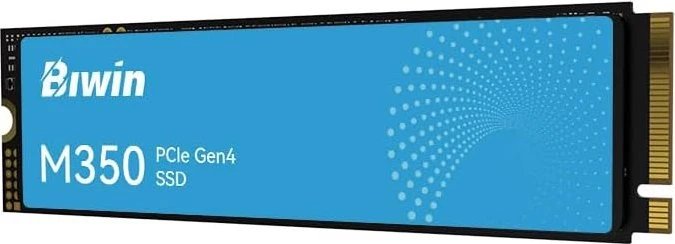

Biwin M350 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x2.45mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 5200 MB/s |
|---|---|
| Sequential Write | 4800 MB/s |
| 4K Read (IOPS) | 500K |
| 4K Write (IOPS) | 600K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | QLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 232 |
| Controller | Silicon Motion SM2268XT2 |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 400 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | Graphene heatspreader label (not a heatsink) |
