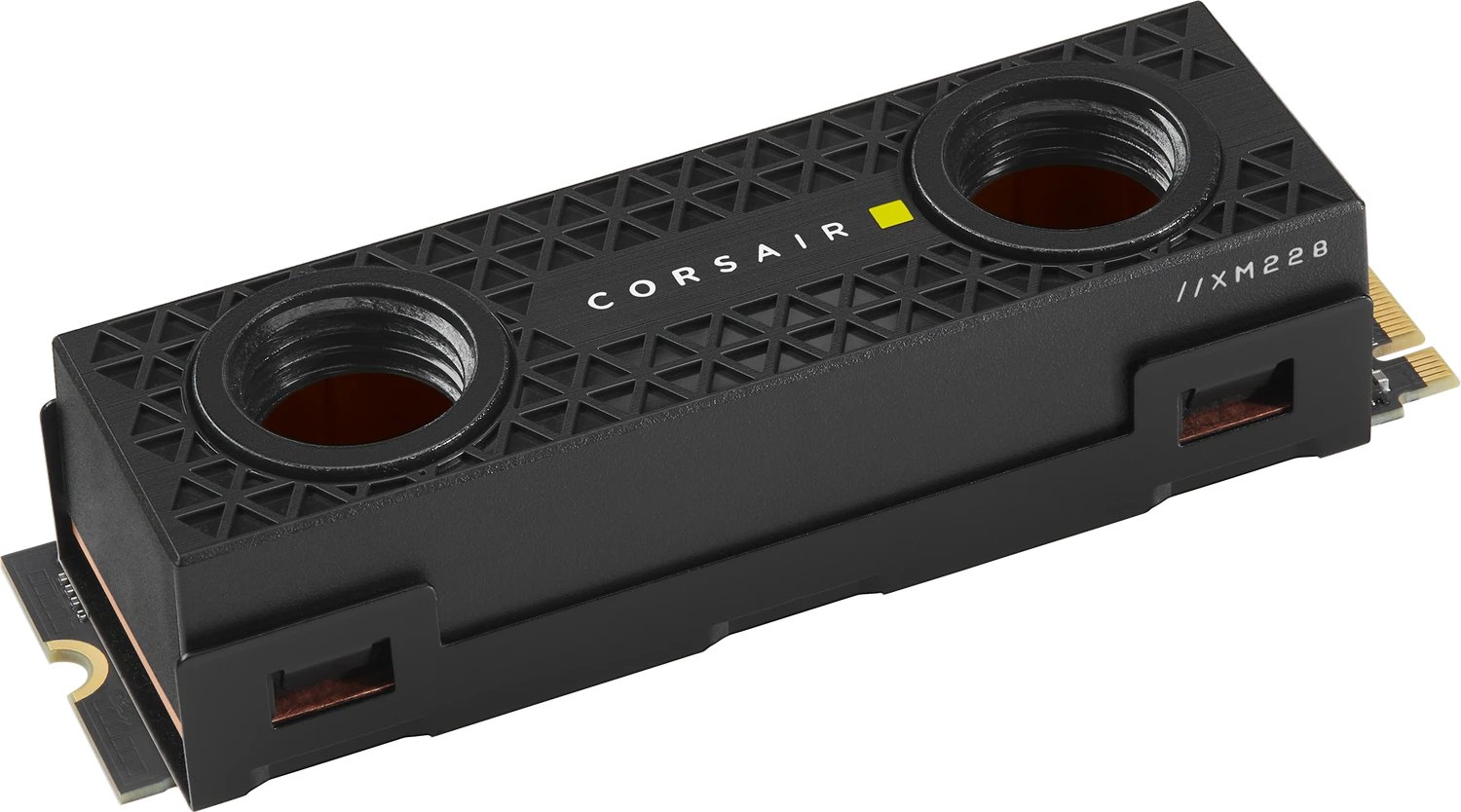

Corsair Force Series MP600 Pro Hydro X 2TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 2000 GB |
| Dimensions | 80x23x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7000 MB/s |
|---|---|
| Sequential Write | 6550 MB/s |
| 4K Read (IOPS) | 660K |
| 4K Write (IOPS) | 800K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR4 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 96 |
| Controller | Phison PS5018-E18 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 1,400 TB |
|---|---|
| MTBF | 1.7 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 15 mm |
| Heatsink Note | Water block (custom loop, needs water cooling); Dimensions include heatsink |
