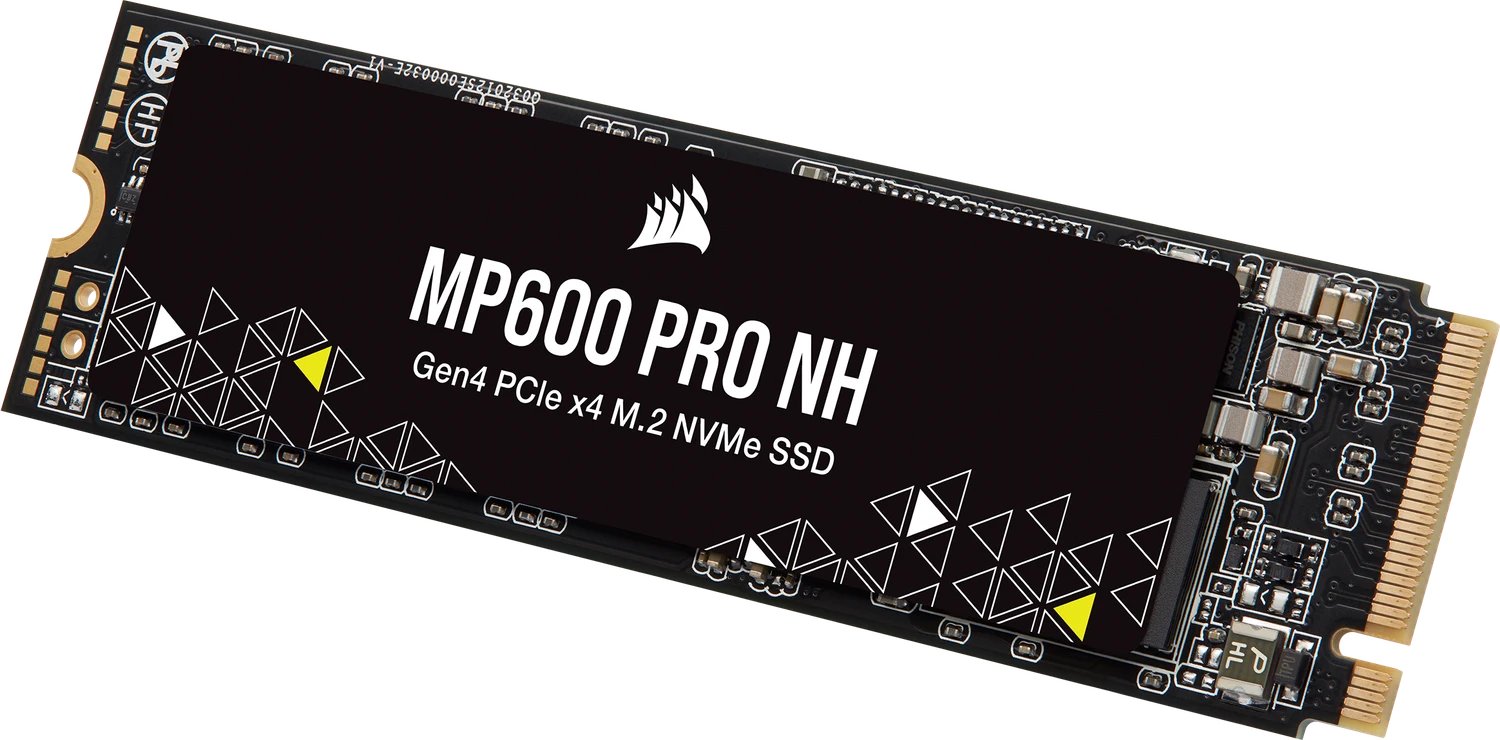

Corsair Force Series MP600 Pro NH 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x3mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7000 MB/s |
|---|---|
| Sequential Write | 5700 MB/s |
| 4K Read (IOPS) | 570K |
| 4K Write (IOPS) | 1,100K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR4 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 176 |
| Controller | Phison PS5018-E18 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 700 TB |
|---|---|
| MTBF | 1.6 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
