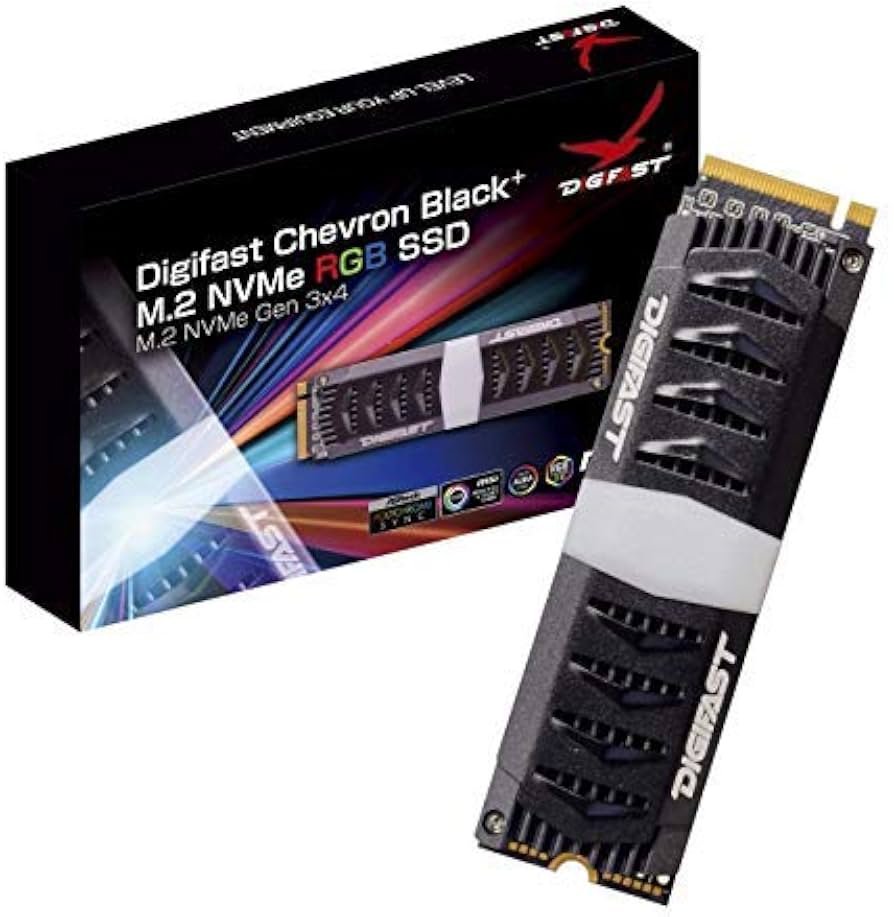

DIGIFAST Chevron 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3470 MB/s |
|---|---|
| Sequential Write | 3000 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DRAM presence not explicitly confirmed in available manufacturer materials; uses Phison PS5012-E12/E12C controller (a DRAM-based platform in most implementations, but not independently verified for this specific product) with Toshiba BiCS3 NAND. |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | Features an RGB LED shroud/heatsink controllable via motherboard RGB software (e.g., RGB Fusion 2.0); exact height in mm not published. |
