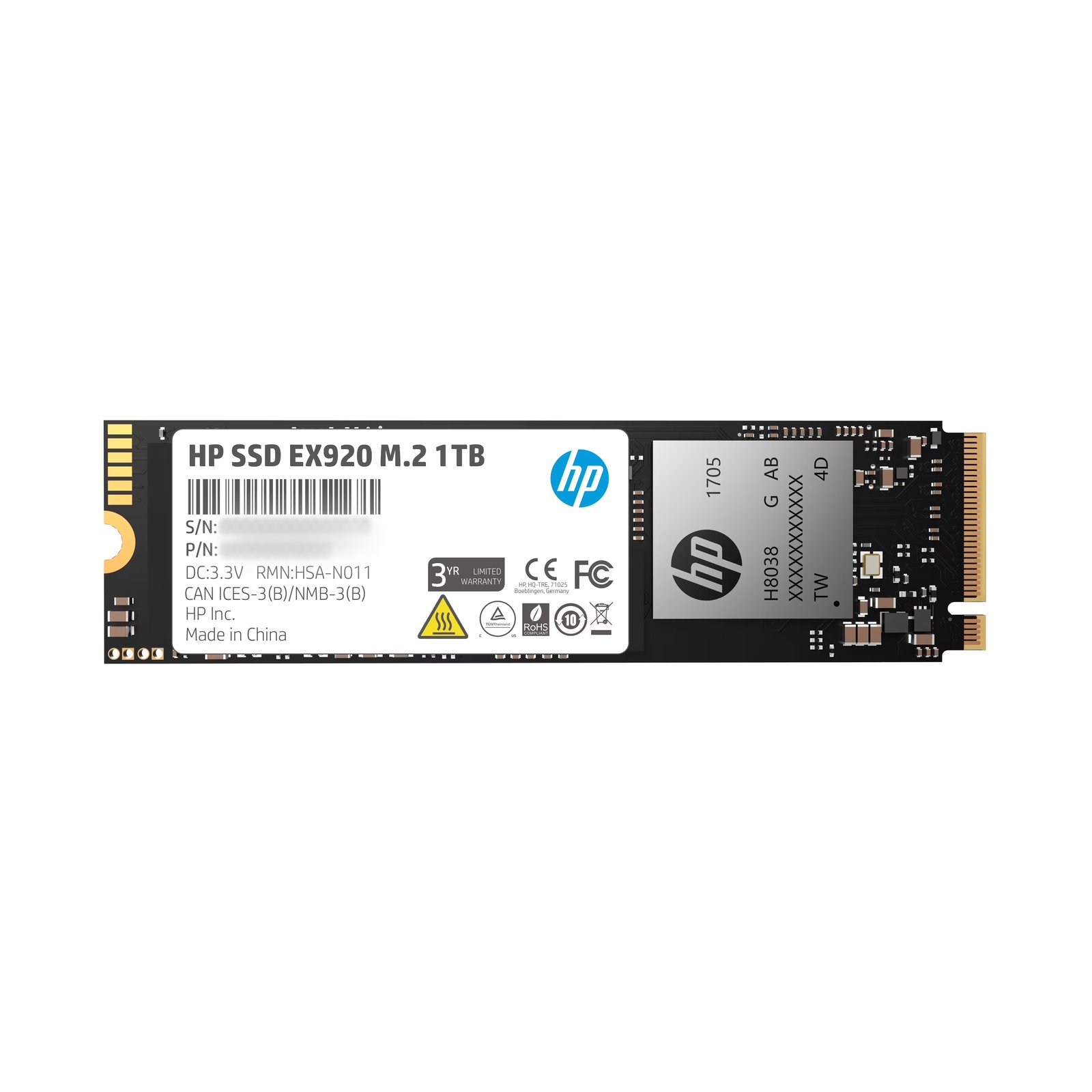

HP EX920 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3200 MB/s |
|---|---|
| Sequential Write | 1800 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 1024 MB |
| Cache Note | DRAM cache confirmed as 1GB (2x 512MB Nanya DDR3 chips, dual-DRAM design); uses Silicon Motion SM2262 controller with Micron 64-layer 3D TLC NAND. Drive manufactured by BIWIN under HP brand license. |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | No dedicated heatsink; controller covered only by a thin metal heat-spreader label. |
