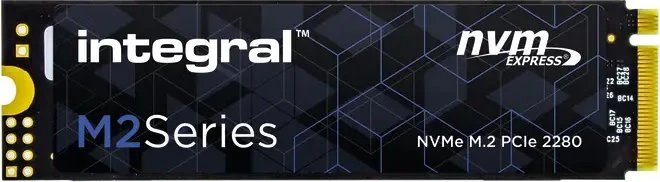

Integral M2 Series M.2 2280 PCIe NVMe SSD 256GB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 256 GB |
| Dimensions | 80x22x2.25mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3350 MB/s |
|---|---|
| Sequential Write | 1300 MB/s |
| 4K Read (IOPS) | 179K |
| 4K Write (IOPS) | 140K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| Controller | InnoGrit Shasta+/IG5216 |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 128 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 3 years |
Heatsink
| Heatsink | No |
|---|
