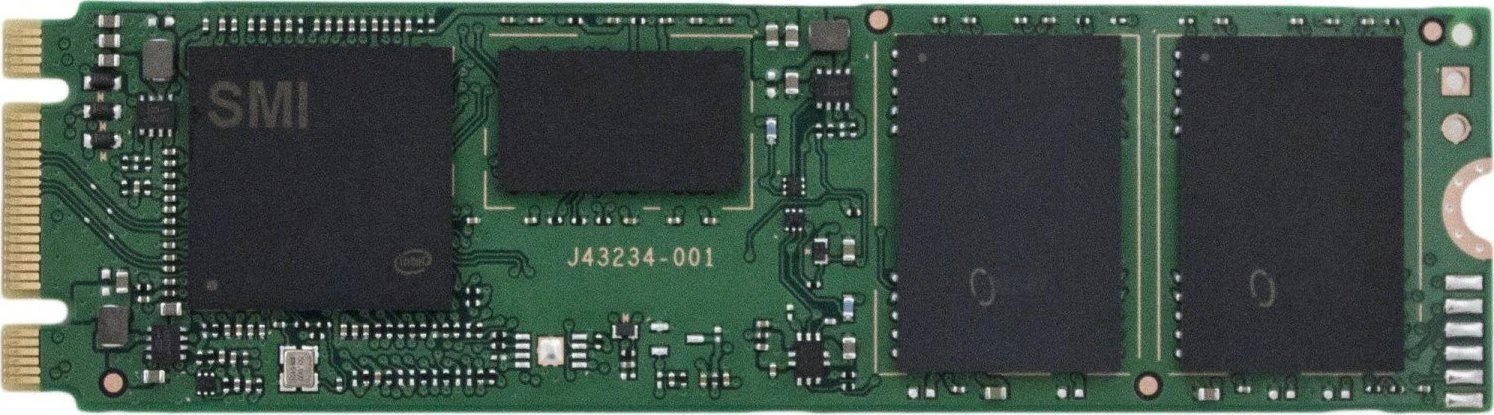

Intel SSD 545s 512GB M.2
SATA · AHCI · M.2 2280
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | M.2 2280 |
| Capacity | 512 GB |
| Dimensions | 80x22x3.5mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 550 MB/s |
|---|---|
| Sequential Write | 500 MB/s |
| 4K Read (IOPS) | 75K |
| 4K Write (IOPS) | 85K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | LPDDR3 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Intel |
| Controller | Silicon Motion SM2259 |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 288 TB |
|---|---|
| MTBF | 1.6 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
