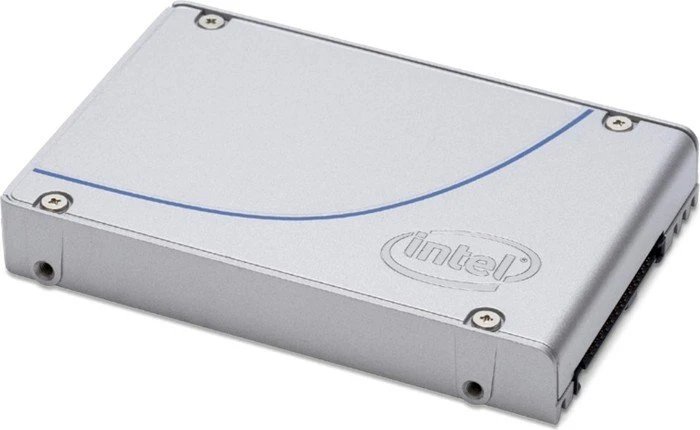

Intel SSD DC P3520 2TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | U.2 |
| Capacity | 2000 GB |
| Dimensions | 100x70x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 1700 MB/s |
|---|---|
| Sequential Write | 1350 MB/s |
| 4K Read (IOPS) | 375K |
| 4K Write (IOPS) | 26K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | MLC |
|---|---|
| NAND Maker | Micron |
| Controller | Intel CH29AE41AB1 |
| Controller Channels | 18 |
Endurance
| Endurance (TBW) | 2,490 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
