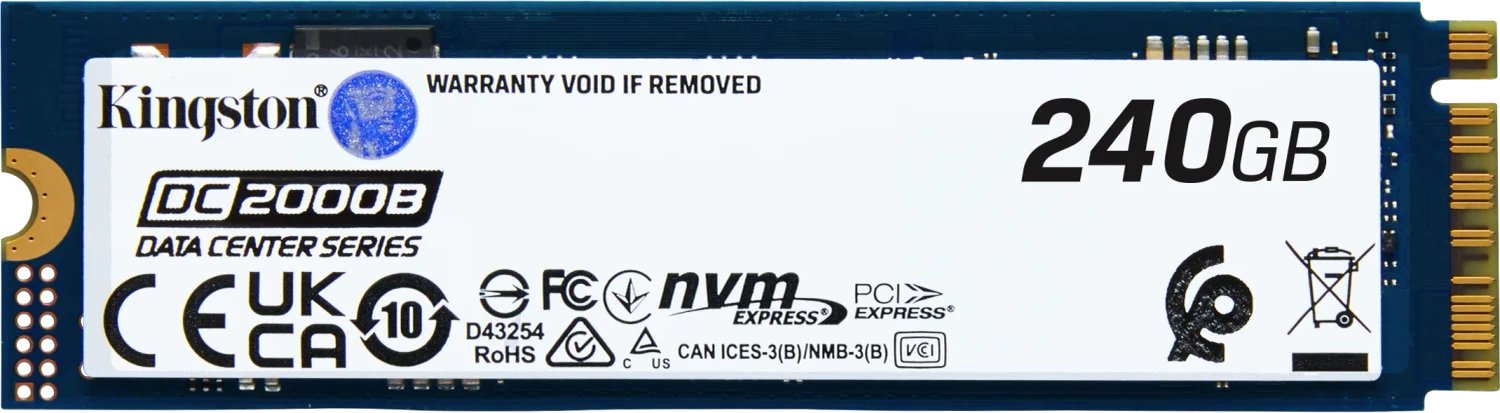

Kingston DC2000B Data Center Series Boot SSD - 0.4DWPD 240GB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 240 GB |
| Dimensions | 80x22x8.3mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 4500 MB/s |
|---|---|
| Sequential Write | 400 MB/s |
| 4K Read (IOPS) | 260K |
| 4K Write (IOPS) | 18K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR3L; Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 112 |
Endurance
| Endurance (TBW) | 175 TB |
|---|---|
| MTBF | 2 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 8.3 mm |
| Heatsink Note | Dimensions include heatsink |
