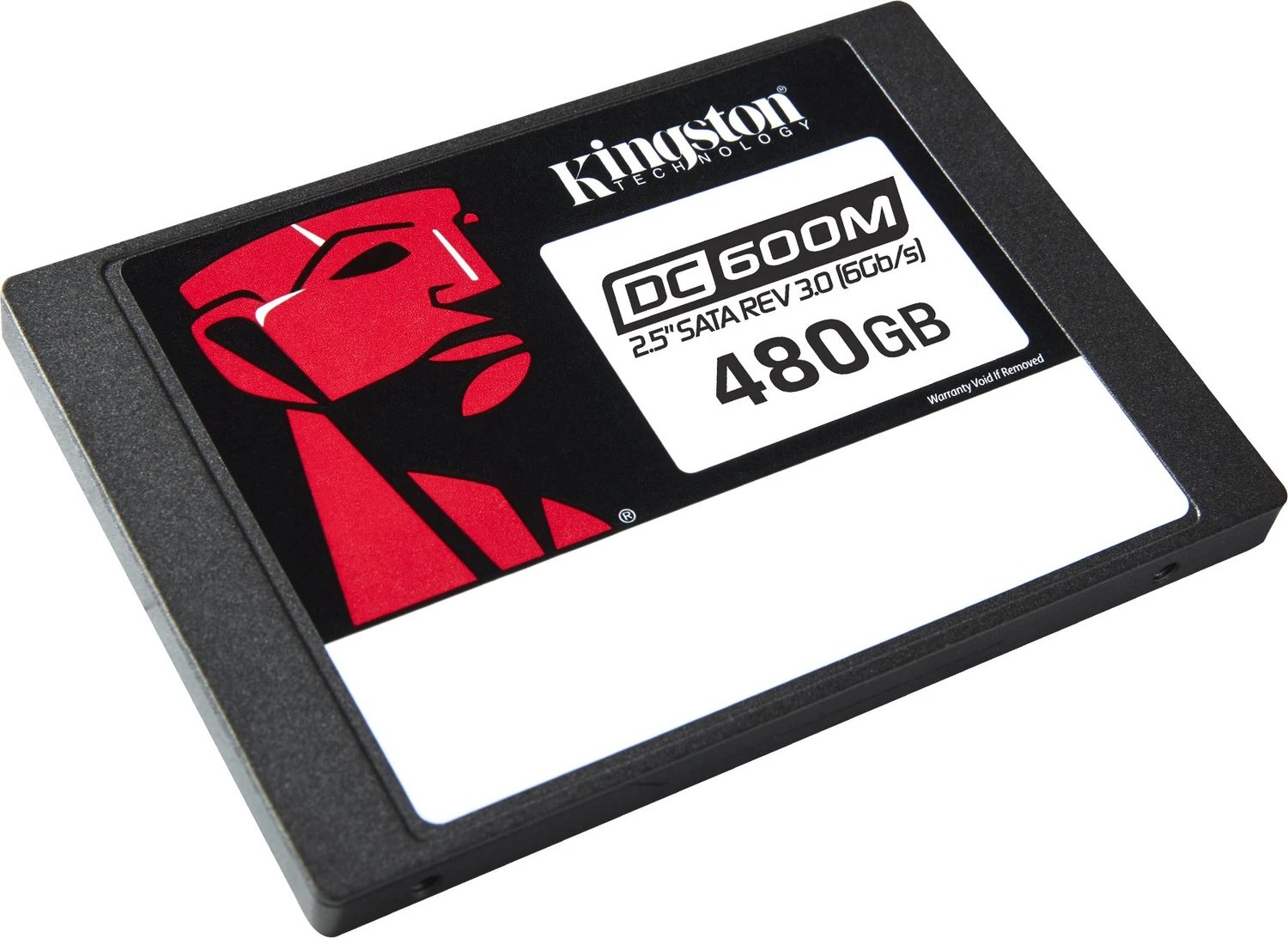

Kingston DC600M Data Center Series Mixed-Use SSD - 1DWPD 480GB
SATA · AHCI · 2.5"
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 480 GB |
| Dimensions | 100x69.9x7mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 560 MB/s |
|---|---|
| Sequential Write | 470 MB/s |
| 4K Read (IOPS) | 94K |
| 4K Write (IOPS) | 41K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR4-3200; Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 112 |
| Controller | Phison PS3112-S12 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 876 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
