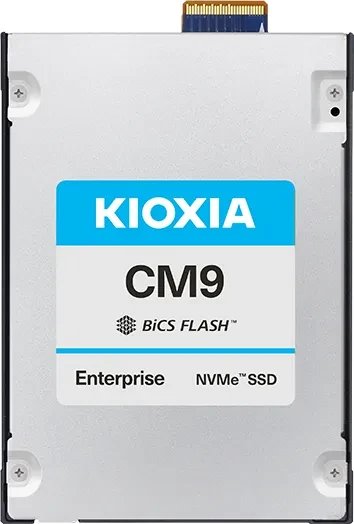

KIOXIA CM9-R Enterprise - 1DWPD Read Intensive SSD 15.36TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | 2.5" |
| Capacity | 15360 GB |
| Dimensions | 100.45x69.85x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 14800 MB/s |
|---|---|
| Sequential Write | 11000 MB/s |
| 4K Read (IOPS) | 3,400K |
| 4K Write (IOPS) | 540K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 218 |
| Controller | KIOXIA |
Endurance
| MTBF | 2.5 million hours |
|---|---|
| Encryption | Self Encrypting Drive (SED), OCP 2.5 |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
