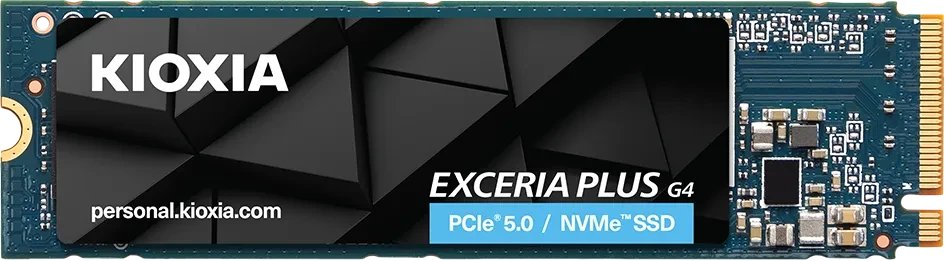

KIOXIA EXCERIA PLUS G4 SSD 1TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0c |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80.15x22.15x2.38mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 10000 MB/s |
|---|---|
| Sequential Write | 7900 MB/s |
| 4K Read (IOPS) | 1,300K |
| 4K Write (IOPS) | 1,400K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 218 |
| Controller | Phison PS5031-E31T |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 600 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
