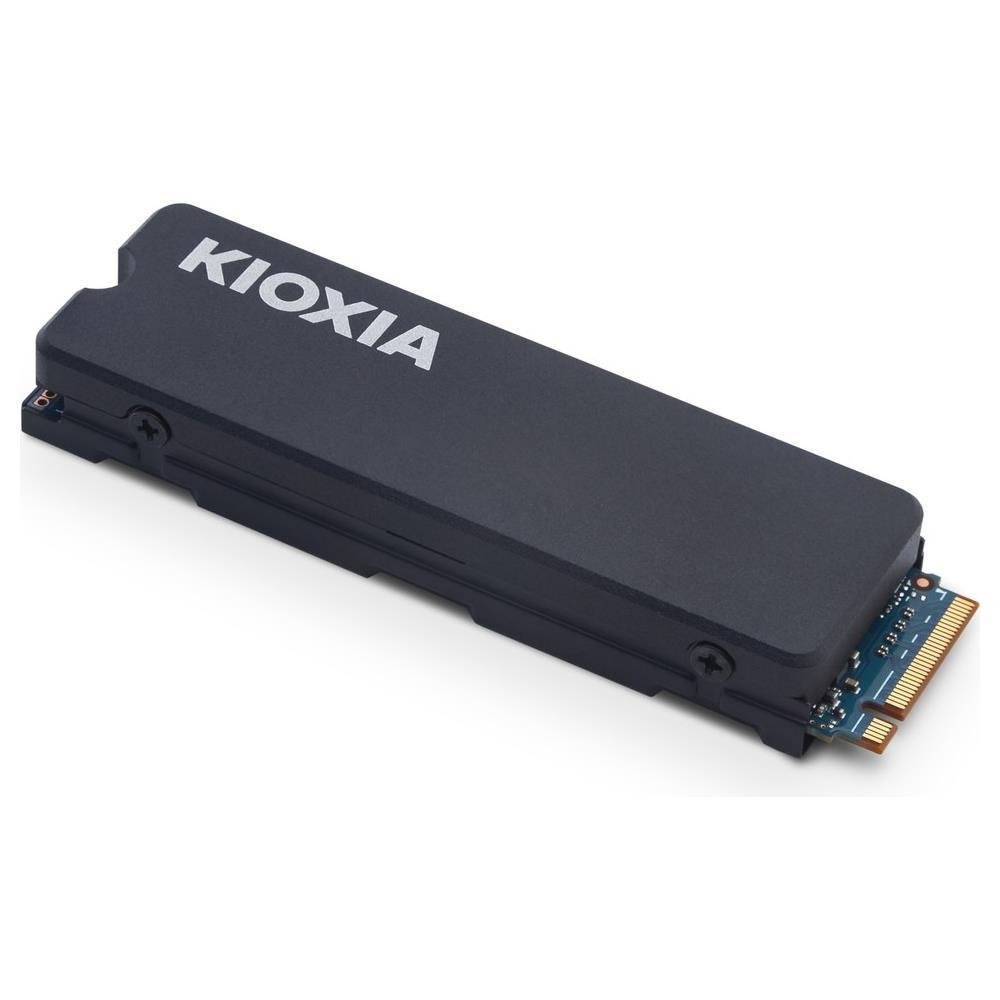

KIOXIA EXCERIA with Heatsink 1TB with Heatsink
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 6200 MB/s |
|---|---|
| Sequential Write | 4900 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | Samsung LPDDR4 DRAM |
NAND and Controller
| NAND Maker | Kioxia |
|---|---|
| NAND Layers | 96 |
| Controller | InnoGrit IG5236 |
Endurance
| Endurance (TBW) | 600 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | Ships with a factory-installed heatsink; explicitly marketed as PS5-compatible with advanced heat dissipation. |
