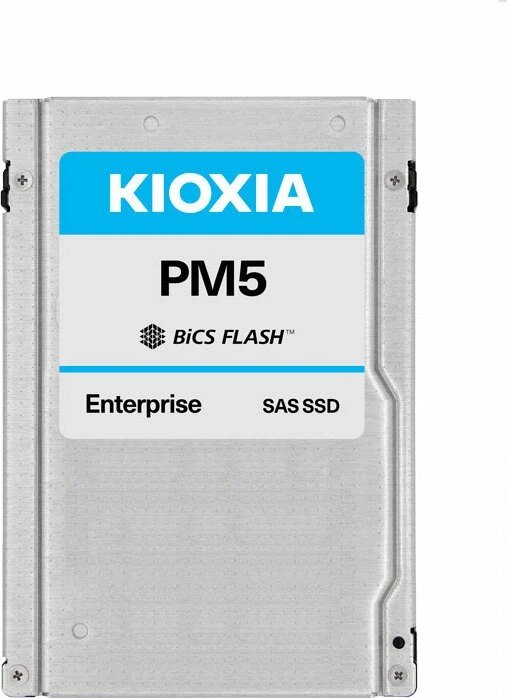

KIOXIA PM5-R Enterprise - 1DWPD Read Intensive SSD 15.36TB
SAS · AHCI · 2.5"
General
| Interface | SAS |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 15360 GB |
| Dimensions | 100x70x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 2100 MB/s |
|---|---|
| Sequential Write | 2100 MB/s |
| 4K Read (IOPS) | 300K |
| 4K Write (IOPS) | 35K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Toshiba/WD |
| NAND Layers | 64 |
Endurance
| Endurance (TBW) | 28,030 TB |
|---|---|
| MTBF | 2.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
