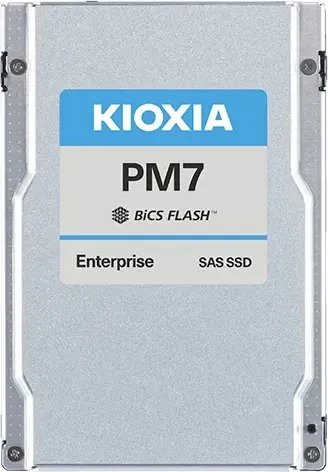

KIOXIA PM7-R Enterprise - 1DWPD Read Intensive SSD 30.72TB
SAS · AHCI · 2.5"
General
| Interface | SAS |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 30720 GB |
| Dimensions | 100x70x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 4150 MB/s |
|---|---|
| Sequential Write | 3200 MB/s |
| 4K Read (IOPS) | 720K |
| 4K Write (IOPS) | 80K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 112 |
Endurance
| Endurance (TBW) | 56,000 TB |
|---|---|
| MTBF | 2.5 million hours |
| Encryption | 256bit AES, TCG Enterprise |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
