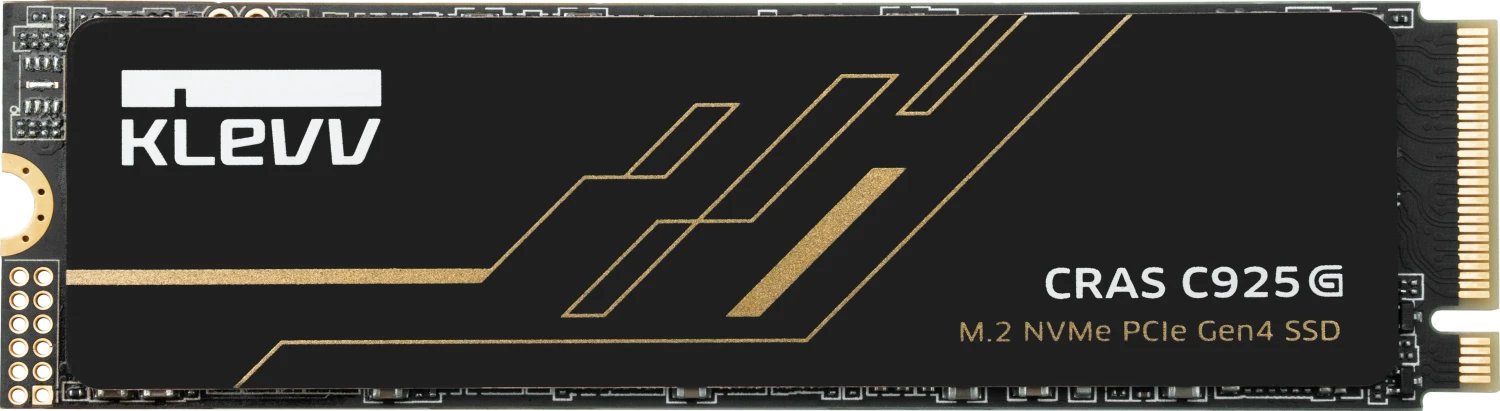

KLEVV Cras C925G 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x2.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7400 MB/s |
|---|---|
| Sequential Write | 6300 MB/s |
| 4K Read (IOPS) | 670K |
| 4K Write (IOPS) | 980K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | SK hynix |
| NAND Layers | 238 |
| Controller | Maxiotek MAP1602A |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 1,200 TB |
|---|---|
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | Graphene heatspreader label (not a heatsink) |
