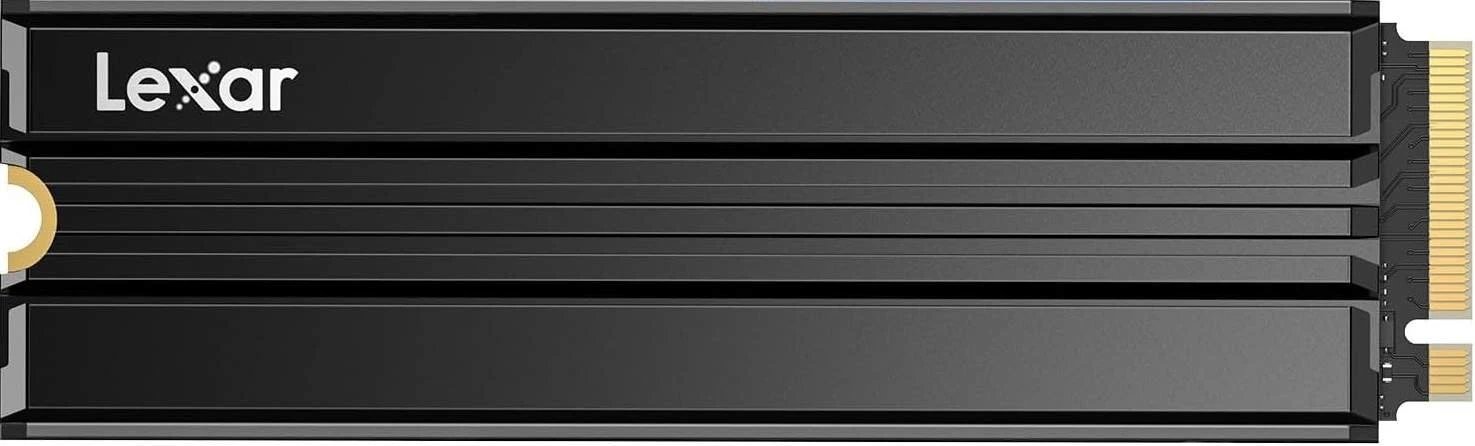

Lexar NM790 1TB with Heatsink
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x24x9.7mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7400 MB/s |
|---|---|
| Sequential Write | 6500 MB/s |
| 4K Read (IOPS) | 1,000K |
| 4K Write (IOPS) | 900K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | YMTC |
| NAND Layers | 232 |
| Controller | Maxiotek MAP1602A |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 1,000 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 9.7 mm |
| Heatsink Note | Dimensions include heatsink |
