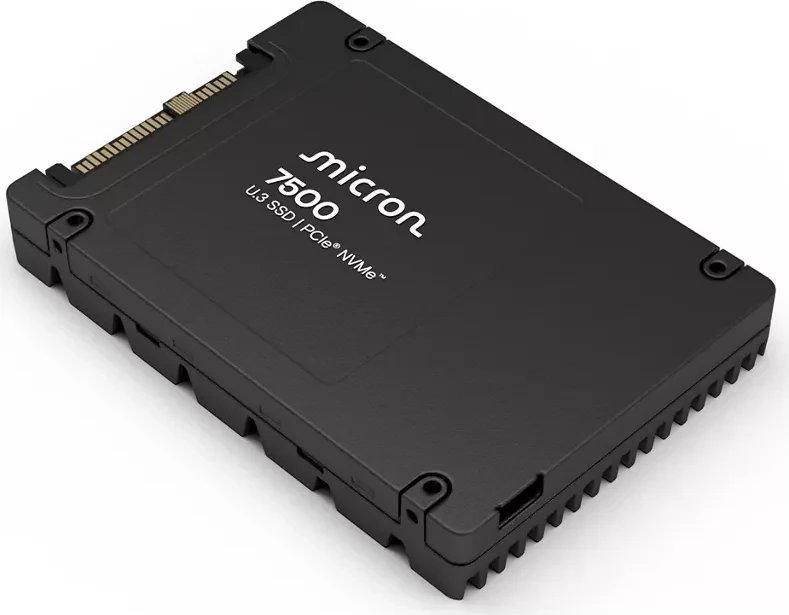

Micron 7500 PRO - 1DWPD Read-Intensive 7.68TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0b |
| Form Factor | U.3 |
| Capacity | 7680 GB |
| Dimensions | 100.45x70.1x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7000 MB/s |
|---|---|
| Sequential Write | 5900 MB/s |
| 4K Read (IOPS) | 1,100K |
| 4K Write (IOPS) | 215K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 232 |
Endurance
| Endurance (TBW) | 14,016 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES, TCG Opal 2.01 |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 15 mm |
| Heatsink Note | Dimensions include heatsink |
