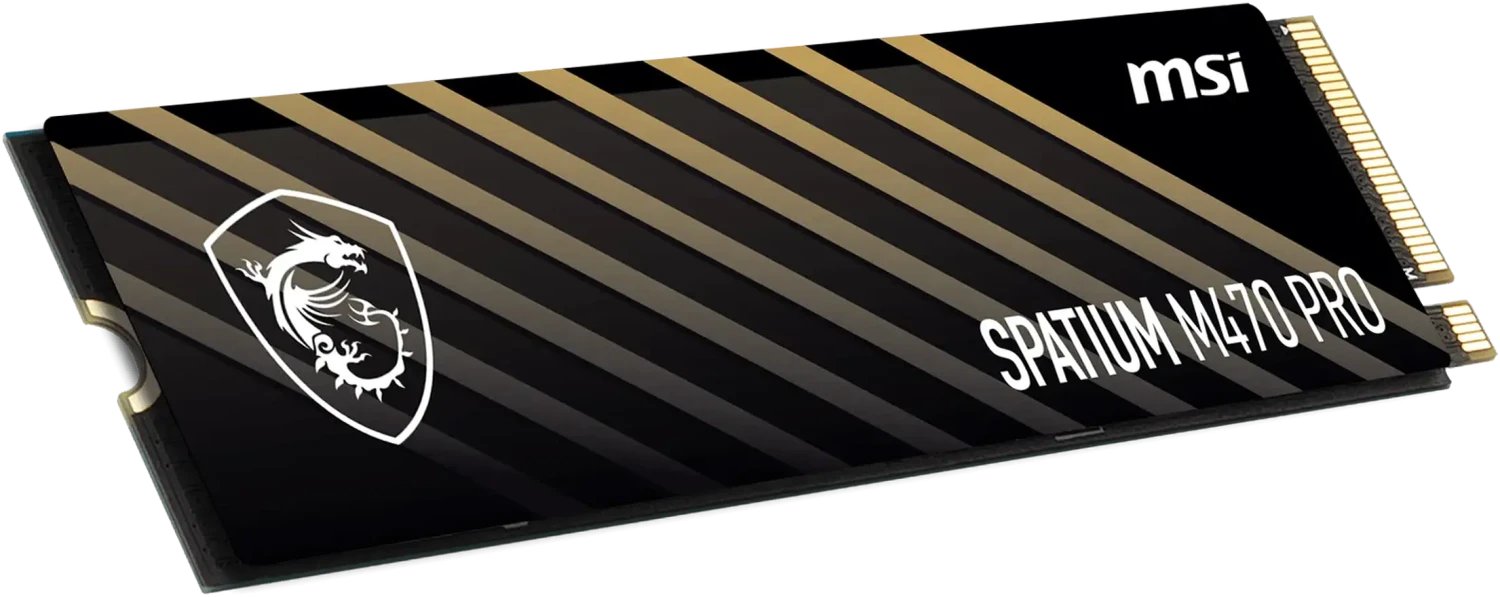

MSI Spatium M470 Pro 500GB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 500 GB |
| Dimensions | 80x22x2.15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 5500 MB/s |
|---|---|
| Sequential Write | 3600 MB/s |
| 4K Read (IOPS) | 500K |
| 4K Write (IOPS) | 900K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| Controller | Phison PS5027-E27T |
|---|---|
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 160 TB |
|---|---|
| MTBF | 1.5 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
