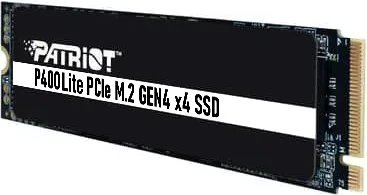

Patriot P400 Lite 500GB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 500 GB |
| Dimensions | 80x22x3.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3500 MB/s |
|---|---|
| Sequential Write | 2400 MB/s |
| 4K Read (IOPS) | 220K |
| 4K Write (IOPS) | 500K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | SK hynix |
| NAND Layers | 128 |
| Controller | Realtek RTS5772 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 280 TB |
|---|---|
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | Thin heatspreader label (not a heatsink) |
