Plextor M10PG 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7000 MB/s |
|---|---|
| Sequential Write | 5000 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DRAM cache present per manufacturer; exact chip capacity in MB not published. Uses InnoGrit IG5636 "Rainer" 8-channel controller with Kioxia 3D TLC NAND. |
Heatsink
| Heatsink | Yes |
|---|---|

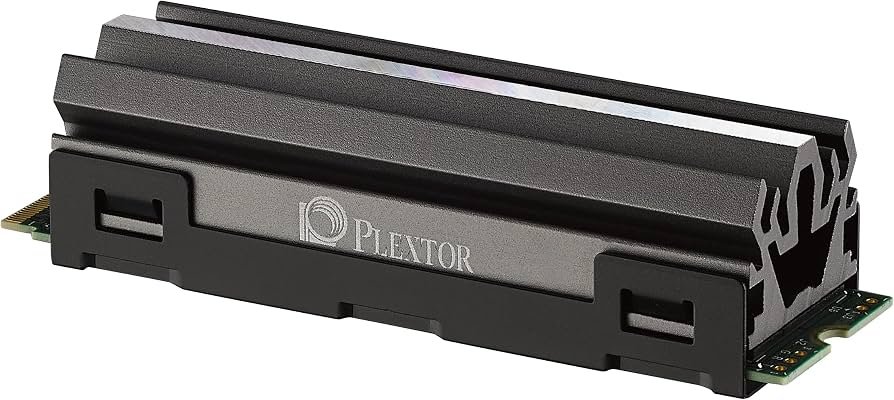

| Heatsink Note | Ships with a large factory-installed aluminum radiator/heatsink (the "G" suffix denotes the heatsinked variant; a heatsink-less "M10PGN" and an HHHL add-in-card "M10PY" with RGB also exist). |
