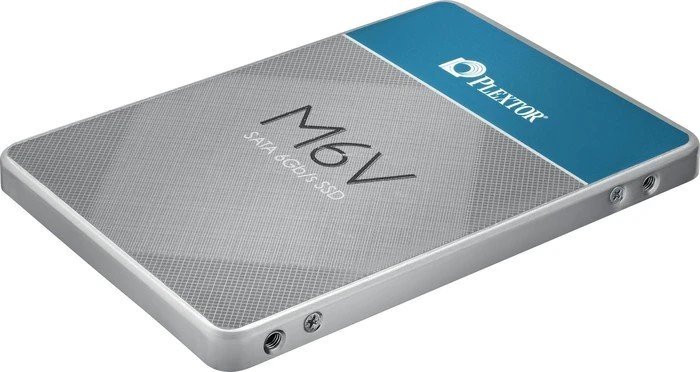

Plextor M6V 256GB
SATA · AHCI · 2.5"
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 256 GB |
| Dimensions | 100x70x6.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 535 MB/s |
|---|---|
| Sequential Write | 335 MB/s |
| 4K Read (IOPS) | 83K |
| 4K Write (IOPS) | 80K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 256 MB |
| Cache Note | DDR3 |
NAND and Controller
| NAND Type | MLC |
|---|---|
| NAND Maker | Toshiba/WD |
| Controller | Silicon Motion SM2246EN |
| Controller Channels | 4 |
Endurance
| MTBF | 1.5 million hours |
|---|---|
| Warranty | 3 years |
Heatsink
| Heatsink | No |
|---|
