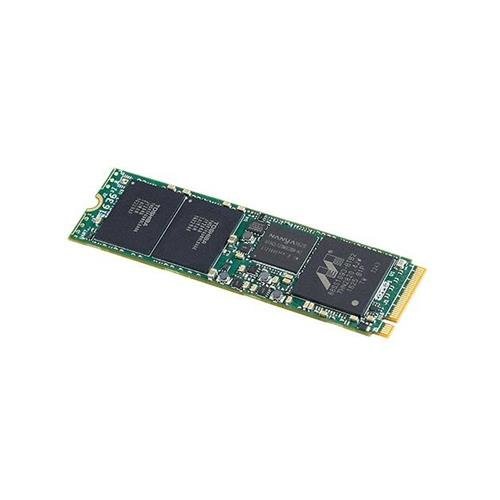

Plextor M8Se 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 2450 MB/s |
|---|---|
| Sequential Write | 1000 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DRAM cache present per manufacturer/multiple reviews; uses Marvell 88SS1093 controller with Toshiba TLC NAND. |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | This entry is the "GN" (M.2 2280, no heatsink) variant, ideal for notebooks; a heatsinked "G" variant and HHHL add-in-card "Y" variant were also sold at the same rated performance. |
