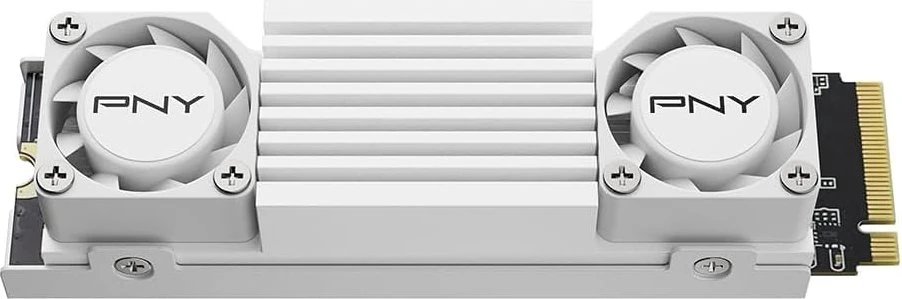

PNY CS3150 White 2TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | M.2 2280 |
| Capacity | 2000 GB |
| Dimensions | 76x23.5x17.5mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 12500 MB/s |
|---|---|
| Sequential Write | 11000 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 4096 MB |
| Cache Note | LPDDR4-4266 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 232 |
| Controller | Phison PS5026-E26 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 1,400 TB |
|---|---|
| MTBF | 1.6 million hours |
| Encryption | 256bit AES, TCG Opal 2.0 |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 17.5 mm |
| Heatsink Note | Heatsink with active fan; Removable heatsink (pre-installed); Dimensions include heatsink |
