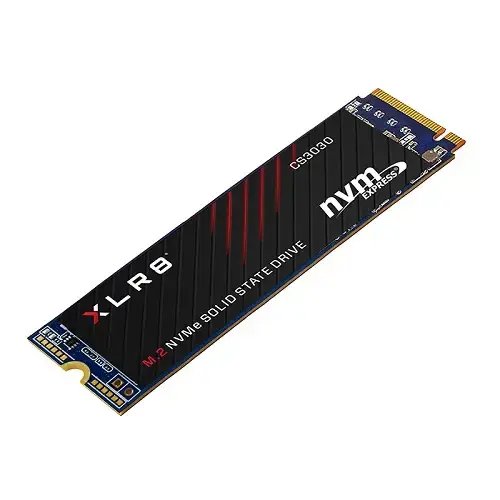

PNY XLR8 CS3030 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3500 MB/s |
|---|---|
| Sequential Write | 3000 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DRAM cache confirmed as LPDDR3/LPDDR4; uses Phison PS5012-E12 controller with Toshiba 64-layer TLC NAND. Endurance rated at only 192 TBW for this capacity, notably lower than some competitors on the same controller platform. |
Heatsink
| Heatsink | No |
|---|---|
| Heatsink Note | No factory heatsink confirmed. |
