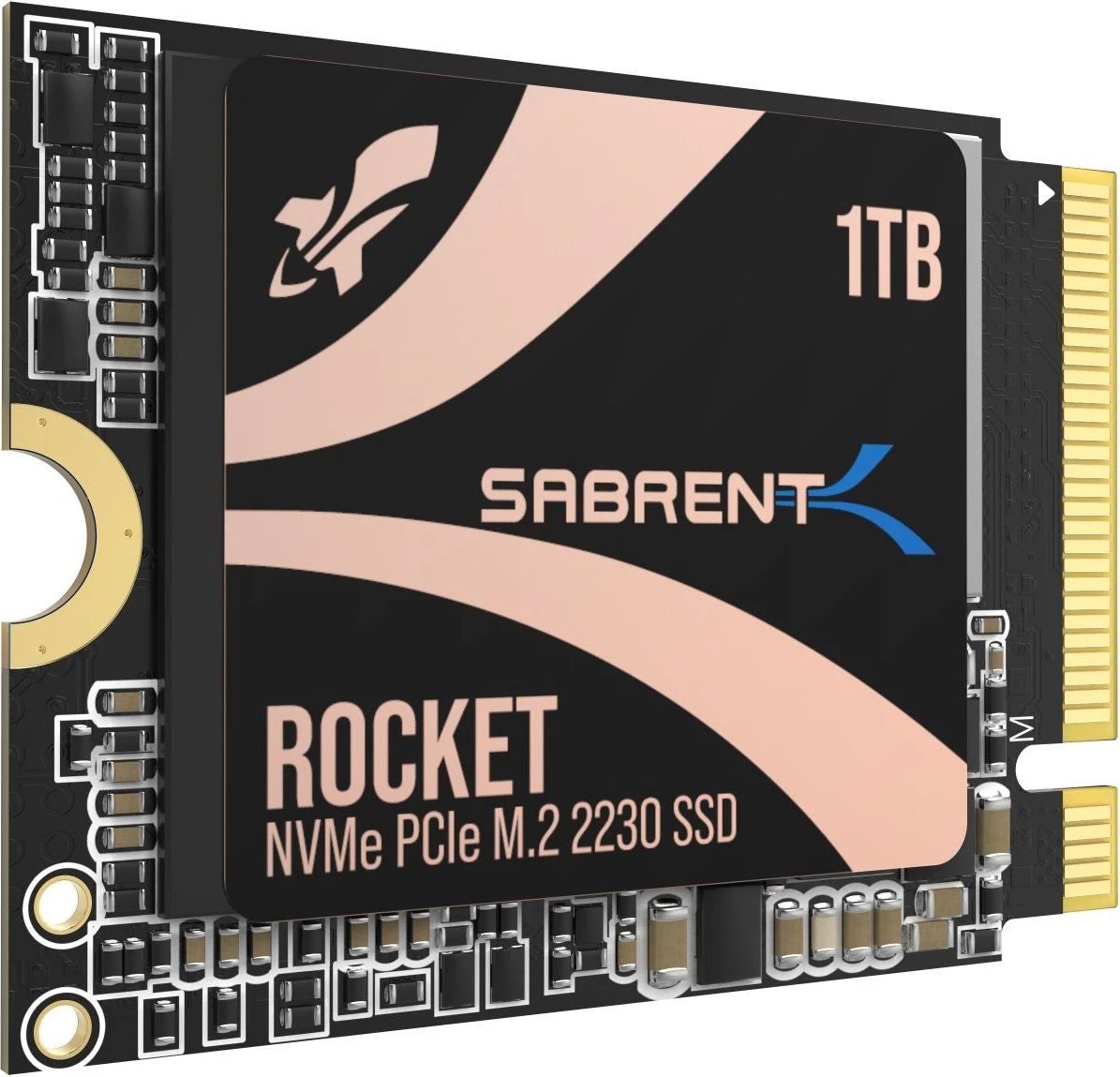

Sabrent Rocket 2230 1TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2230 |
| Capacity | 1000 GB |
| Dimensions | 30x22x2.15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 4750 MB/s |
|---|---|
| Sequential Write | 4300 MB/s |
| 4K Read (IOPS) | 450K |
| 4K Write (IOPS) | 545K |
| DRAM Cache | No |
| Cache Type | HMB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 176 |
| Controller | Phison PS5021-E21T |
| Controller Channels | 4 |
Endurance
| Endurance (TBW) | 600 TB |
|---|---|
| MTBF | 1.5 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
