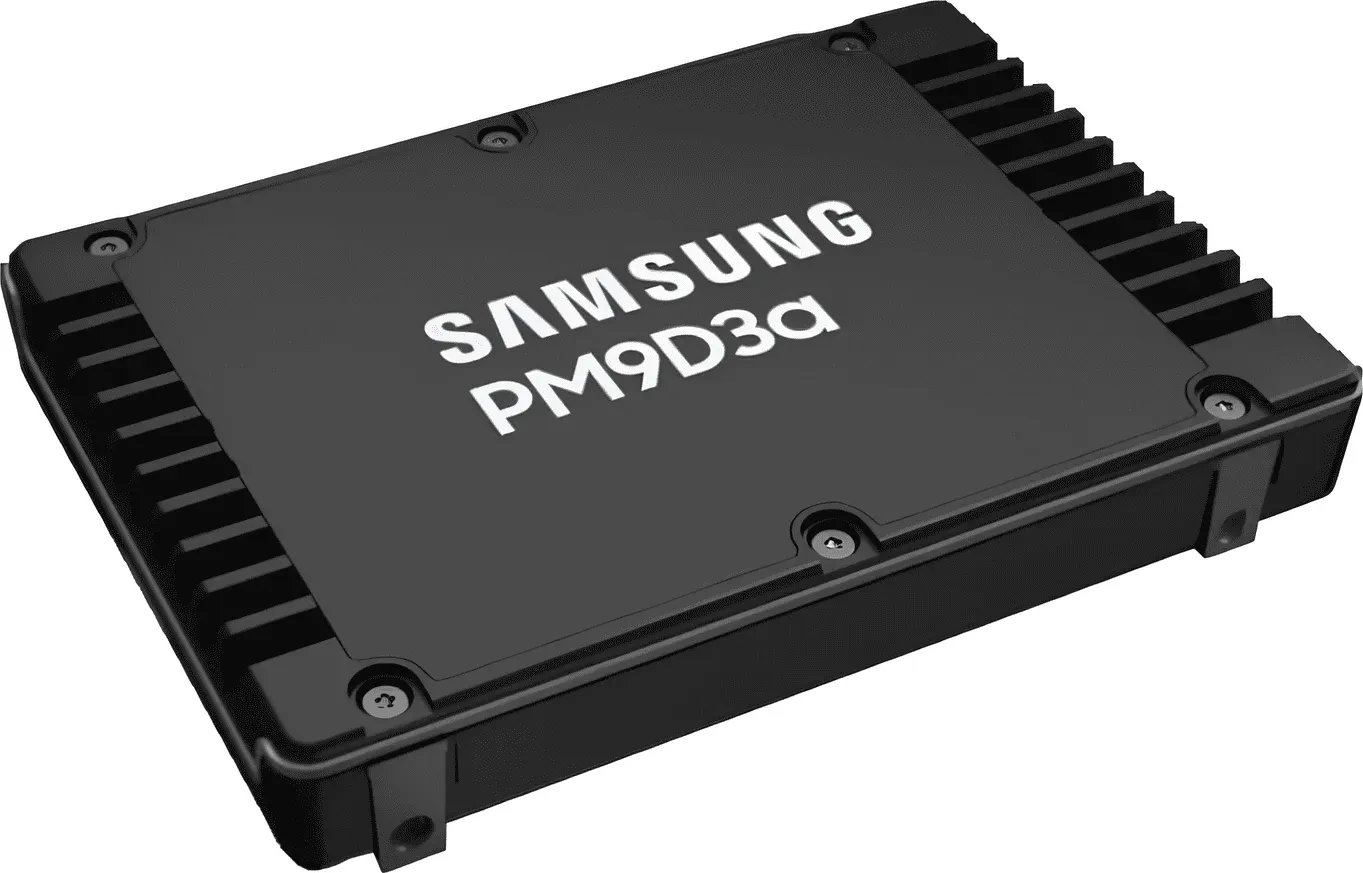

Samsung OEM Datacenter SSD PM9D3a 15.36TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | U.2 |
| Capacity | 15360 GB |
| Dimensions | 100x70x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 12000 MB/s |
|---|---|
| Sequential Write | 6800 MB/s |
| 4K Read (IOPS) | 2,000K |
| 4K Write (IOPS) | 400K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Samsung |
| NAND Layers | 236 |
| Controller | Samsung |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 28,032 TB |
|---|---|
| MTBF | 2.5 million hours |
| Encryption | 256bit AES, TCG Opal 2.02 |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
