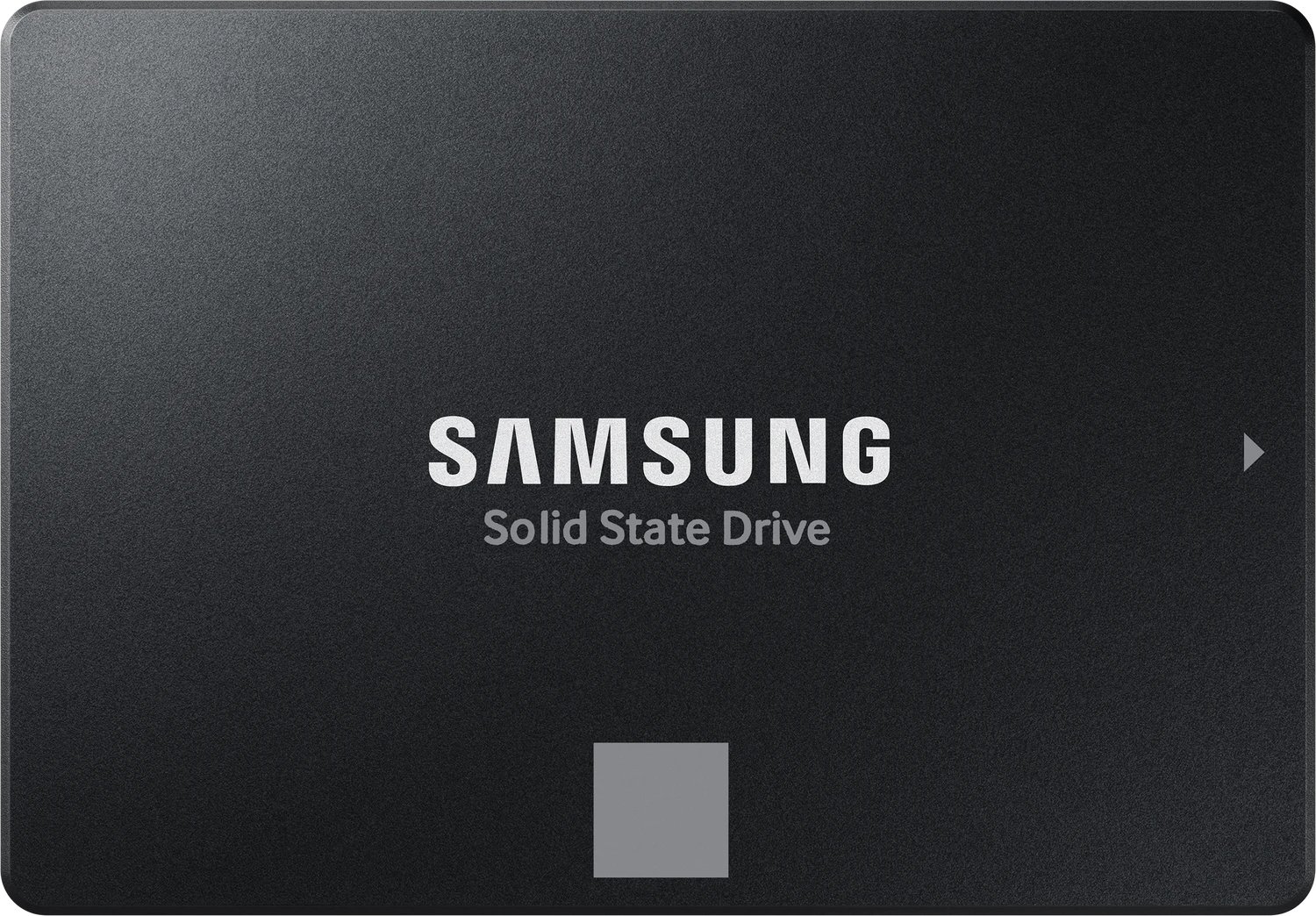

Samsung SSD 870 EVO 4TB
SATA · AHCI · 2.5"
General
| Interface | SATA |
|---|---|
| Protocol | AHCI |
| Form Factor | 2.5" |
| Capacity | 4000 GB |
| Dimensions | 100x70x6.8mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 560 MB/s |
|---|---|
| Sequential Write | 530 MB/s |
| 4K Read (IOPS) | 98K |
| 4K Write (IOPS) | 88K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 4096 MB |
| Cache Note | LPDDR4; Dynamic SLC cache 6-78GB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Samsung |
| NAND Layers | 128 |
| Controller | Samsung MKX |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 2,400 TB |
|---|---|
| MTBF | 1.5 million hours |
| Encryption | 256bit AES, TCG Opal 2.0, Microsoft eDrive |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
